5

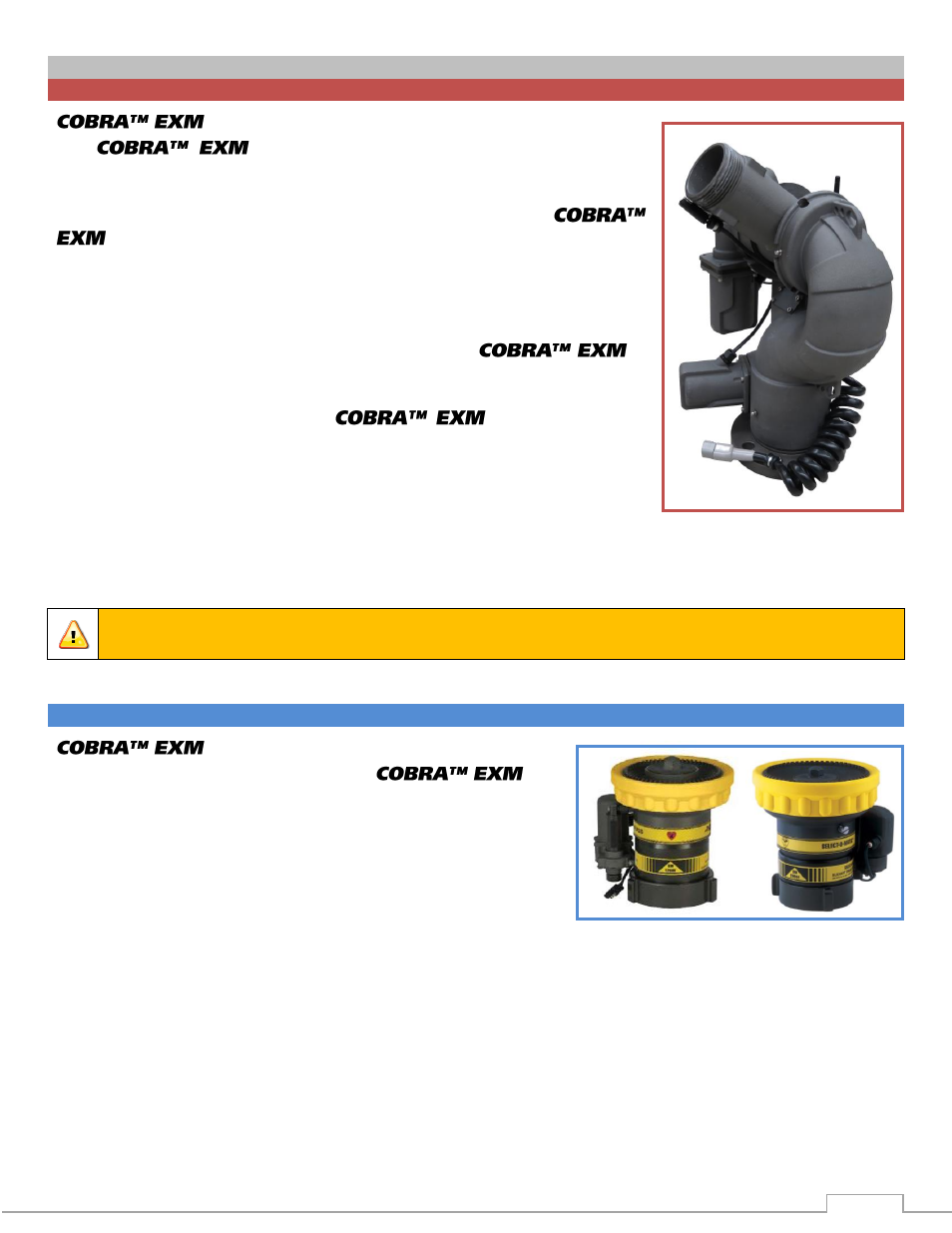

SYSTEM COMPONENTS
MONITOR
Monitor – 7200
The monitor is specially designed to be compact
providing a greatly reduced swing radius. Unique waterway swivel joints
utilize stainless steel thrust rods, and needle roller thrust bearings, for
unprecedented durability in a range of applications. The
utilizes a cast vaned waterway to minimize large-scale
turbulence. The monitor can be controlled by hardwired input devices
via CAN bus or by an optional upgraded Radio Frequency (RF) device.
The monitor may be powered with 12 or 24 volts.
Several base options are available for use with the
including a 3” flange, DN80-PN16 flange, 4” flange, 3” female NPT,
and 3” female BSPT. The discharge may be ordered with either a
2.5” NHT or BSPP thread. The comes standard
with permanent magnet DC gear motors but may be upgraded with
high power, permanent magnet variable speed DC gear motors.
Both motor options are sealed to NEMA 4 for use in harsh
environments.
7200 SD – Standard Duty Motors
7200 HD – Heavy Duty Motors
Caution:
All EXM monitor motors are 12VDC. If using a non-EXM nozzle, another
12VDC nozzle should be used, or nozzle control may not function properly.
NOZZLE
Nozzles –
There are two nozzles available for the .
SM-1000E & SM-1250E
Each nozzle automatically adjusts to maintain effective stream
and maximum reach at variable flows. These nozzles have
been calibrated to work at lower pressures, from 75 to 80
PSI, to better suit real world conditions.
SM-1000E; 350 GPM @ 65 PSI - 1000 GPM @ 75 PSI
1325 LPM @ 4.48 BAR – 3785 LPM @ 5.17 BAR
SM-1250E; 350 GPM @ 50 PSI - 1250 GPM @ 75 PSI
1325 LPM @ 3.45 BAR – 4731 LPM @ 5.17 BAR
SM-1000E (P/N: 03781501) &
SM-1250E (P/N 03781211)
Standard 7200 EXM Monitor
(00007201)
