Page 25
25

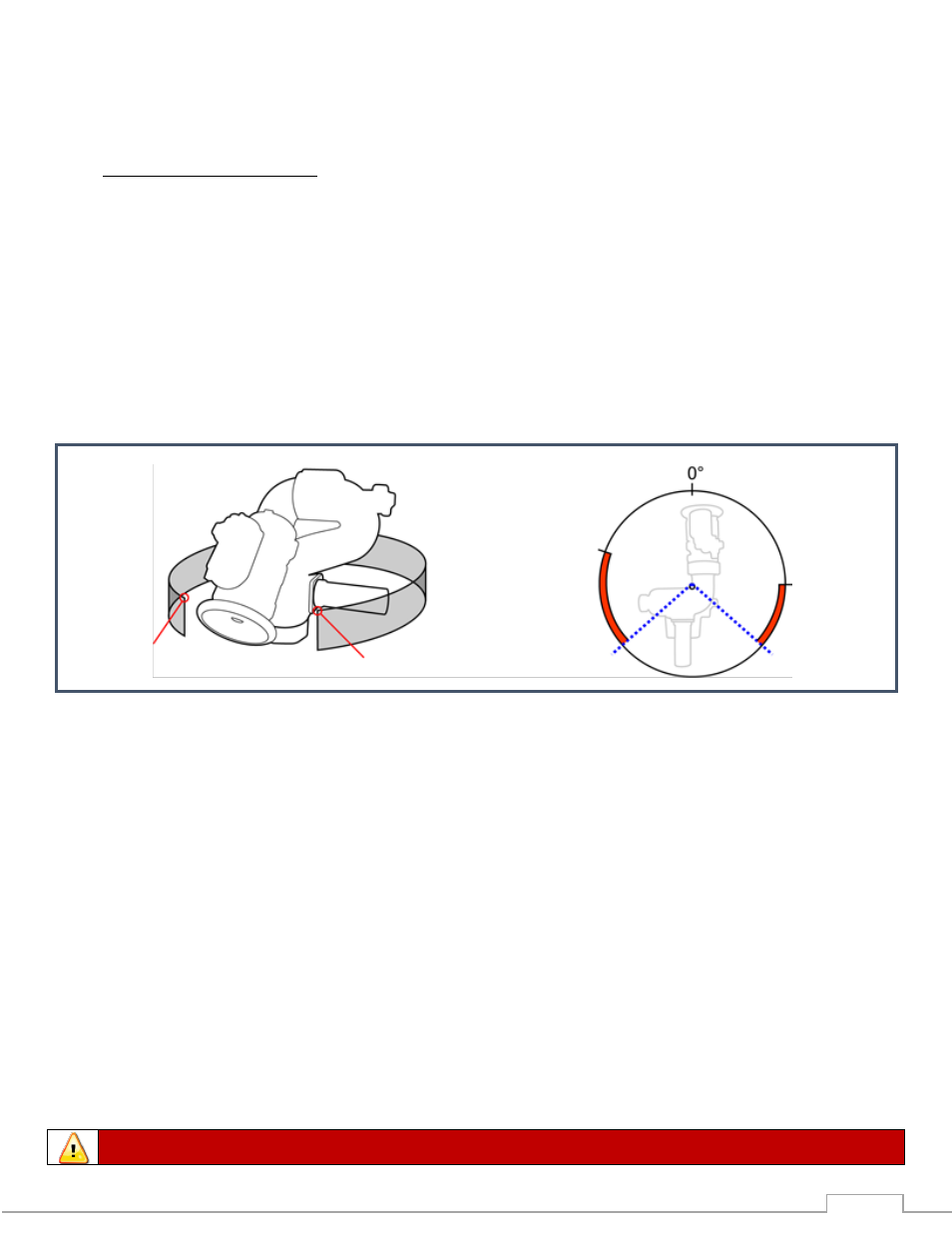

Figure 1: Keep-Out Zones
o
Hold the PRESET button, then press the OPEN button, and then release both.
o
When the EXM system is taken out of Setup Mode, the monitor will be prevented from
moving below and to the right of this point.
Lower-Left Keep-Out Zone - The Left Keep-Out Zone will prevent the monitor from moving down
and to the left into a specified zone (reference figure 1)
o
Put the EXM system into Setup Mode (reference Part B of the Operating Instructions section)
o
Move the monitor to the top right corner of the keep out zone
o
The Keep-Out Zone should be set within the previously set monitor calibration points. If a
Keep-Out Zone is set outside the intended operating area, operation of the monitor may be
unpredictable.
o
Hold the PRESET button, the press the CLOSE button, and then release both.
o
When the EXM system is taken out of Setup Mode, the monitor will be prevented from
moving below and to the left of this point
G. Stow Position
The Stow Position is a preset position that can be used to bring the monitor into a position suitable for
when the system is powered off. A stow position must be within the allowed travel area defined by any
travel limits or keep-out zones, therefore it is recommended that travel limits and keep-out zones are
set before setting a stow position.
Move the monitor to the desired position while in normal operation; not in setup mode. If a travel
limit or keep-out zone boundary is met, move the discharge off the boundary a short distance.
Put the EXM system into Setup Mode (reference Part B of the Operating Instructions section)
Press the FOG and OSCILLATE buttons at the same time (rotate thumbwheel down for FOG on
Joystick)
This position will be the Stow Position when the system is brought out of Setup Mode
Simply press and hold the FOG and OSCILLATE buttons for three seconds to put the monitor into
the Stow Position while outside of Setup Mode (rotate thumbwheel down for FOG on Joystick)
Warning!
Water SHOULD NOT be flowing while stowing the monitor.
Lower Right Zone:
Top left corner
Lower Left Zone:
Top right corner
Lower Left
Zone
Left Travel Limit
Lower Right
Zone
Right Travel Limit
