Chapter 2: Installation
6 TruVision DVR 30 User Manual
Back panel overview
Figure 1 below shows the back panel controls and connectors on a typical TruVision
DVR 30.

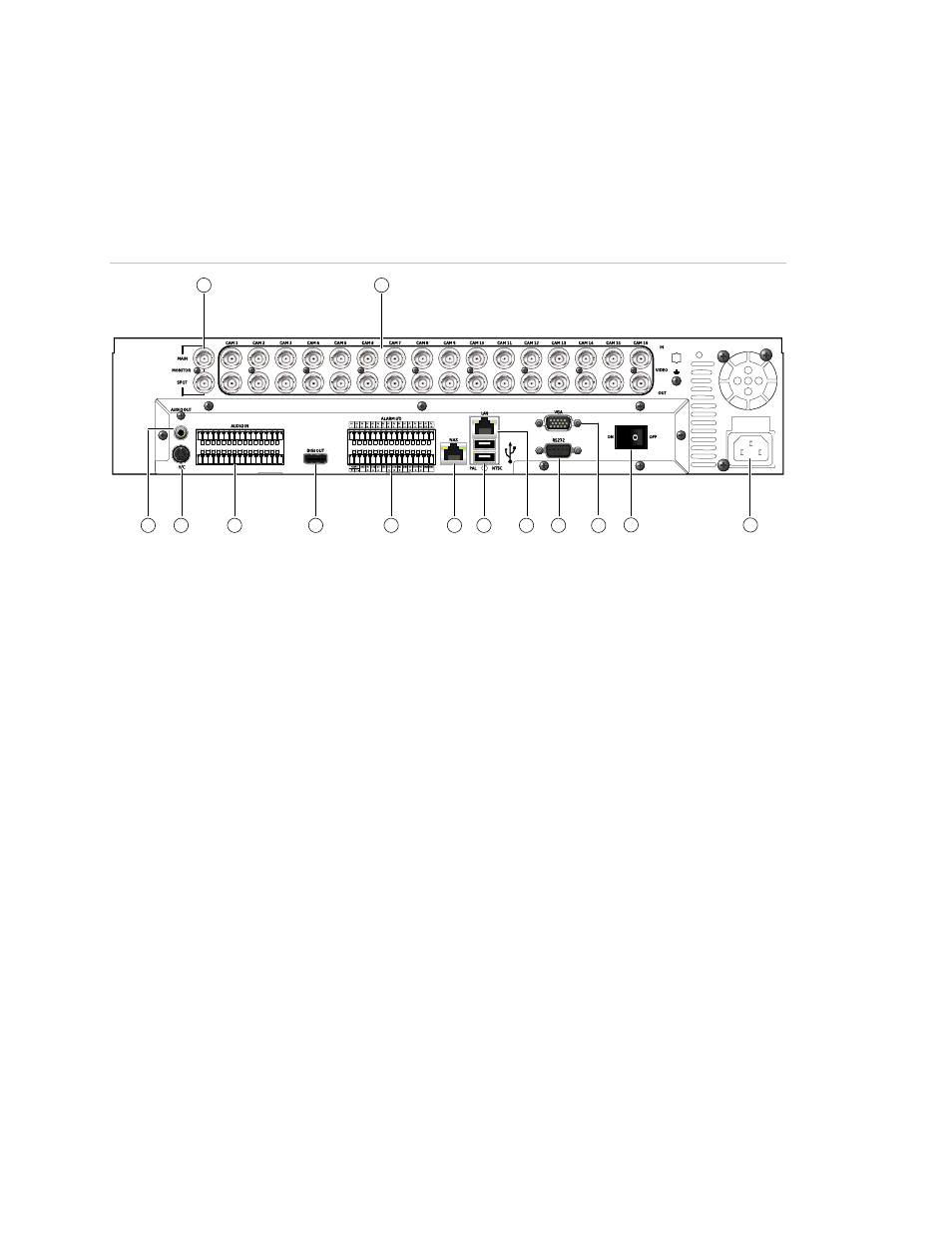

Figure 1: TVR 30 back panel
1 2
3 4 5 6 7 8 9 10 12 11 13 14
1. Video out
2. Video in (top row, loop out bottom row)
3. Audio out
4. S-video port
5. Audio in
6. Digital video output
7. Alarm I/O and RS-485
8. Network Attached Storage (NAS) port (This device is
currently not supported.)
9. USB ports
10. LAN port
11. RS-232 port
12. VGA output
13. Power switch
14. Power input
