Despatch MIC1422 Controller - Manual (Page 21)

17

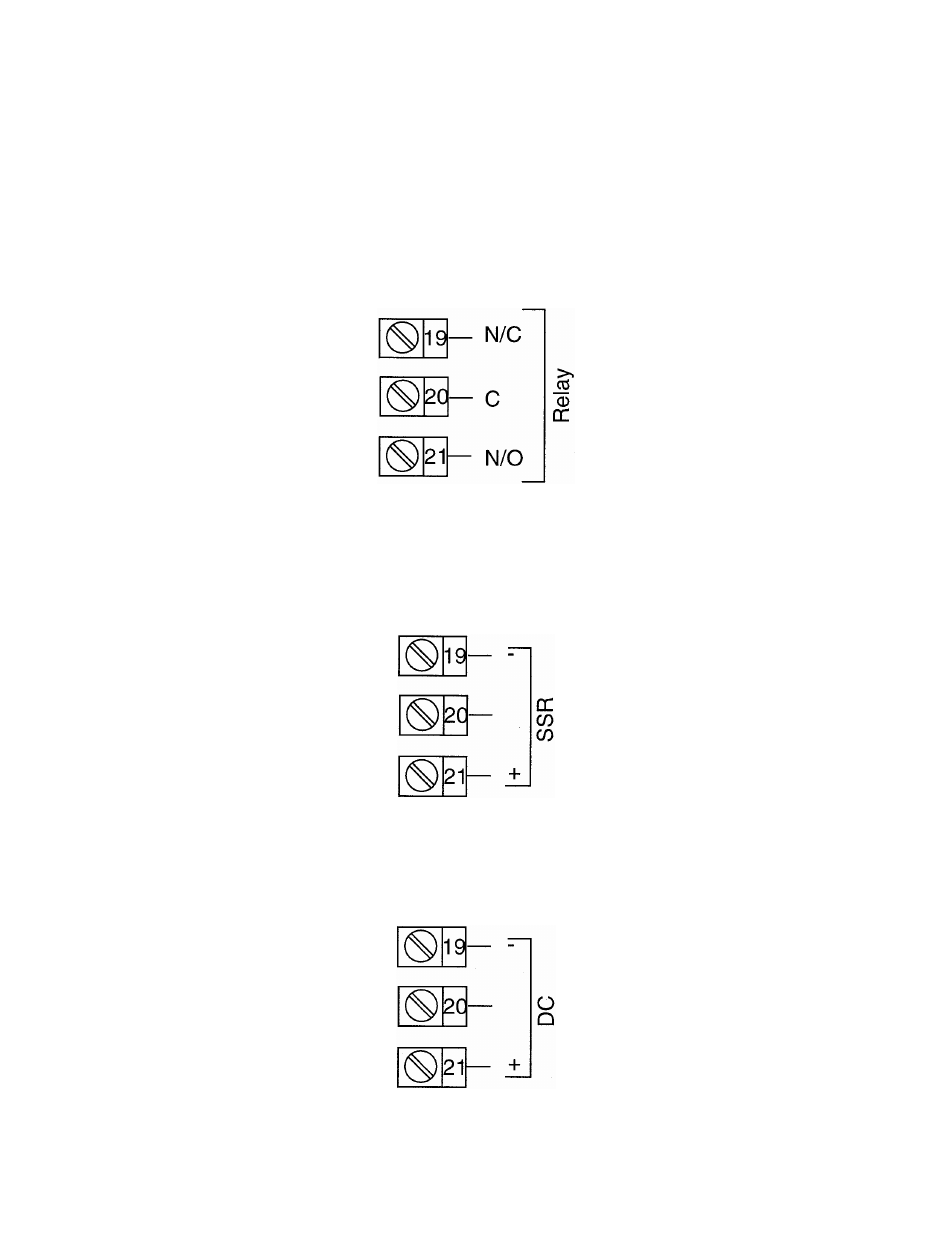

2.5 Output Connections
FIGURE 2-15
Relay Output 1 (Control Output 1)
Connections are made to Output 1 relay as illustrated below. The contacts
are rated at 2 amp resistive, 120/240 VAC.
FIGURE 2-16
SSR Driver Output 1 (Control Output 1)
Connections are made to Output 1 SSR Driver as illustrated below. The solid state
relay driver is a non-isolated 0-4 VDC nominal signal. Output impedance is 250 ohms.
FIGURE 2-17
mADC Output 1 (Control Output 1)
Make connections for DC Output 1 as illustrated below.
