Despatch MIC1422 Controller User Manual

Page 20

Text mode
Original mode

background image

16

FIGURE 2-13

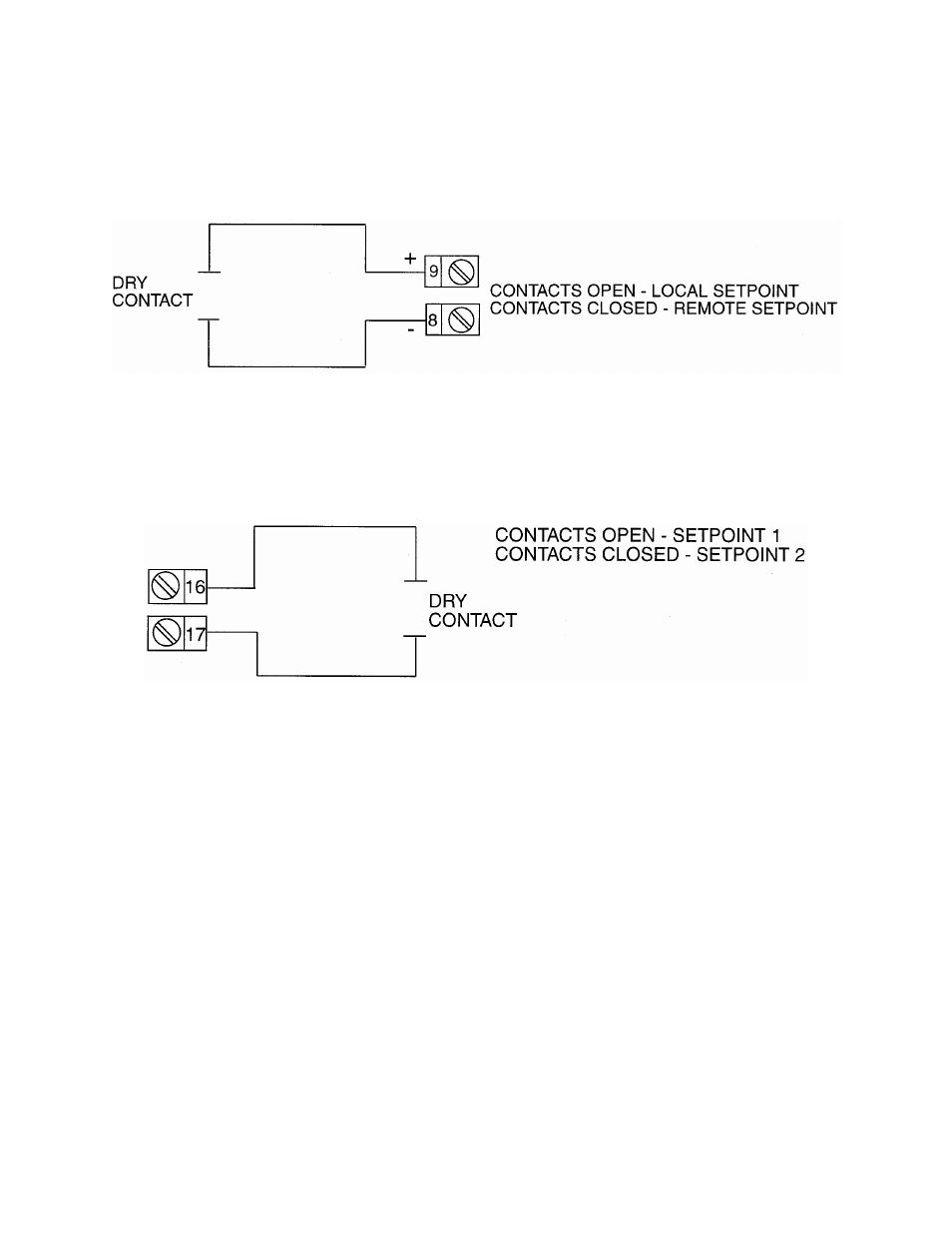

Remote Setpoint Selection

Connections are made as shown.

FIGURE2-14
Dual Setpoint Selection

Connections are made as shown.
