Tally Dascom DT-210/230
27
5.2 Interfaces
Power Supply interface, USB interface and cash drawer interface are standard interfaces for the
printer.
Serial interface, Parallel interface, Ethernet interface and Wi‐Fi interface are optional interfaces for
the printer.
The interface pin assignment is listed below.

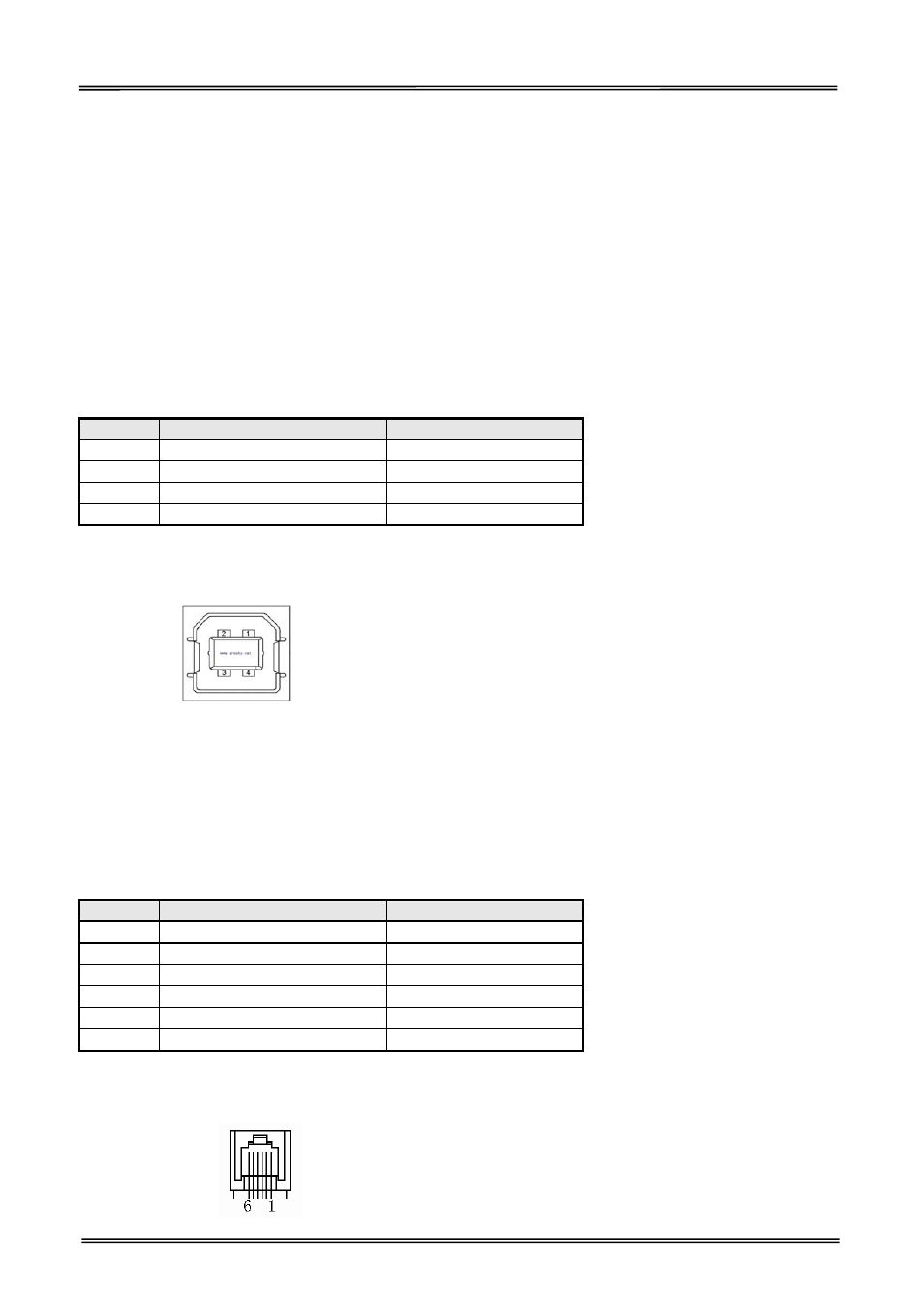

5.2.1 USB interface
USB interface pin assignment
PIN No. Description Classic wire color
1 VBUS Red
2 D‐ White
3 D+ Green
4 GND Black
USB interface connector diagram
5.2.2 Cash Drawer interface
Cash Drawer interface pin assignment
Cash drawer interface supports DC24V, 1A, RJ‐11 6P type socket.
Pin. No. Description Direction
1 Frame Ground ‐
2 Drawer kick‐out drive signal 1 Output
3 Drawer open/close signal Input
4 +24V ‐
5 Drawer kick‐out drive signal 2 Output
6 GND ‐
Cash Drawer interface connector diagram
