PVX Precision Visual Thickness Gauge
19
Alternatively , the delay, width, gain, and threshold hot function fields can be
changed using the Digit Edit Box as follows:
1) Press the ENTER key to display the Digits Edit Box.
2) Press the UP and DOWN arrow keys to scroll the highlighted value.
3) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
4) Repeat steps 2 & 3 until the delay, width, gain, or threshold number is
correctly displayed.
5) Press the OK key to set and return to the measure screen, or ESC to cancel
entering the delay, width, gain, or threshold value.

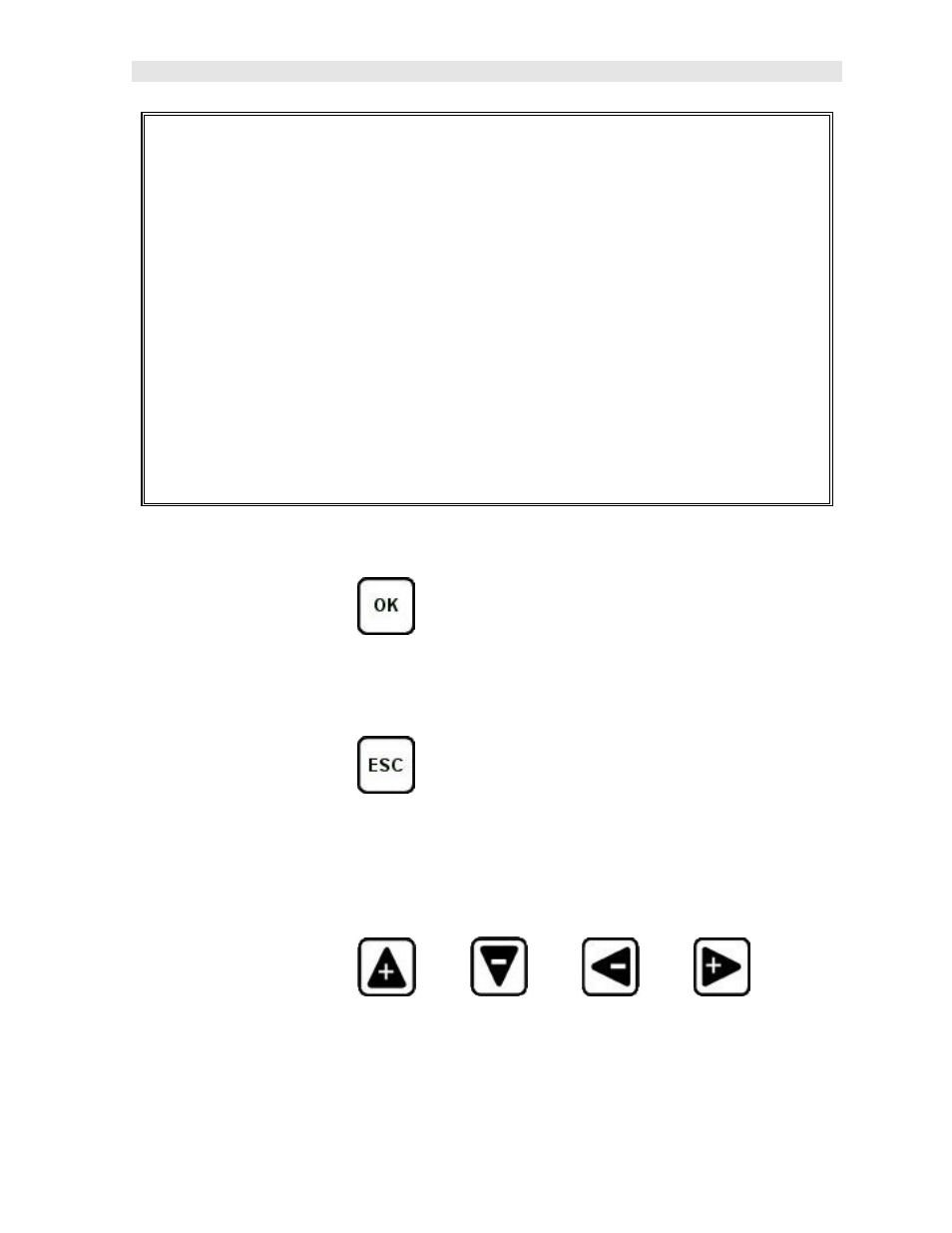

3.13 OK Key
The primary function of the OK key is confirmation of a change or selection. Also
toggles display views (Rect, RF, Digits, B-Scan) while in a highlighted grid location.
3.14 ESC Key
The ESC key is used in the MENU, MEAS, and EDIT functions as a back or escape
function. Also toggles display views (RECT, RF, DIGITS, or B-SCAN) while in a
highlighted grid location. Note: If a B-SCAN was originally saved in grid location,
only DIGITS view can be toggled in conjunction with the B-SCAN.
3.15 Arrow Keys
The Arrow Keys are used to navigate through the menus, increase/decrease values,
and toggle specific function keys.
