COATS APX Rim Clamp Tire Changer User Manual
Page 25
Important: Always read and follow the operating instructions.
• 21

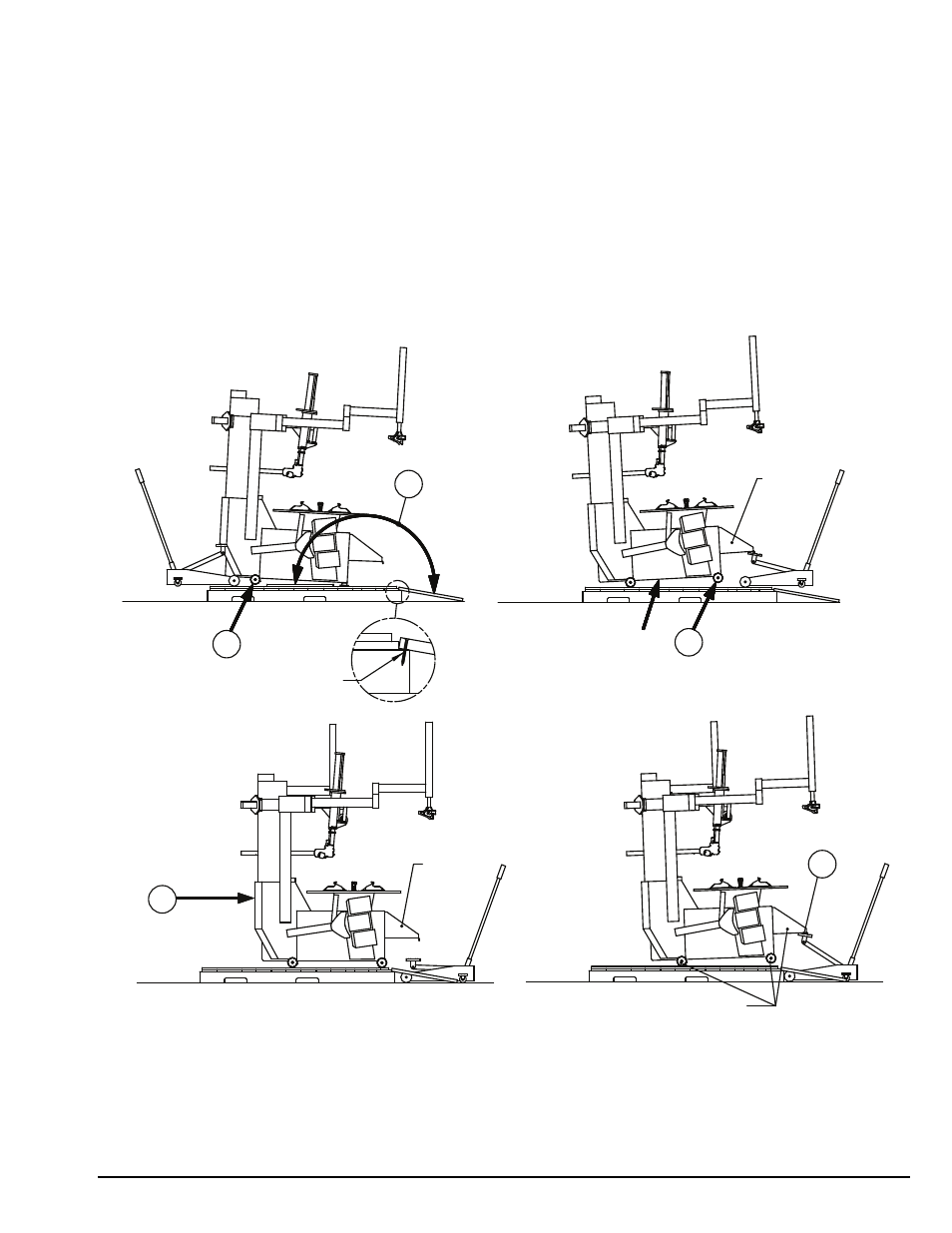

APX80 Unload Instruction
1. Remove lag bolts holding chassis to pallet.
2. Jack up rear of machine; install axle and wheels
as shown.
3. Remove ramp planks and position as shown.
4. Jack up front of machine and install axle and
wheels as shown.
5. Slowly push machine forward to position offload
bracket over jack.
6. Jack up front of machine and slowly move
machine off pallet.
7. Locate machine in shop at proper location and
remove wheels and temporary off-load bracket.
2
3
4
Offload
Bracket
5
6
"X"
Offload
Bracket
Remove Axles, Wheels &
Offload Bracket After
Locating In Final Position
DO NOT Fork Machine
Here: Transmission
Damages May Occur
Secure ramp planks
in position with screw
as shown.
APX80
