11. Remove existing adjusting knob and replace
with supplied adjusting lock knob (figure 7).
12. Now install handle grip onto swing arm lock
plate. Grease both sides of the lock plate grooves.
(figure 5)

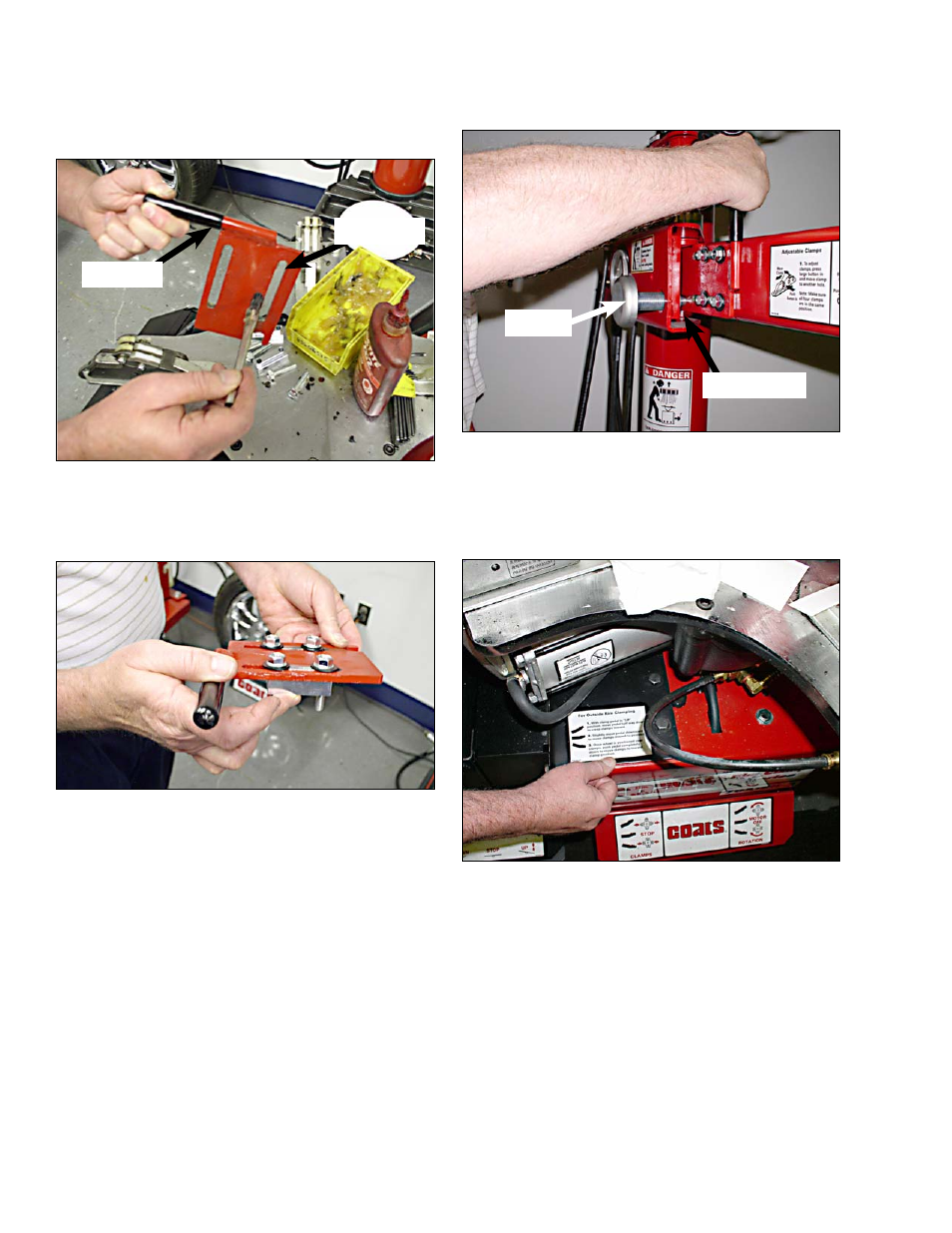

Figure 5 - Prepare Swing Arm Lock Plate
13. Position lock blocks in plate grooves; then add
the four washers and bolts (figure 6). Apply threadlock
to bolts before tightening bolts.
Figure 6 - Assemble Swing Arm Lock Plate Hardware
14. Mount the swing arm lock plate assembly to the
swing arm. Tighten in a criss-cross pattern. Verify swing
arm lock engages adjuster knob correctly. Final tighten
bolts and verify that the lock moves freely. (figure 7)
Figure 7 - Verify Swing Arm Lock Function
Remember: Generously lubricate all friction points for
improved function.
15. Apply instruction decal below table top on top of
chassis (figure 8).
Figure 8 - Instruction Decal Placed On Chassis
16. Perform machine functional test.
Grease Lock
Plate Grooves
Install Handle
Grip
Verify Lock
Engages Properly
Adjusting
Lock Knob
