COATS Robo-Arm™ Assembly • 7

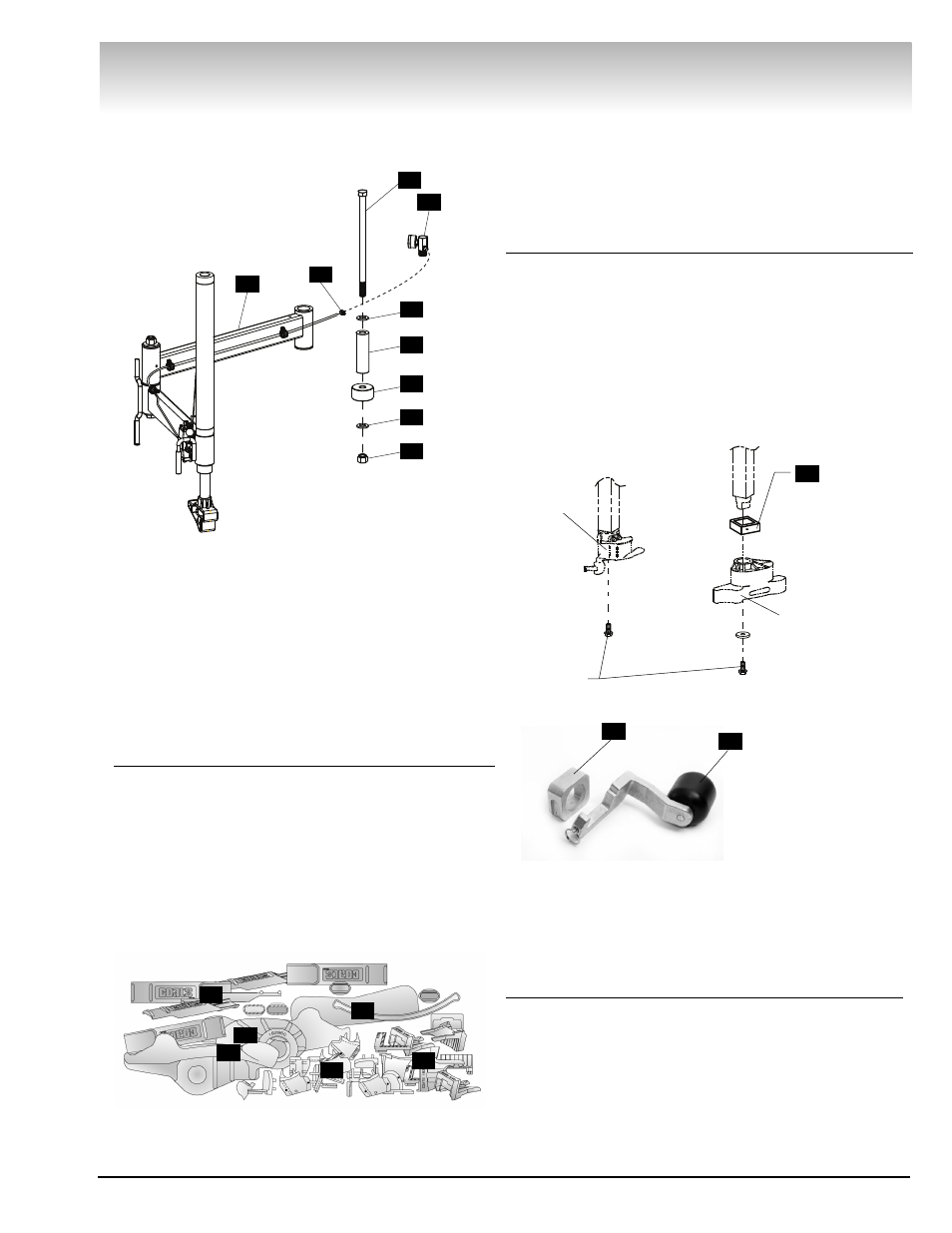

Parts Identification
Kit 8184177 includes the following Robo-Arm™ and Accessory Kits
Robo-Arm™ Kit 8184045
Part
Item No. Qty. Description
1 85009937 1 Robo-Arm™ Assembly
2 8101428 1 Hose Clamp, 1/4" ID Hose
3 8182016 1 Nut, Hex Nylock, 3/4-10
4 8183685 1 Gauge/Valve, Safety w/Tee
5 8182457 2 Washer, Flat, 3/4-10 x 14"
6 8181038 1 Swing Arm Pivot Pin
7 8183635 1 Hex HD Cap Screw, 3/4-10 x 14"
8 8183636 1 Spacer 0.781 ID x 2.750 x 1.5, STEE
Duckhead Roller Kit 85606462
Part
Item No. Qty. Description
9 85009932 1 Duckhead Roller Assembly
10 85009175 2 Duckhead Roller Mount
Nylon Duckhead, and Rim Clamp® Bootie
Kit 8184054
Part
Item No. Qty. Description
11 8183605 1 Lift Tool Bootie, Pkg. of 10
12 8183606 1 B.L. Bootie, Pkg. of 2
13 8183846 1 Nylon Duckhead Kit
14 8182960 1 Nylon Duckhead
15 8182963 1 Steel Duckhead Bootie, Pkg. of 12
16 8183604 1 Rim Clamp Bootie, Pkg. of 10
Robo-Arm™
1
2
3
5
8
6
5
4
7
1
2
3
4
5
6
7
8
10
12
13
14
15
16
Plastic Duckhead
(not supplied)
Torque to
60-70 ft. lbs.
Steel Duckhead®
(not supplied)
11
5
5 5
9
10
10 10
