Installing your new “bump-n-roll – COATS Kit 8183491, Bump-n-Roll User Manual
Page 2
2 • COATS Bump-n-Roll
Installing your new “Bump-n-Roll”

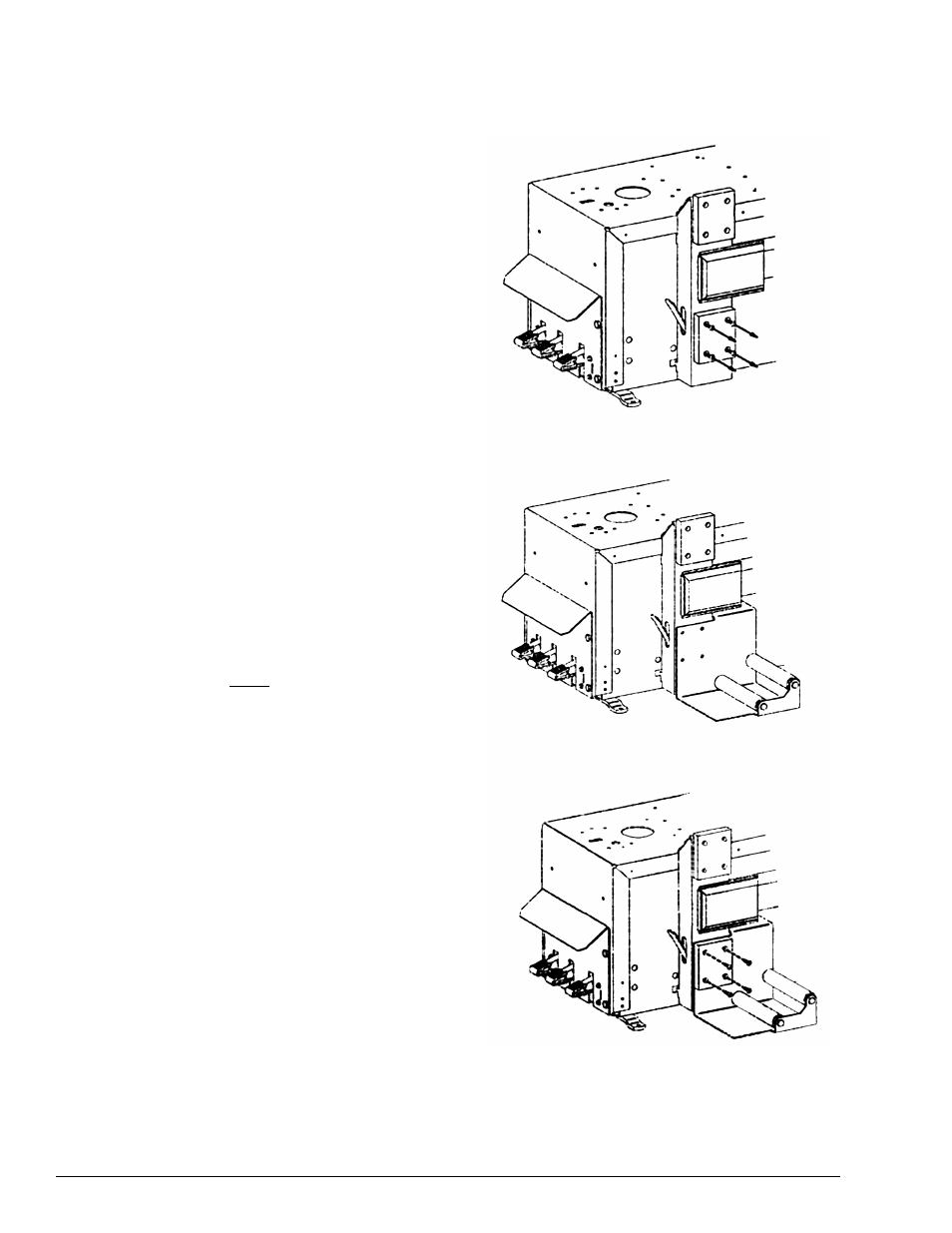

1. Remove the Torx T40 screws from the lower
front bead loosener pad on your 5030, 5050,
5060, or 6060 tire changer and remove the
bead loosener pad.
NOTE: Clean off any dirt and/or debris that
may have accumulated around the bead
loosener pad so that the Bump-n-Roll
assembly has an even surface for mounting.
2.
Place the Bump-n-Roll assembly on the floor
next to your COATS tire changer and line up
the holes in the Bump-n-Roll assembly with the
screw holes in the side of the tire changer
where the bead loosener pad was removed.
On 5030 machines, line up two (2) holes at
front of the Bump-n-Roll assembly and install
the extension plate under the upper flange of
the Bump-n-Roll assembly with the two (2) 1/4-
20 screws supplied. (See Parts Listing)
3.
Replace the bead loosener pad (over the
Bump-n-Roll bracket) with the four (4) new
screws supplied with the Bump-n-Roll
accessory. You are now ready to “Bump-n-
Roll”. (Discard excess hardware)
