LCD Replacement Instructions
for the COATS IBS 2000
COATS, Inc. • Hennessy Industries • P.O. Box 3002, 1601 J.P. Hennessy Drive, LaVergne, TN 37086-1982
(800) 688-6359 • (615) 641-7533 • (615) 641-5104 FAX
112406 10/97 rev.0 © COPYRIGHT 1997 HENNESSY INDUSTRIES AND COATS ALL RIGHTS RESERVED PRINTED IN U.S.A.
1. Turn the balancer off, and disconnect the power
cord from the power source.
2. Remove the 4 nuts holding the touch panel in
the plastic pod.
3. Disconnect the touch panel from the main bal-
ancer wiring loom.
4. Disconnect the LCD’s cable and wires from the
main printed circuit board (PCB).
5. Remove the LCD display.
6. Install the new LCD display with the O-rings
provided. Position the O-rings between the LCD cir-
cuit board and the touch panel standoffs. Make cer-
tain the arrow on the LCD circuit board points
towards the top of the touch panel. Do not over-
tighten the mounting screws.
7. Reconnect the LCD’s cable and wires to the
main PCB.
8. Reconnect the touch panel to the main wiring
loom.
9. Reinstall the touch panel in to the plastic pod.
10. Reconnect the balancer to the power source,
turn the balancer on, and check for proper LCD oper-
ation.

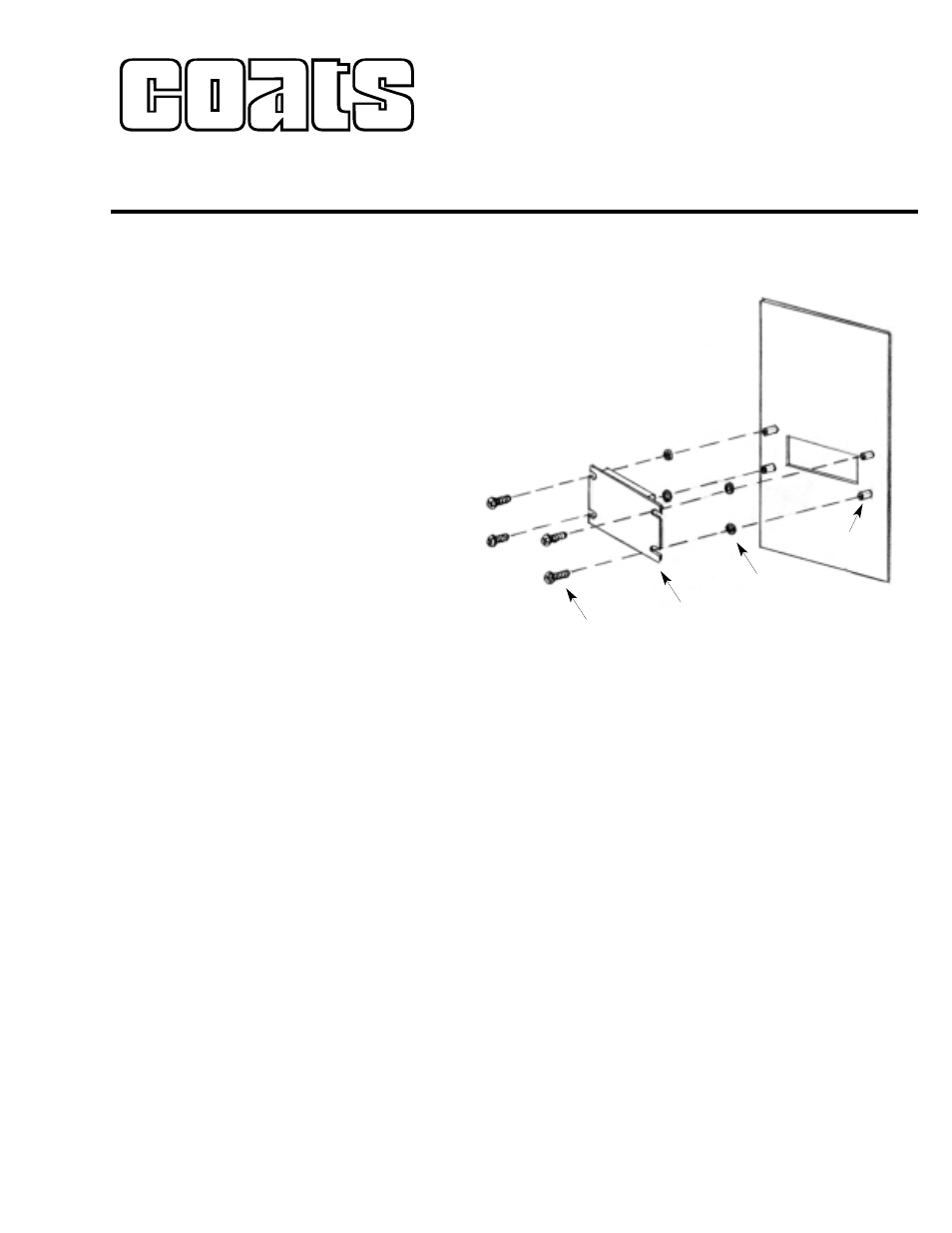

Touch Panel
O-Rings
LCD
#6-32 Screws
Standoffs
