COATS Kit 85609110 Balancer Adapter Wall Storage Board Extension User Manual
COATS Equipment
85609109 00 09/13
1 of 1
© Copyright 2013 Hennessy Industries and COATS
All Rights Reserved
Balancer Adapter Wall
Storage Board Extension
Kit 85609110
Balancing Solutions
Figure 1 - Hook Assembly
Diagram
Before You Begin
The Wall Storage Board Kit consists of the following parts:
Item Part
No. Qty. Description
Ⓐ 85609108
1 Storage Board Extension
Ⓑ 8113094 3 Hook
Ⓒ 8107091 3 Grip
Ⓓ
8106303
6 3/8-16 UNC Locknut
Verify that you have received all of the parts listed.
Assembly and Installation
1.
Install the Grips onto the Hooks if not already installed.
(Fig. 1)
2.
Install each Hook onto the Storage Board using two
3/8-16 UNC Locknuts as shown in figure 1. Hand-tighten the
Locknuts (very snug), leaving the threaded portion of the
Hook flush with the Locknut. Make sure the Hooks are point-
ing upward toward the label.
3.
Mount the assembled Storage Board Extension
to the existing board as shown (Fig. 2).

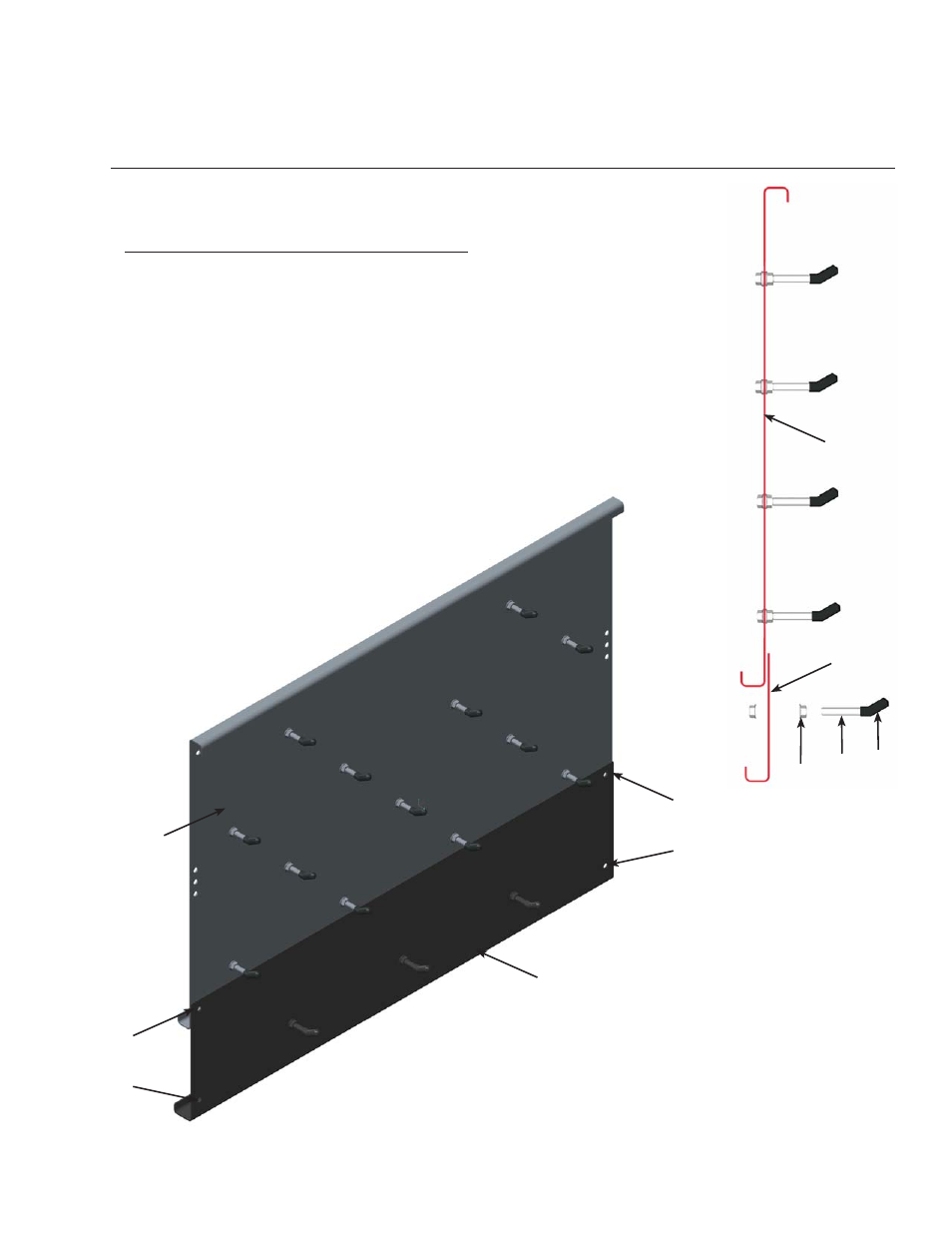

Figure 2 - Assembled Wall Storage Board
Storage Board
Extension
Mounting
Hole
Mounting
Hole
Existing
Storage
Board
Ⓐ
Ⓑ Ⓒ
Ⓓ
Existing
Storage
Board
