COATS Kit 85607965 Lateral Sonar Kit - Manual

85607980 00 06/12 1 of 2 © Copyright 2012 Hennessy Industries and COATS All Rights Reserved
85607965 Lateral Sonar Kit
For use with COATS ProRide Wheel Balancer
Hennessy Industries • 1601 J. P. Hennessy Drive, LaVergne, TN USA 37086-3565 (800) 688-6359 • (615) 641-7533 • (615) 641-5104 FAX • www.ammcoats.com

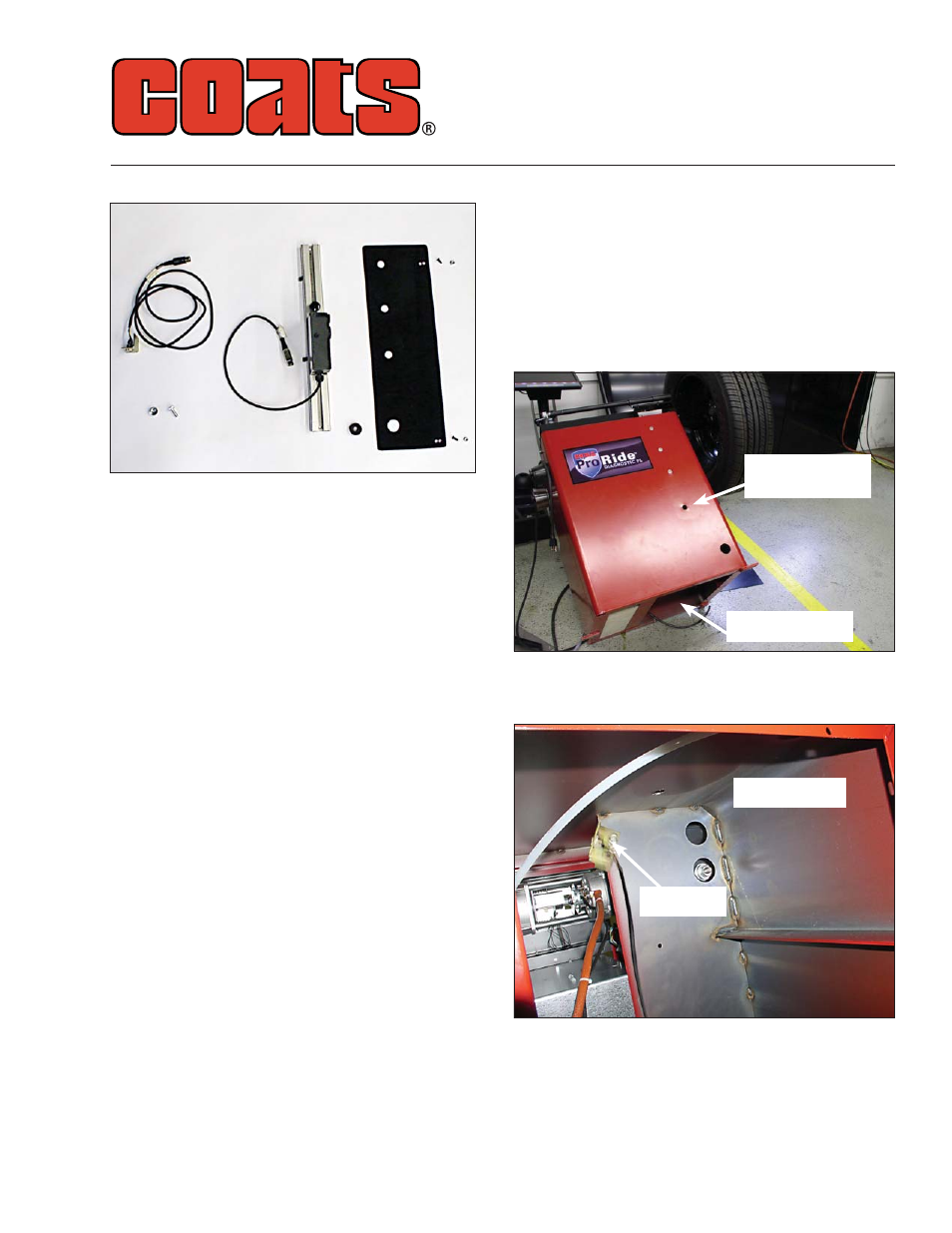

Kit Includes:
Tools Needed:
3/16 inch Drill Bit
11/16 inch Hole Saw or Drill Bit
Hex Keys 6 mm
3/8 Wrench
7/16 Wrench
Phillips Head Screw Driver
Instructions
1. Unplug balancer from power source.
2. Lean balancer back to gain access underneath the
chassis and place tire under sonar bar. Remove storage
pegs on front of balancer.
3. Place mounting plate on chassis; and align it with
the three holes for storage pegs. Next mark the center
of the last hole location. Drill a 11/16 hole in the chassis.
Be sure there is no obstruction inside the chassis.
3. Mount angle bracket with connector on the inside
of cabinet (as shown) using supplied nut and bolt.
Mounting Plate
w/ Hardware
Plugs
Hardware
Rubber
Grommet
Lateral Runout
Assembly w/
Cable & Sonar
Lean Chassis Back To
Gain Access Under Unit
Angle Bracket &
Connector
View From
Underneath Chassis
Use Mounting Plate as
Template for Drill Hole
Location
