COATS Kit 85607817 Service Kit User Manual
COATS Equipment
85607862 00 06/12
1 of 1
© Copyright 2012 Hennessy Industries and COATS
All Rights Reserved
85607817 Service Kit
For use with COATS 85607503
Quick Release Hub Nut
Hennessy Industries • 1601 J. P. Hennessy Drive, LaVergne, TN USA 37086-3565 (800) 688-6359 • (615) 641-7533 • (615) 641-5104 FAX • www.ammcoats.com

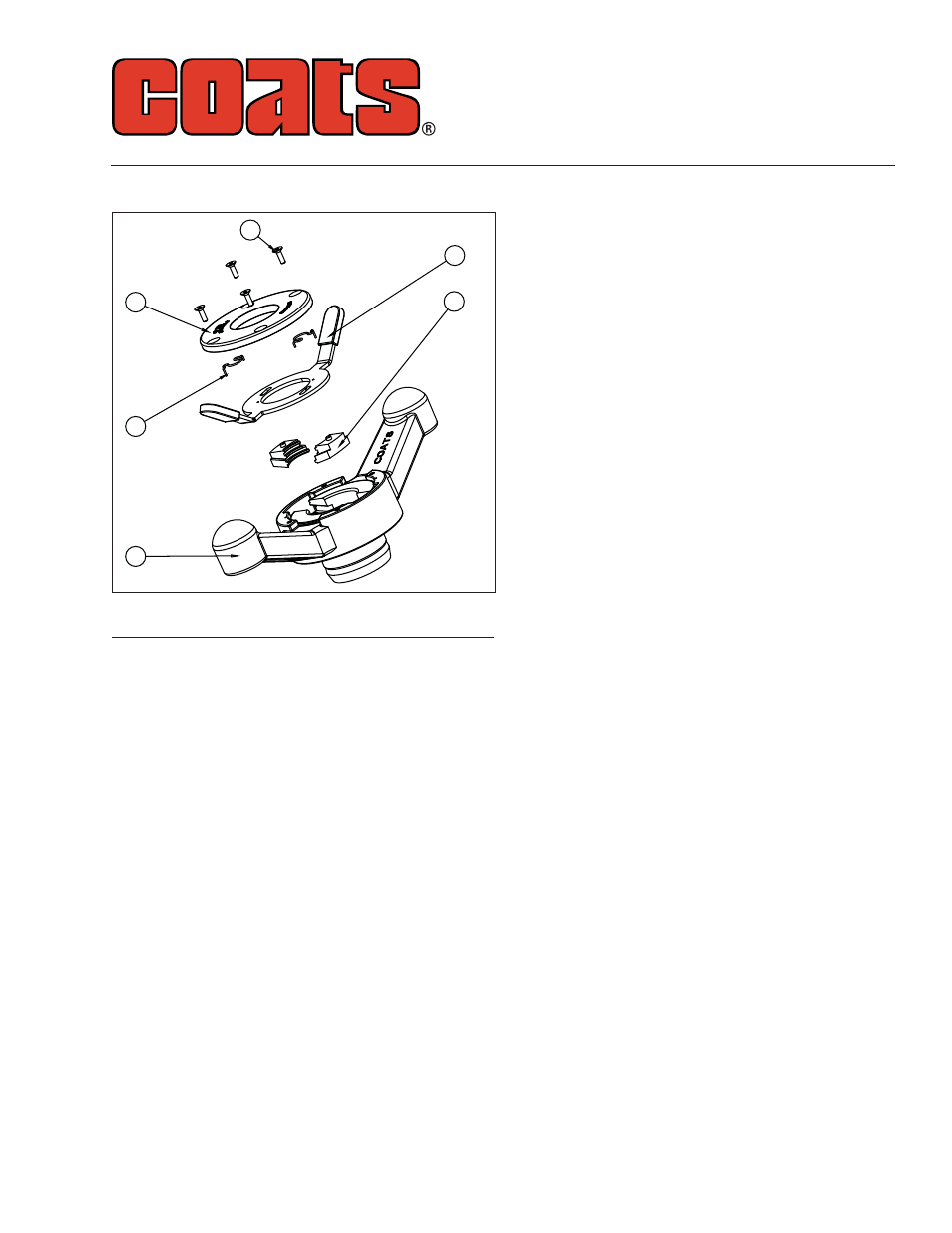

4
2
3
1
6
5
Parts Identification
Item Description
1
0.7 x 12mm FHCS SCREW, M4
2 CAP
3 SPRING
4 ACTUATOR
5 THREADED
INSERT
6 HUB
NUT
Tools Needed:
2.5 mm Hex Key
Needle Nose Pliers
Grease
Loctite
®
242 Threadlocker
Instructions
1.
Use a 2.5 mm hex key and remove the four screws
that fasten the CAP to the HUB NUT.
2.
Disassemble the two SPRINGS, ACTUATOR, and
two THREADED INSERTS from the HUB NUT.
3.
Now using the new kit parts, assemble the two
THREADED INSERTS, ACTUATOR, and two SPRINGS
to the HUB NUT. Note that the long end of the SPRING
goes into the HUB NUT and the short end goes into the
ACTUATOR. Grease the ACTUATOR and THREADED
INSERTS.
4.
Fasten the CAP to the HUB NUT using the sup-
plied screws. Add some Loctite 242 threadlocker to the
fasteners.
Loctite® is a registered trademark of Henkel Corporation
