Adjusted correctly, Out of adjustment – COATS Kit 8113645 Radial Runout Sensor Adjustment Kit User Manual
Page 2
8113644 00 01/03 page 2 of 2
© COPYRIGHT 2003 HENNESSY INDUSTRIES AND COATS ALL RIGHTS RESERVED PRINTED IN U.S.A.
Radial Runout Sensor Diagnostic Adjustment
Note: If the sensor is not adjusted correctly, the balancer will not brake correctly.
If Radial Runout Sensor
is not Adjusted
Correctly the Output
Signals are not
Received by the Sensor.
The Sensor is the
Transmitter and
the Receiver

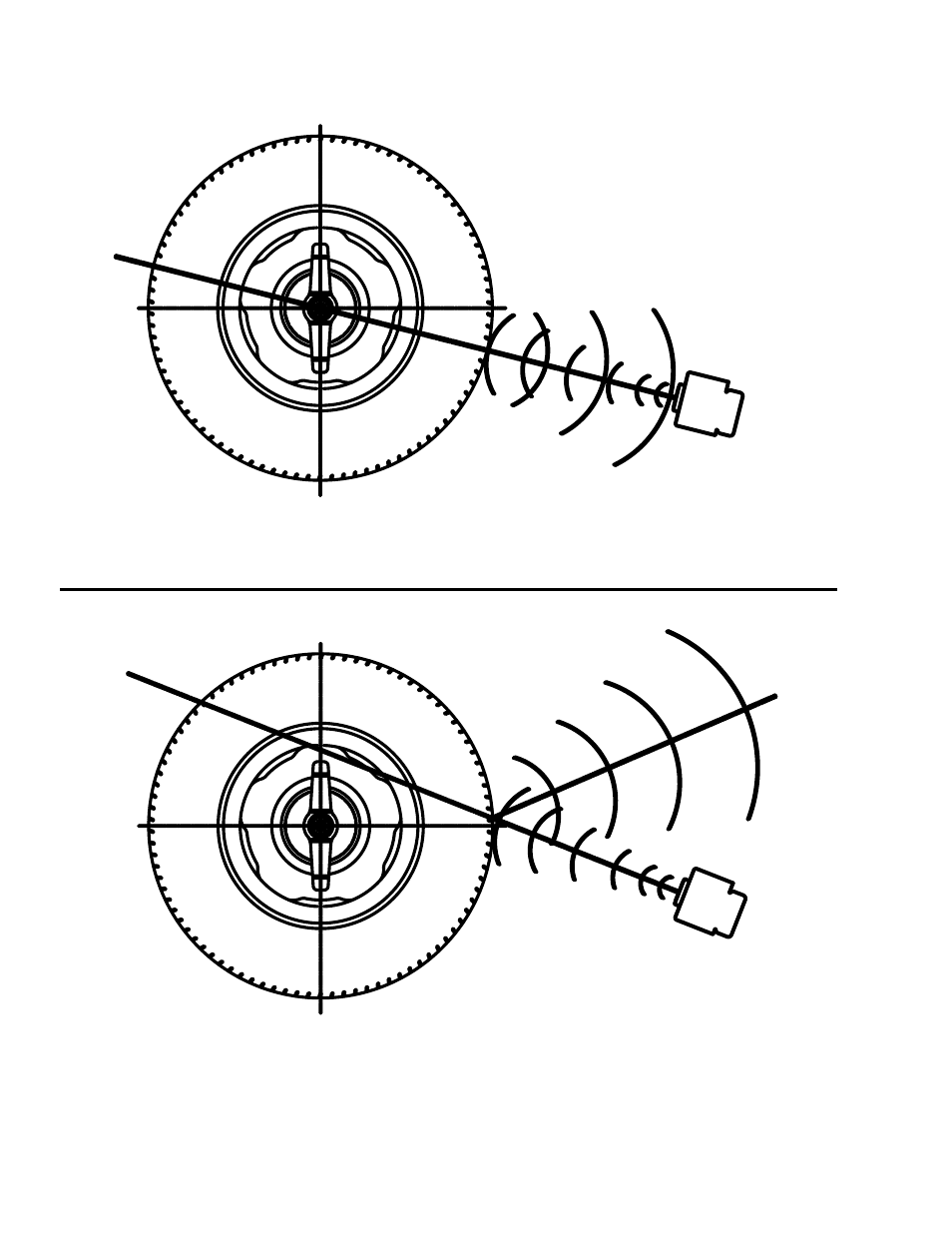

Adjusted Correctly
(Perpendicular to Tire Tread)
Out of Adjustment
(Signals Do Not Bounce Back to Sensor)
