System Map: Front, Left, Right & Rear Views (Models A & B) - 11
Concise User’s Guide
Engl
ish

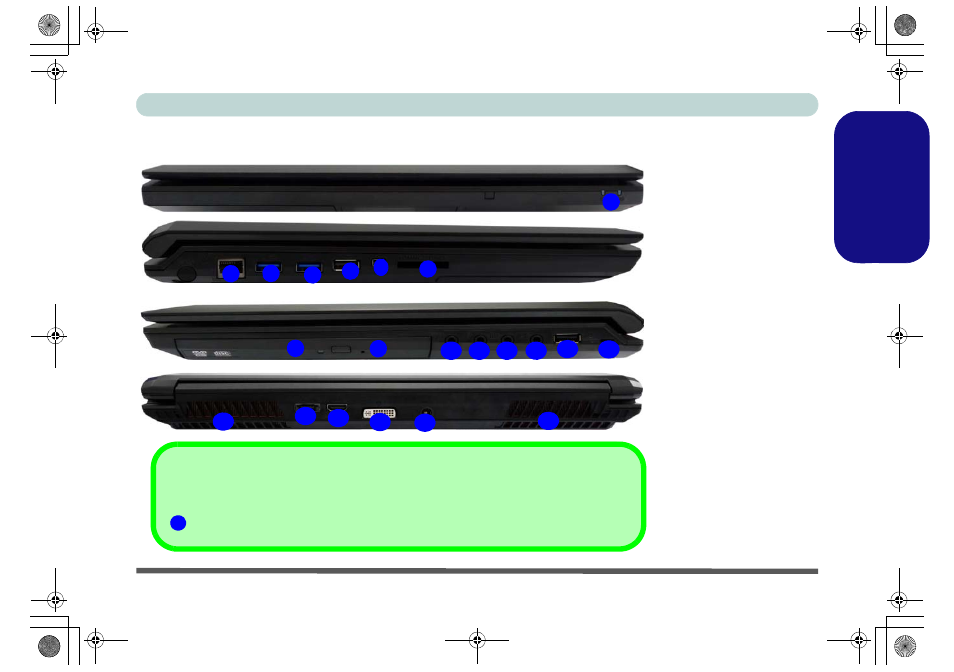

System Map: Front, Left, Right & Rear Views (Models A & B)
4
7
5 6
1
2 3
Front
9
Left
Right
10 11 13 12

USB
The USB 3.0 port is denoted by its blue color; USB 2.0 ports are colored black. USB 2.0 port
can supply power when the system is off but still powered by the AC/DC adapter. 4
8
3
16 18
15
17
16
Rear
19 20
Figure 6 - Front, Left, Right
& Rear Views
1. LED Power Indicators
2. RJ-45 LAN Jack
3. USB 3.0 Ports
4. USB 2.0 Port
(see note below)
5. Mini-IEEE 1394a Port
6. Multi-in-1 Card Reader
7. Optical Device Drive Bay
8. Emergency Eject Hole
9. Headphone Jack
10. Microphone Jack
11. S/PDIF-Out & Surround-
Out Combo Jack
12. Line-In Jack
13. USB 2.0 Port
14. Security Lock Slot
15. Vent
16. eSATA/USB 2.0 Combo
Port
17. HDMI-Out Port
18. DVI-Out Port
19. DC-In Jack
