System Setting
36 |
System Setting

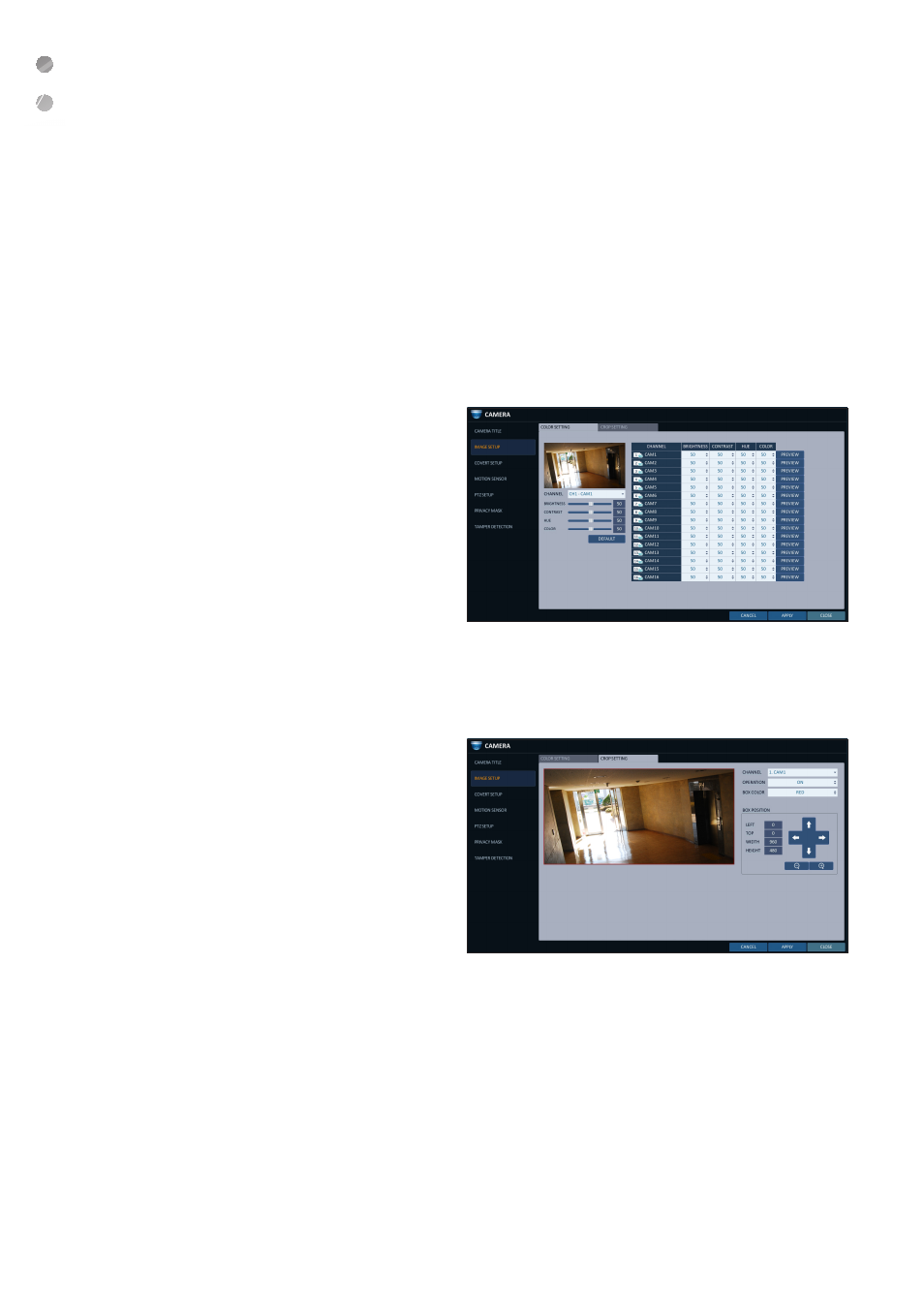

\ \ Image Setup
You can edit image settings and cropping settings for video from each camera.
COLOR SETTING
You can adjust brightness, contrast, color and quality setting of each channel ’ s camera. (Not available for HD-SDI
cameras.)
1. From - , select
.
2. Use [ ▲▼◀▶ /ENTER] buttons of the remote control or
mouse to edit settings.
3. To apply your changes, click button.
4. Once completed with setup, press [EXIT] button of
the remote control or click button on the
bottom of the screen. A confirmation dialog appears
and returns to the previous menu.
Press button for adjusting with preview
image.
Crop Setting
You can cut out unnecessary region of a channel ’ s video.
1. - , select
SETUP> - .
i
CHANNEL : Select the channel to set cropping
area.
i
OPERATION : Set whether to use cropping or not.
i
BOX COLOR : Select the box color to mark the
cropping area.
i
BOX POSITION : Set position and size of the
cropping box.
2. To apply the change, click in the bottom of
the screen.
3. When done, press the [EXIT] button on the remote control or click in the lower screen. The confirmation
message appears and you will return to the previous menu.
