CCTV Camera Pros iDVR-PRO H Series DVRs - Manual (Page 11)

English | 11
Ins
tall
atio
n

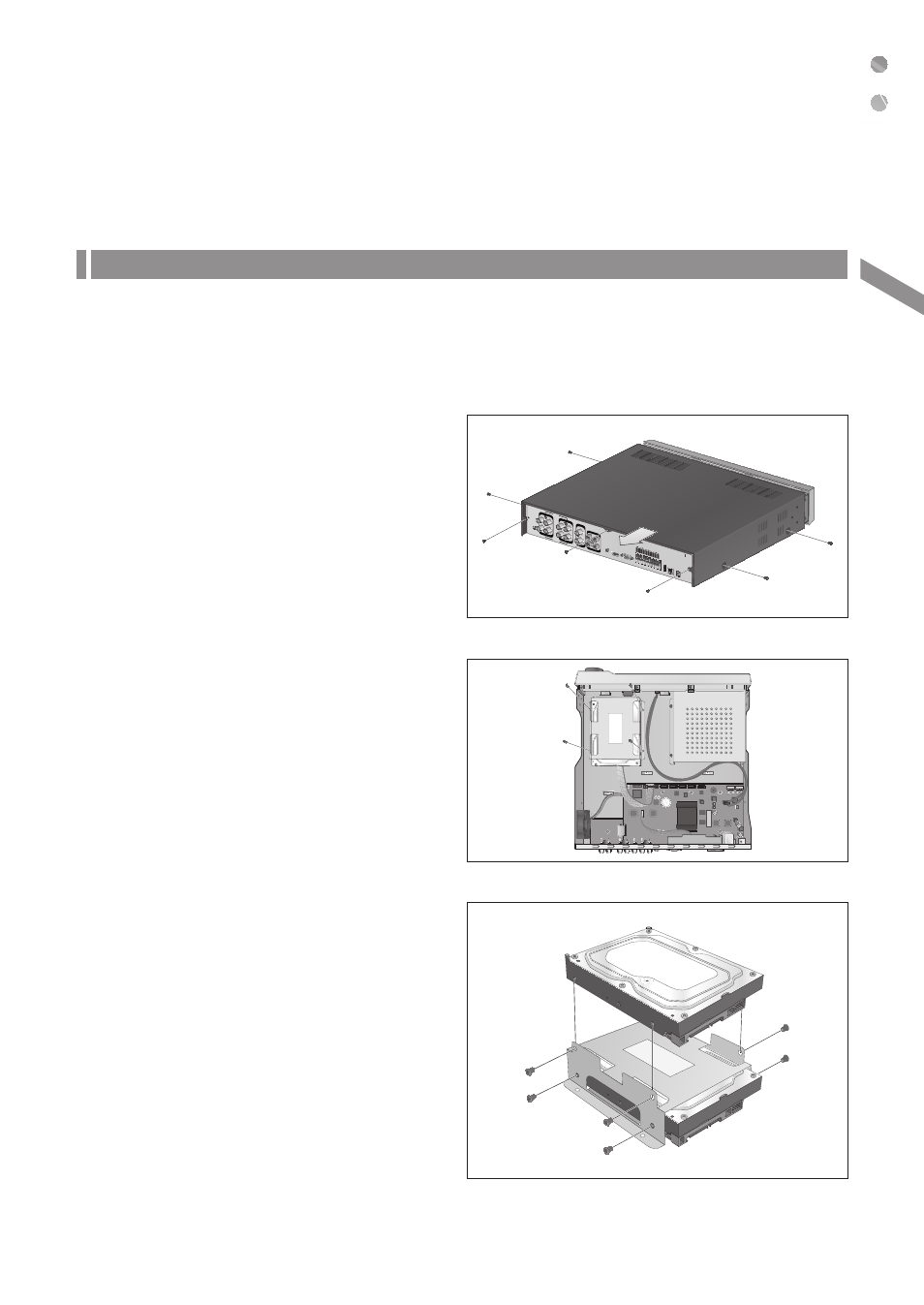

Replacing HDD
When an HDD is full or problematic, you can replace it with a new one by yourself.
\ \ If installed 2 HDD drives
Below illustrations are based on the 4-channel model.
1. Remove screws on the DVR
’
s rear and both sides.
2. Pull the cover case forwards to separate it.
3. Remove screws fixing the bracket to separate it from
the main unit.
4. Once the bracket is separated, remove screws on
both sides of the HDD drive to be separated and
replaced.
5. Install the new HDD and fix screws on both sides.
Make sure to install the drive with proper orientation.
Installation
VIDEO IN
USB
CH1
CH2 CH4
CH3
RS-232
RELA Y
ALARM IN RS-485
485+ 485-
NC2 GND IN3 IN4 COM1 NO1 COM2
GND 232TX 232RX IN1 IN2
ETHERNET DC 12V
VGA
HD MONITOR
AUDIO OUT
AUX
SPOT OUT
CH3
CH3 CH4
CH4
CH1
CH1 CH2
CH2
NTSC
PAL
AUDIO IN
VIDEO OUT
VIDEO IN
LOOP OU T
a
b
