Model 601GAS burner — Instruction manual

Carlin part number MN601GAS Rev. 04/24/09

– 25 –

Where appliance instructions differ from this manual, follow the appliance instructions.

9. Replacement parts – Burner

(continued)

Set screws

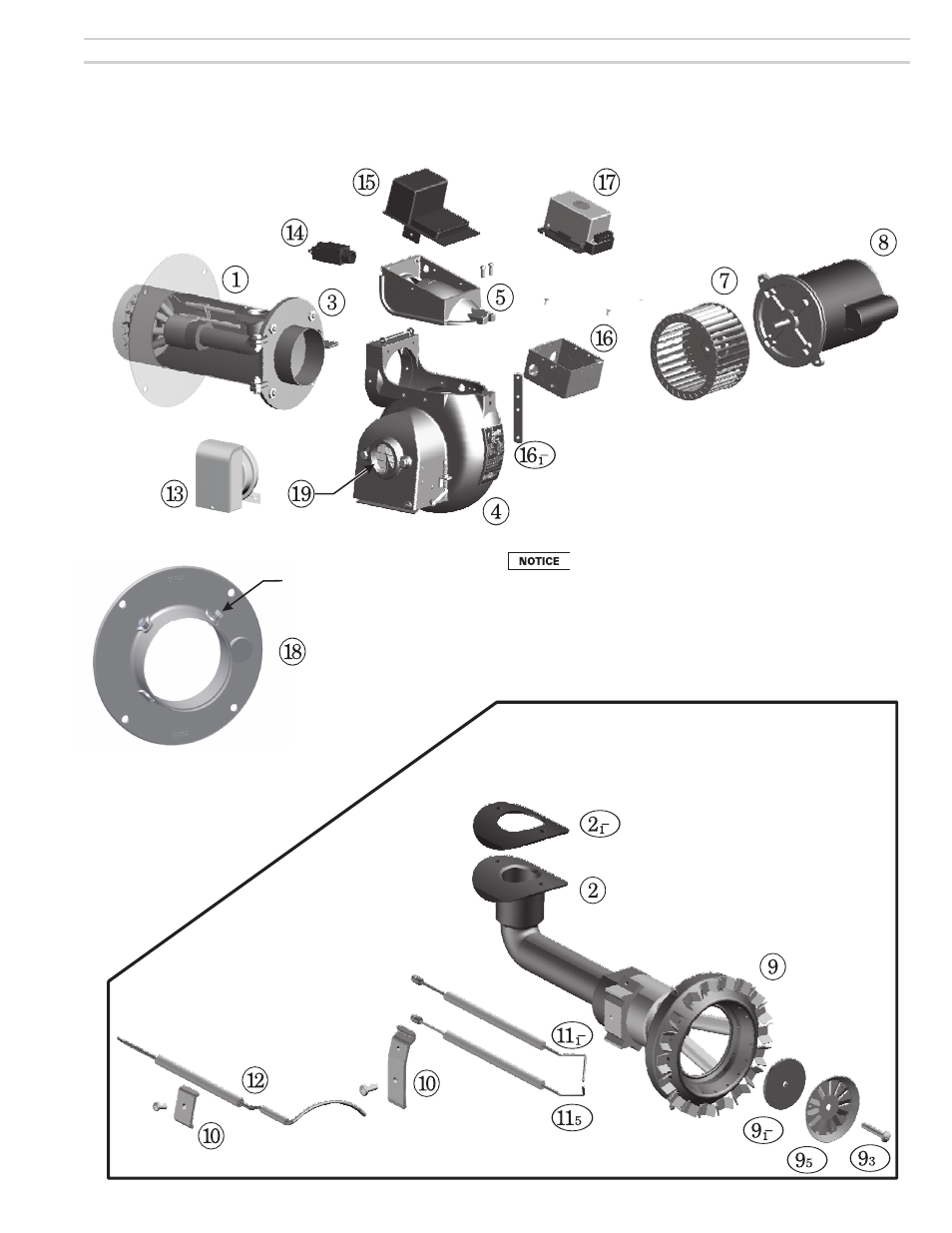

Combustion head assembly

Burner is shown with welded flange, supplied only on burners

ordered for specific appliance applications. Other burners
are supplied with the optional forced draft adjustable flange
(item 18). See page 23 for details.
