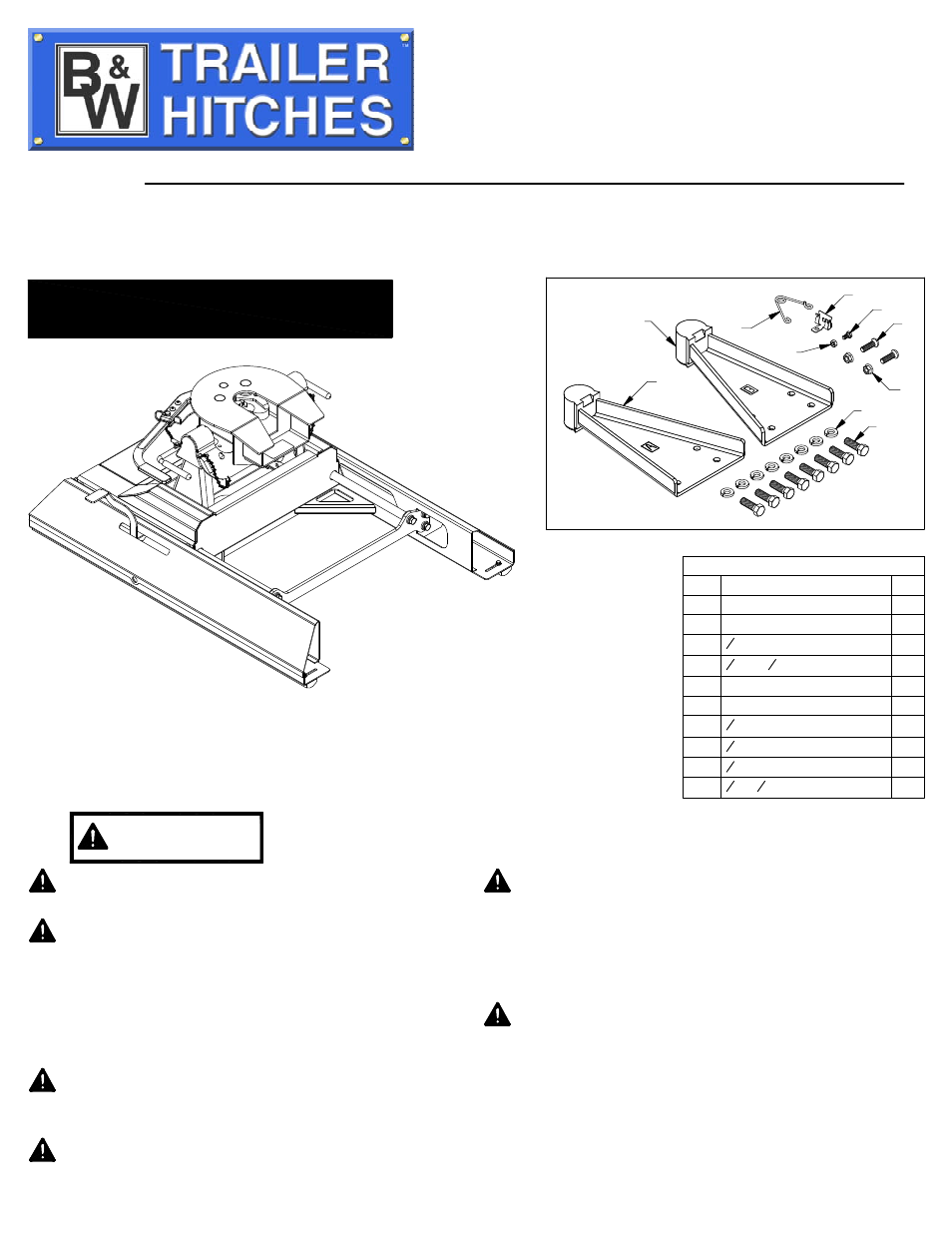

Companion Slider Hitch Installation Instructions
NOTE:
We recommend reading instructions before beginning the installation.
18,000 LBS. TRAILER WEIGHT
4,500 LBS. TRAILER TONGUE WEIGHT Call or Email us for Installation Support
[email protected] www.turnoverball.com
Model 3400
WARNING
Failure to comply with the safety information in these
instructions could result in serious injury or death.
REQUIRED TOOLS
Installation of the slider hitch requires a large torque wrench capable of measuring 80
ft−lbs, a 3/4" socket, a 7/16" and 9/16" socket or wrench, and a 7/32 allen wrench.
ATTENTION: The Slider accessory will work with all Turnoverball
gooseneck hitches except GNRK1309 and GNRK1257.
Adding components to the chassis of any vehicle can
be hazardous. There is potential for damage to
vehicle, injury from tool usage and many other
hazards. This installation must be completed by
someone who is aware of the hazards involved. This
person must be knowledgeable of proper safety
procedures for a vehicle installation of this nature, and
for usage of the equipment required to perform the
installation.
Regularly check that all bolted connections are at the
correct torque specification. A visual inspection should
be performed before each time you tow.
Do not exceed tow or tongue rating of coupler, tow or
tongue rating of hitch, or tow or weight ratings of truck
or trailer. See vehicle and trailer manufacturer
information for ratings. Exceeding these ratings may
cause damage to towing components or loss of
attachment between the trailer and truck.
Do not modify this product in any manner. Doing so
could alter its integrity and lead to a loss of attachment
between the trailer and the tow vehicle.
Without proper knowledge, towing can be a
dangerous activity. Understand all the risks involved
with towing before proceeding. For information on
towing safety, see "The Trailer Handbook: A guide
to Understanding Trailer and Towing Safety" from
the National Association of Trailer Manufacturers,
www.NATM.com.
Read all installation and operating instructions along
with all labels before using this product.
PARTS LIST
ITEM DESCRIPTION QTY
1 Pivot Arm A 1
2 Pivot Arm B 1
3 1
2
" Split Lock Washers 8
4 1
2
" X 1− 1
2
" Cap Screw 8
5 Wire Torsion Spring 1
6 Mounting Clip 1
7 3
8
" Button Head Cap Screws 2
8 3
8
" Lock Nuts 2
9 1
4
" Finish Nut 1
10 1
4
" X 1
2
" Cap Screw 1
2
1
5
6
9
10
7
8
3
4
