Audio Manual
Section 2
LEFT
EFX RTN
EFX RTN
3
STR RTN
1
L
INSERT
L
BUS IN

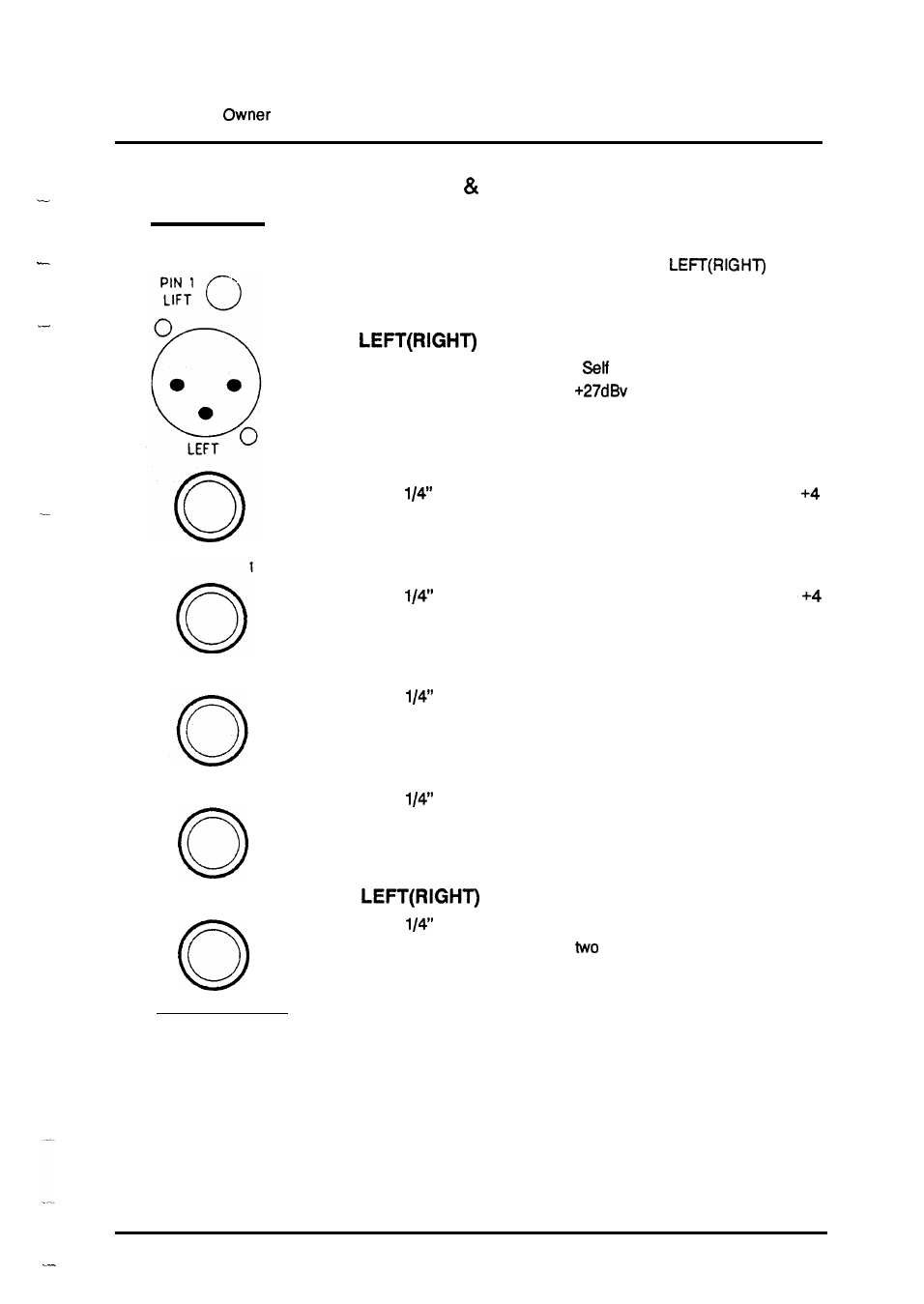

LEFT (RIGHT) CONNECTIONS
PIN 1 LIFT
Used to disconnect pin 1 from the output
connector. Use to eliminate ground loops.
BAL OUT
Male XLR3 (Pin 2 Hot). Compensating Electronically
Balanced. Capable of output into 600 ohms or
greater.
EFX RETURN 1 (2) INPUT
Stereo Jack Tip accepts -10 devices, Ring accepts
devices
EFX RETURN 3 (4) INPUT
Stereo Jack. Tip accepts -10 devices, Ring accepts
devices
STEREO RETURN 1 (2)
Stereo jack; Tip is Left, Ring is Right. Normally accepts
-10 level Stereo effects devices or Tape Decks.
LEFT (RIGHT) INSERT JACK
Stereo Jack used to insert signal processing devices
into the Main outputs. The TIP connection is the SEND, and
the RING connection is the RETURN.
BUS IN
Jack for inputing signals directly into the Main mix
amps. Used for stacking mixers together.
-2dBv input level.
15
