Section 2

E

l

MONO

L

R

MUTE

STEREO RTN 1

PFL

FRONT PANEL CONTROLS

CHANNEL (Cont)

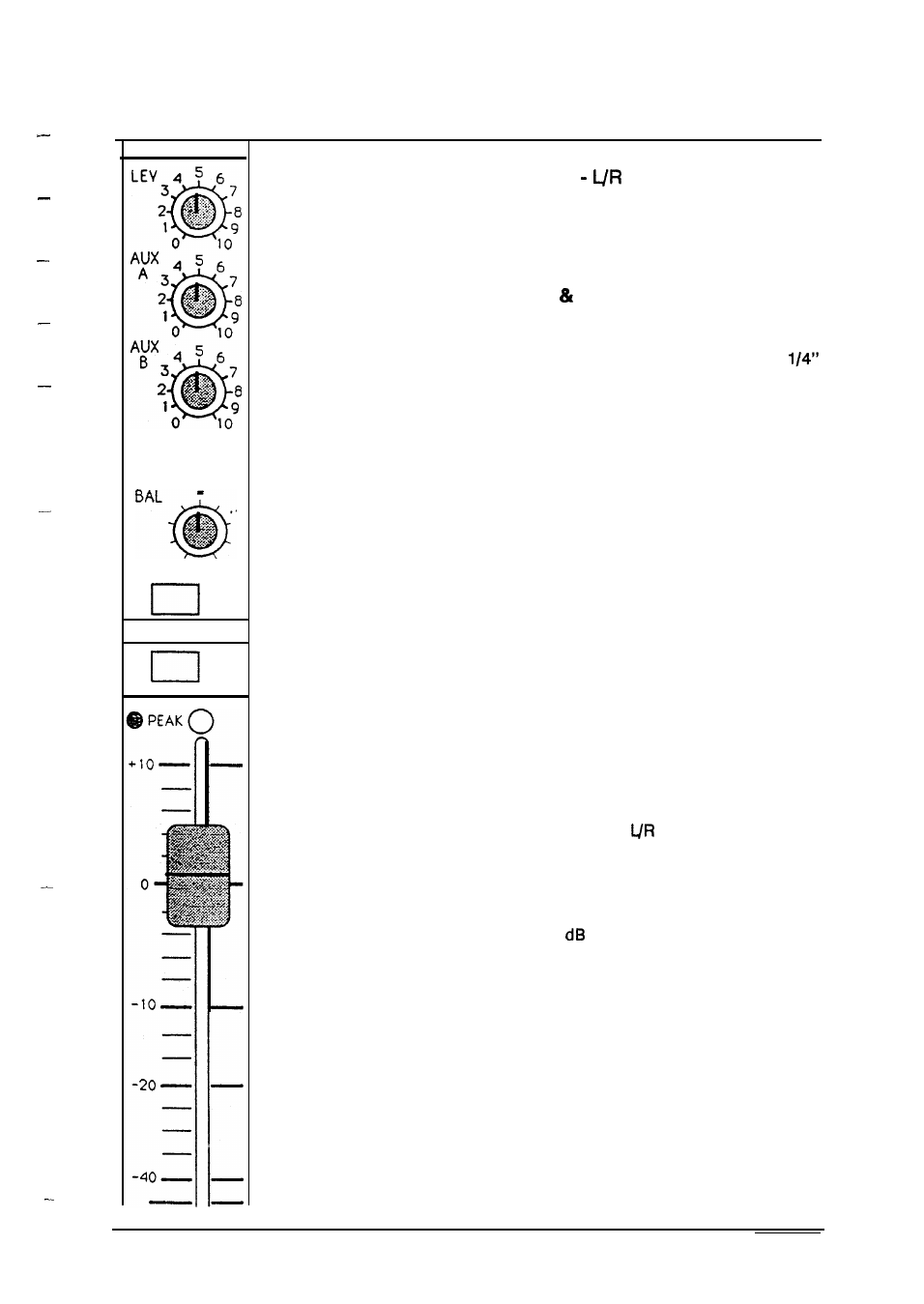

LEFT/RIGHT SECTION Left is Shown

References in ( ) are for Right Master

3.

STEREO RETURN 1 (2)

The two STEREO RETURN inputs allow STEREO input signals

(i.e. the output of stereo tape machines or stereo effects

devices) to be mixed with the main outputs. The
TRS(stereo) jack accepts -10 levels; Left on Tip, Right on Ring.

Each STEREO RETURN includes

a

LEVEL control, AUX

SENDS A & B, a MONO switch which mixes Left and Right
input signals together, a BALANCE control, MUTE and PFL
switch.

4.

L(R) PEAK INDICATOR LED’

Illuminates 3dB before the onset of

clipping. Monitors both

the summing amp and fader amp for overload.

5.

MASTER LEFT (RIGHT) OUTPUT FADERS

Controls the master level of the MAIN STEREO XLR outputs.

Normal position is at 0; 10

boost’is available if needed.
