4. Web Management
AirLive POE-FSH1008AT User’s Manual
33

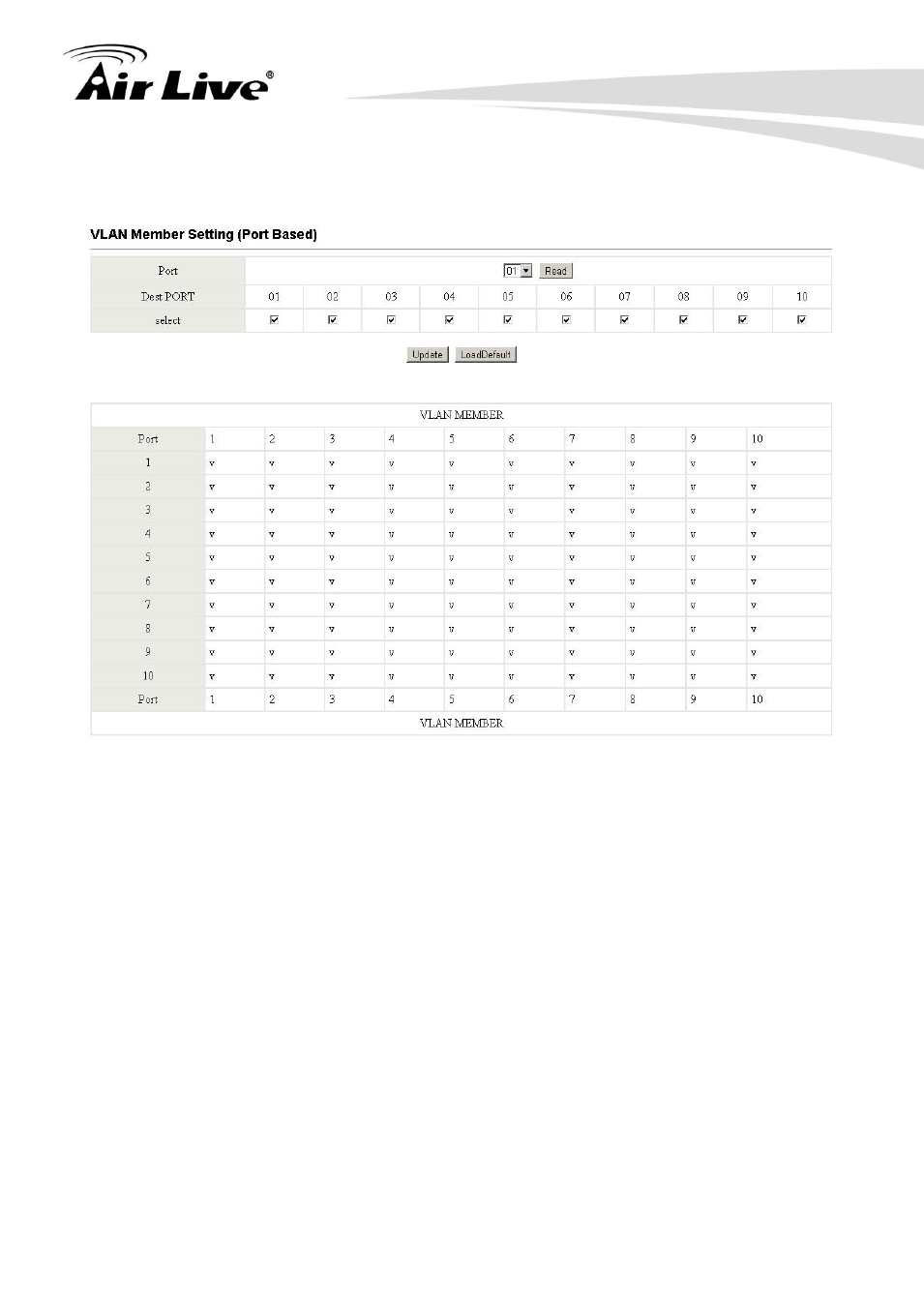

VLAN Member in Port Based Mode
In Port Based Mode you see a matrix of your 8 Ports. Simply select the port on top screen
you want to configure, click on Read, and then select or deselect the ports that are on the
same VLAN group. In this configuration mode you do not need to worry about defining
VLAN groups and VLAN IDs.
VLAN Member in Tag Based Mode
In Tag Based Mode you need to define and configure your VLAN groups. Since you want
the handover to other switches take place smoothly, the VLAN IDs (Numbers) need to be
like on the rest of your network. On other switches you may have the chance to configure
names. These are just for your reference. Only the numbers are important!
