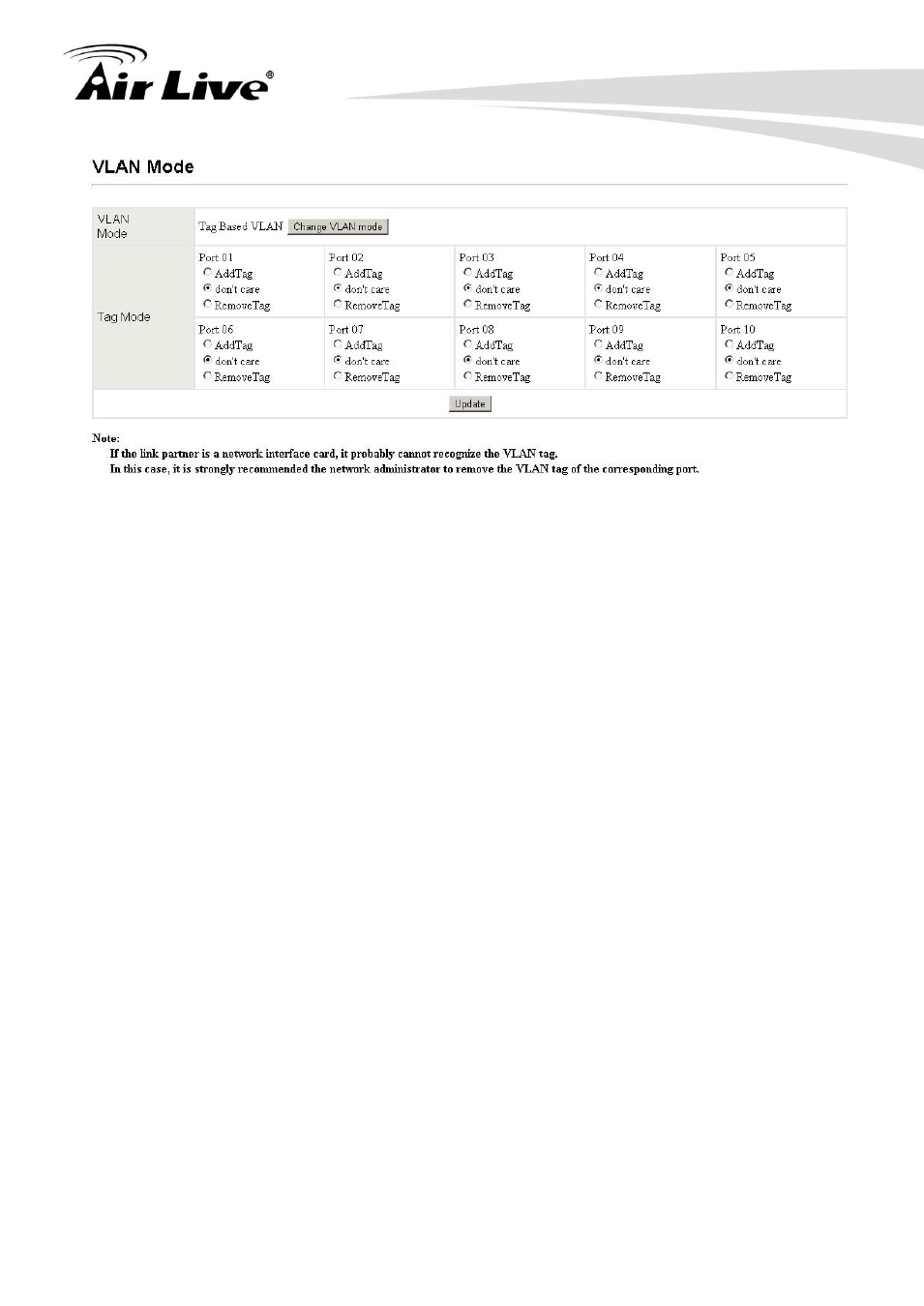

 VLAN Mode: Displays VLAN mode: port based/Tag based VLAN. Here you can also
switch back to Port Based VLAN Mode
 Tag Mode:
 Add Tag: The outgoing packet of the selected port will be inserted a 802.1Q tag. Use
this setting for your Up and Downlink Ports in your VLAN Tagged Network.
 Don’t care: Don’t care means the outgoing packet of the selected port keep the
original packet received at the source port. This is the default setting when starting
VLAN configuration. You should change to either Add or Remove Tag.
 Remove Tag: Remove tag means the 802.1Q tag of the outgoing packet of the
selected port will not be sent. Use this setting for your Network Connections to PCs.
Only packets of the VLAN Group the Port is member of will be sent.
4.7.2 VLAN Member
The ports need to be made member of your VLAN groups. This is for Tag Based and Port
Based VLAN Mode. The screen here looks different whether you run Tag Based or Port
Based Mode.
