6.1 Electrical
Connections
Before making electrical connections, verify that the power source voltage matches the
voltage on the
ELECTRICAL SPECIFICATION PLATE
and that the
ON/OFF SWITCH
is on the
OFF
position. The
ELECTRICAL SPECIFICATION PLATE
is located on the rear panel of the
unit near the
POWER CONNECTOR
. Connect the
POWER CORD
to the
POWER
CONNECTOR
(Universal Voltage Input Module) on the rear panel, then connect the other
end to a suitable, grounded receptacle.
6.2
Starting the Shaker
To initially start the shaker, close the lid and turn the
ON/OFF SWITCH
on the right side
panel of shaker to the
ON
position. During start-up, the
LED DISPLAY
will indicate the
model of your shaker. When the shaker begins to operate, the
LED DISPLAY
will track the
speed as it accelerates to the last entered setpoint. The shaking action may be started or
stopped by pressing the
START/STOP KEY
on the
KEYPAD
.

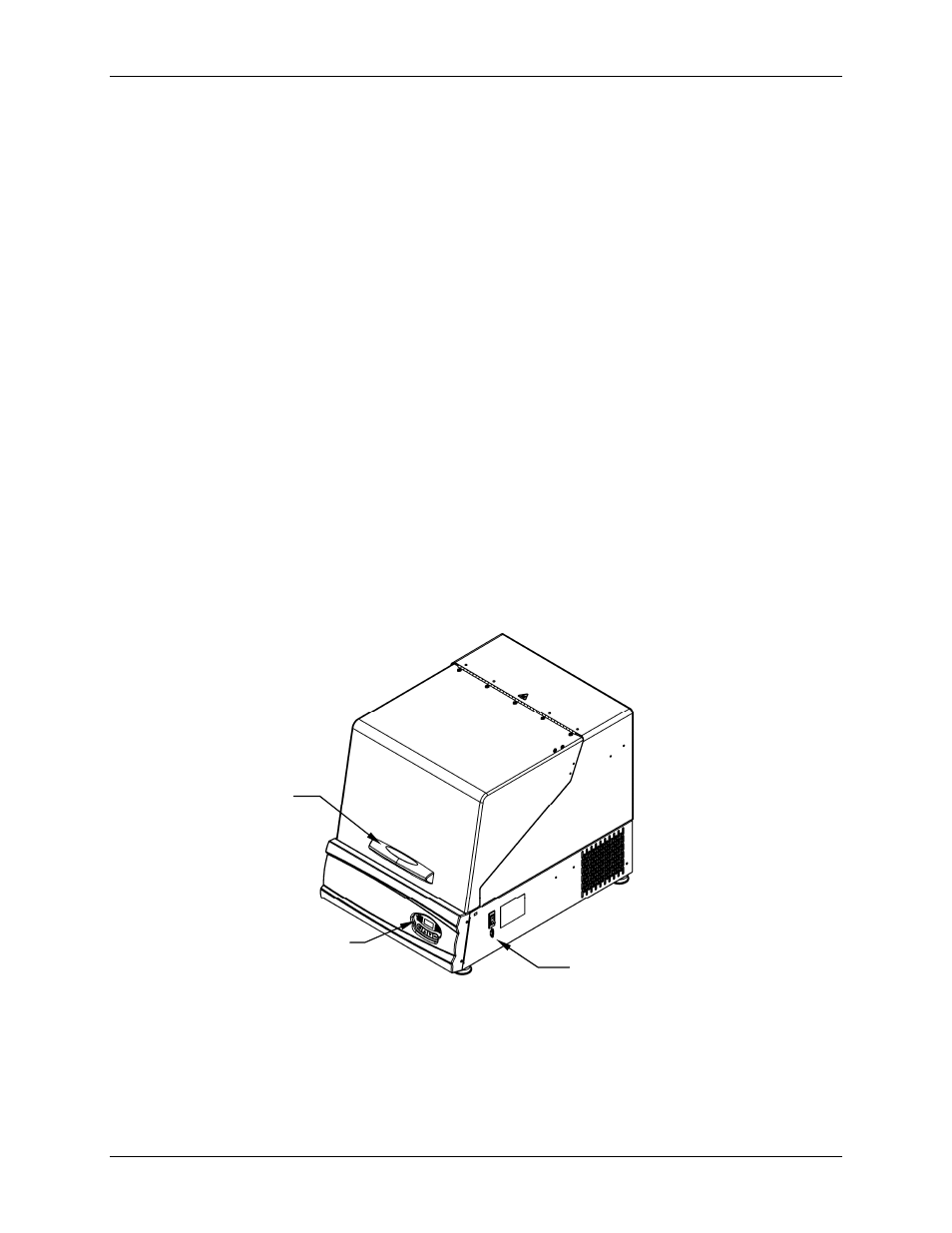

Figure 5: ON/OFF Switch Location
NOTE:
The shaker will not operate if the lid is open.
LID
HANDLE
ON/OFF SWITCH
KEYPAD
