Excella E-24/24R Incubator Shakers  M1352-0050 Operating Manual

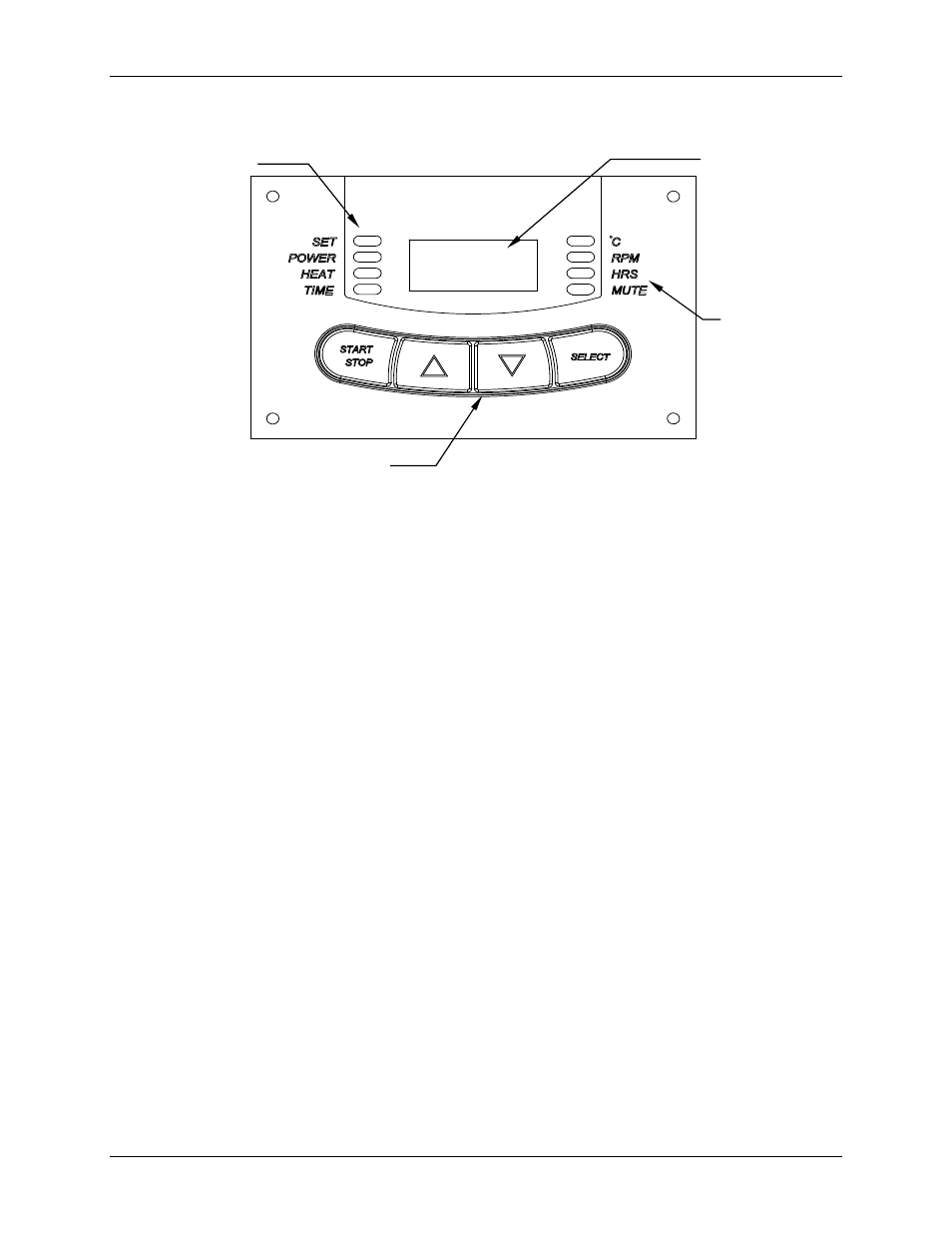

Figure 4a: Keypad
5.1.2 User Interface Keys

START/STOP This key is used to start or stop the shaker. It will
also activate or stop the timer when a timed run is
desired.

SELECT This key is used to change the displayed parameter.

(UP), (DOWN) These keys are used to adjust the setpoint of a
displayed parameter up or down. They also allow
the user to enter the
SET MODE for setpoint
changes.
5.1.3 LED Display
The digital display on the control panel is a three-digit LED DISPLAY . During
normal shaker operation, the display will indicate:
 Shaker status (On/Off)
 Shaking speed
 Chamber temperature
 Setpoints
 Hours remaining (in a timed run)
 Lid open (“
LID ”)
USER INTERFACE
KEYS
LED
DISPLAY
STATUS
INDICATORS
FUNCTION
INDICATORS
