Excella E-24/24R Incubator Shakers  M1352-0050 Operating Manual
4 4 I I
N N S S T T A A L L L L A A T T I I O O N N
4.1 Installation of Platform

NOTE:
There are two small plastic straps that hold the bearing housing in place for
shipping. The straps must be removed from the unit.
Prior to use, a platform must be installed on the unit. The unit is shipped with four
Allen head
PLATFORM SCREWS installed in the SUBPLATFORM of the BEARING
HOUSING . These screws must be removed and set aside for use before a platform can be
installed:

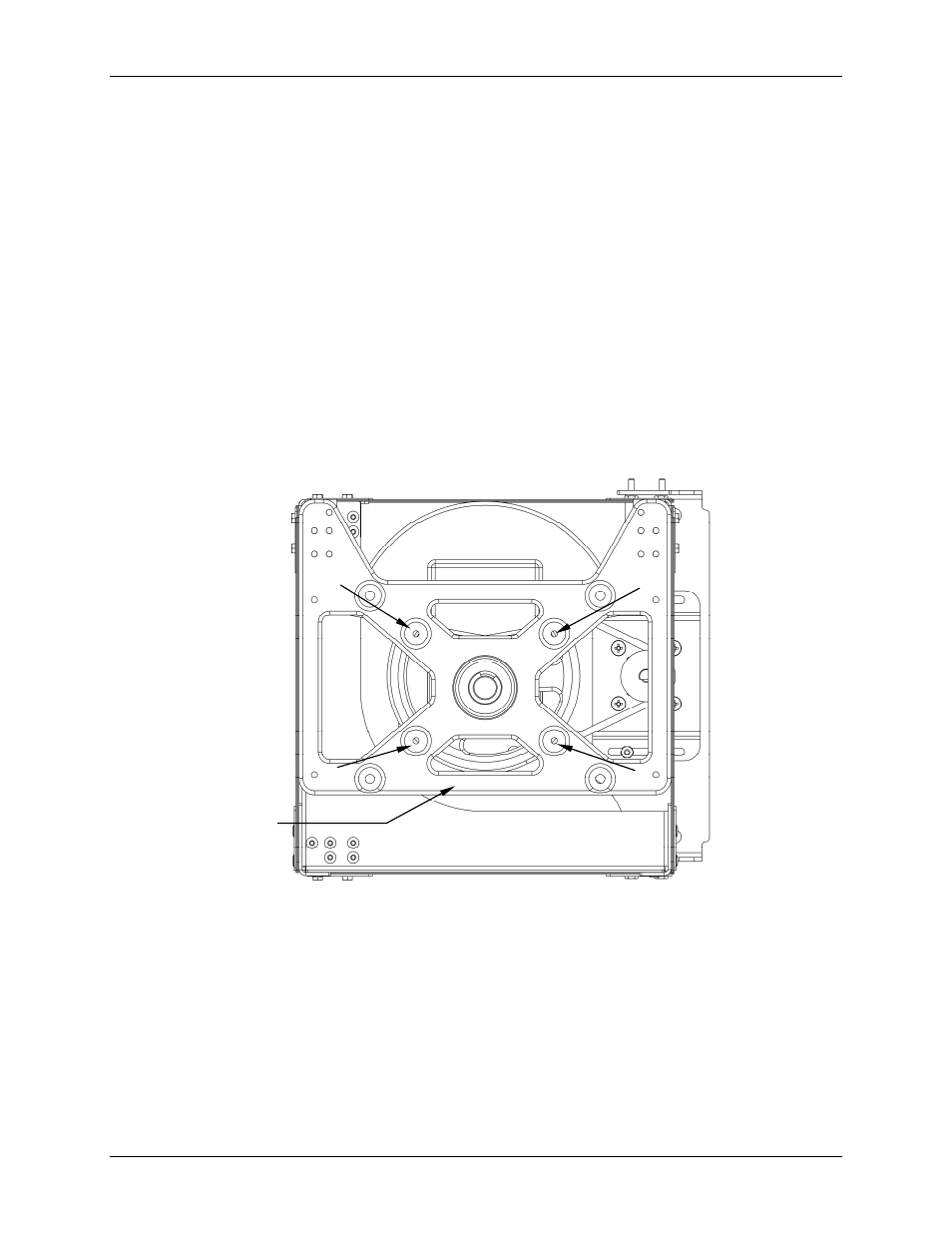

Figure 2: Platform Screw Locations
1. Using the 7/32-inch hex wrench provided, remove the four Allen head platform
screws from the subplatform. Set them aside.
2. Place the selected PLATFORM on the subplatform. Align the mounting holes of the
platform with the platform screw locations in the subplatform.
3. Insert the four Allen head platform screws previously removed and set aside. Tighten
them with the 7/32-inch hex wrench provided to secure the platform.
SUBPLATFORM
