Eppendorf PiezoXpert™ — Operating manual
16
4.4 Connecting PiezoXpert and the actuator
Requirement
•
PiezoXpert is switched off.
•
The power plug is disconnected.
1. Connect the actuator cable to the "Actuator connection" 7.
2. Connect the foot control to the "Connection for foot control" 5.
3. Optional: Connect the pressure tube (from CellTram or FemtoJet) to the actuator (pressure
tube connection).
4. Plug the power cable into the "Power connection socket" 4.
5. Plug the power plug into the socket.
6. Switch on the PiezoXpert at the power switch.
WARNING!
WARNING! Risk from incorrect supply voltage
Only connect the device to power supplies which correspond with the electrical
requirements on the nameplate.
NOTICE!
NOTICE! Material damage from incorrect connections.
Only electrical connections may be made to devices described in the operating
manual.
Other connections are permitted only following consultation and agreement with
Eppendorf AG.
Only devices which comply with safety requirements according to IEC 60950-1 may
be connected.

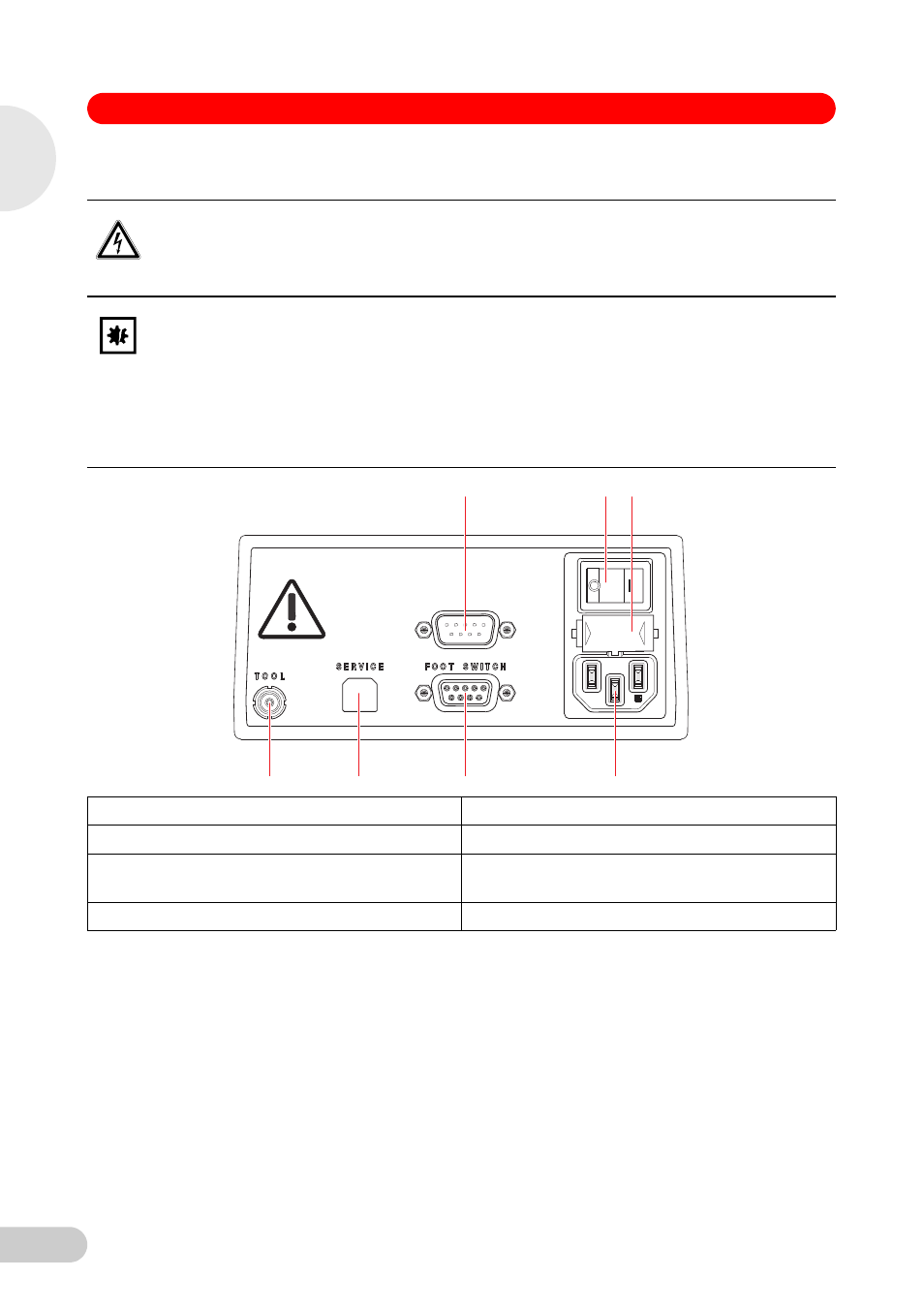

1 Connection (currently non-functioning) 2 Power switch
3 Fuse holder 4 Power connection socket
5 Connection for foot control 6 USB interface (only for Technical
Service)
7 Actuator connection
1 2 3
4 5 6 7
