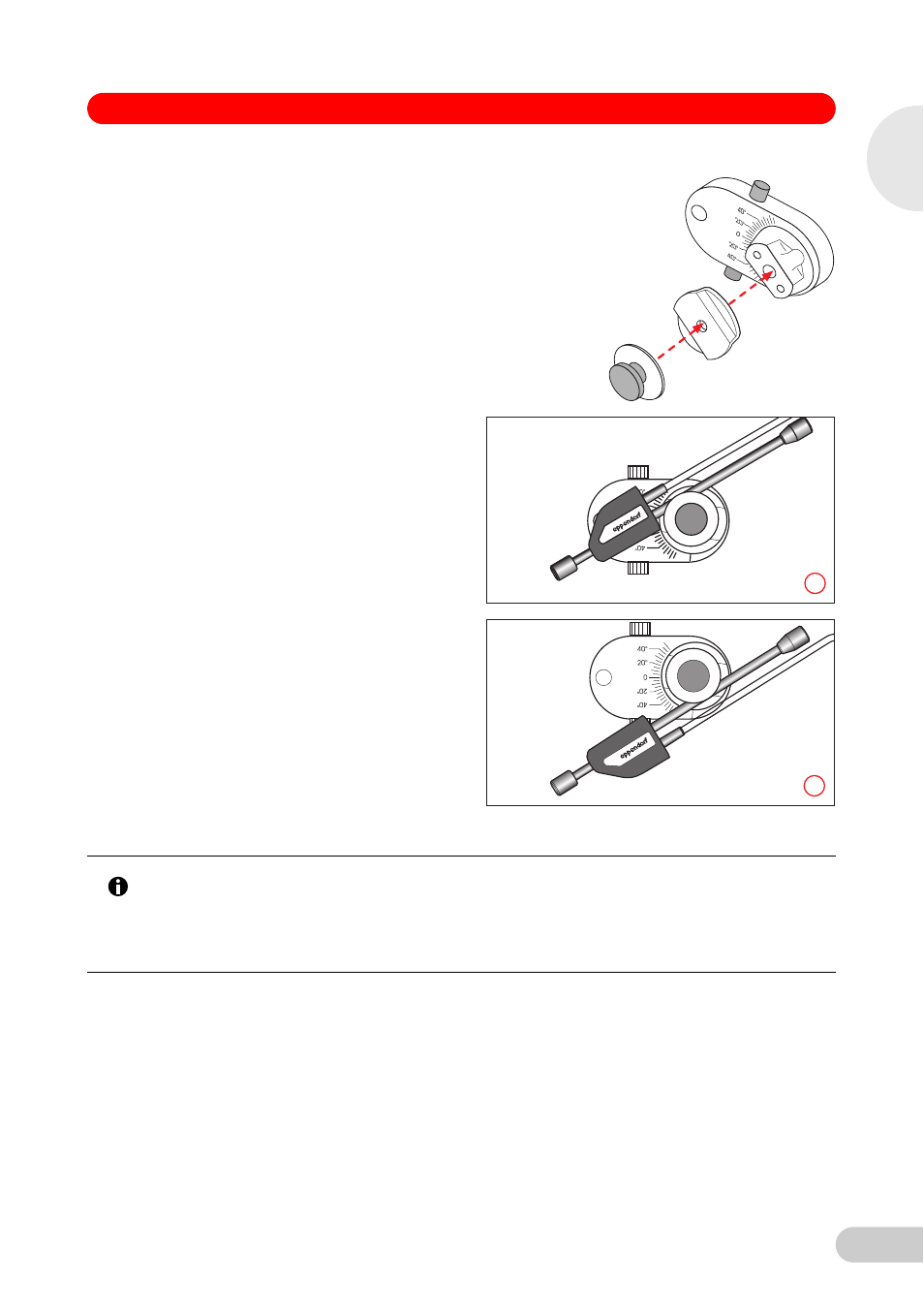

7. Set an angle between 0° and 25°. The flatter the angle, the more direct the effect of the
piezo impulses.
4. Place the provided spacer plate on the bore
of the X head.
Secure the spacer plate using the knurled
screw and pressure plate.
5. Place the actuator in the upper (1) or lower
(2) groove of the spacer plate.
6. Tighten the knurled screw to secure the
actuator between the spacer plate and
pressure plate.
1
2
Hint!
The PiezoXpert will only optimally transmit the piezo impulses to the capillaries if it is
firmly mounted.
•
Ensure that the actuator is secured and cannot be moved in the support.
•
Ensure that the piezo element is not pushed against a surface while it is warped.
