45
4
7
8
6
12
9
3
10
5
13
15
16

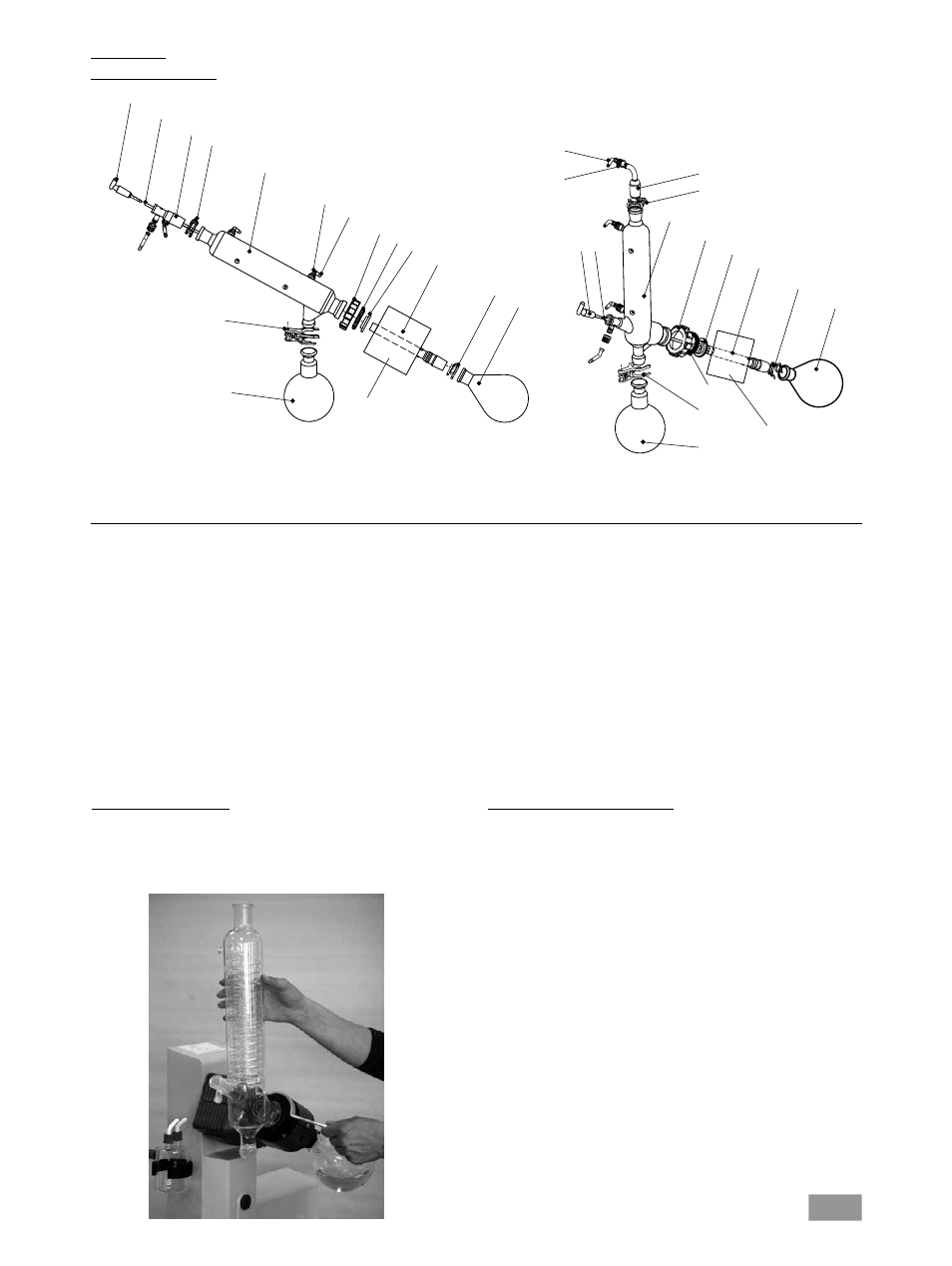

Rotary head
Glassware
RV 10.2 diagonal
RV 10.20 diagonal, coated
Glassware
RV 10.1 vertical
RV 10.10 vertical, coated
Rotary head
2
10 00 m l
N S2 9/ 32
1
11
13
12
5 4
7
8
6
15
9
3
2
10
16
11
1
10 00 m l
N S2 9/ 32
Glassware
Item Designation Quantity Quantity
diagonal glassware vertical Glassware
1 Receiving flask 1 1
2 Clamp NS 29 (stainless steel) 1 1
3 Steam pipe 1 1
4 Stopcock 1 1
5 Pipe tube 1 1
6 Condenser 1 Diagonal condenser 1 Vertical condenser
7 Connection 1 Introduction sleeve 1 Vacuum connection
8 Clamp NS 29 (plastic) 1 1
9 Seal RV 10.8001 1 1
10 Evaporator piston 1000 ml 1 1
11 Ball joint clamp RV 05.10 1 1
12 Screw joint cap 4 4
13 Hose connection 4 4
15 Locking nut 1 1
16 Spring ring 1 1
Description of special condensers
• RV 10.3 Vertical-intensive condenser with manifold
This vertical-intensive condenser features a double jacket design for
particularly efficient condensation.
Also available with coating (RV 10.30)
• RV 10.4 Dry ice condenser
Dry ice condenser for distilling low-boiling solvents.
Cooling by dry ice, no cooling water required. Maximum condensation
thanks to low temperatures.
Also available with coating (RV 10.40)
(Cannot be used in automatic mode for the RV10 control)
• RV 10.5 Vertical-condenser with manifold and cut-off valve for
reflux distillation
Also available with coating (RV 10.50)
• RV 10.6 Vertical-intensive condenser with manifold and cut-off
valve for reflux distillation
This vertical-intensive action condenser features a double jacket design
for particularly efficient reflux distillation.
Also available with coating (RV 10.60)
Removing the condenser

Use the ring spanner provided to loosen union nuts that are tightly
fitted.
 Loosen the union nut by turning anticlockwise.
 Remove the Velcro ® .
Fig. 13
Mounting the glassware
