G Wireless Router
sections
table of contents 1 2 3 5 6 7 8 9 10 4
ConneCTInG and ConfIGURInG yoUR RoUTeR

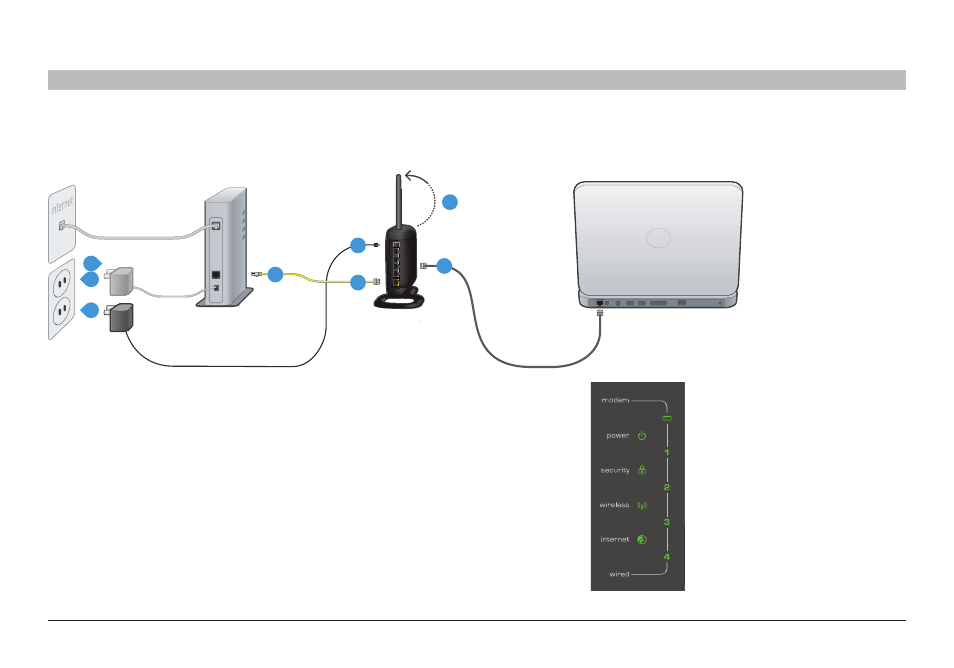

step 1: Hardware Connections
a� Unplug your modem’s power cord� Put the Router next to the
modem� Raise the Router’s antenna�
b� Locate the networking cable that connects your modem and
computer� Unplug that cable from your modem, and plug it into any
gray port on the back of the Router�
C� Find your new networking cable (included in the box with your
Router) and connect it to the yellow port on the back of the Router�
Connect the other end to your modem, in the port that’s now free�
d� Plug in your modem’s power cord� Wait 60 seconds for the modem
to start up� Plug the Router’s power supply into the black port on
the back� Plug the other end into the wall outlet�
e� Wait 20 seconds for the
Router to start up� Look
at the display on the front
of the Router� Make sure
the “Wired” and “Power”
icons are lit up in blue�
If they are not, recheck
your connections�
