AB60J – 0182099EE 43
Chapter 9 – Stowing and Transporting
To prevent unauthorized use and damage, properly stow
the aerial platform at the end of each work day. It must
also be properly stowed while transporting.
Stowing

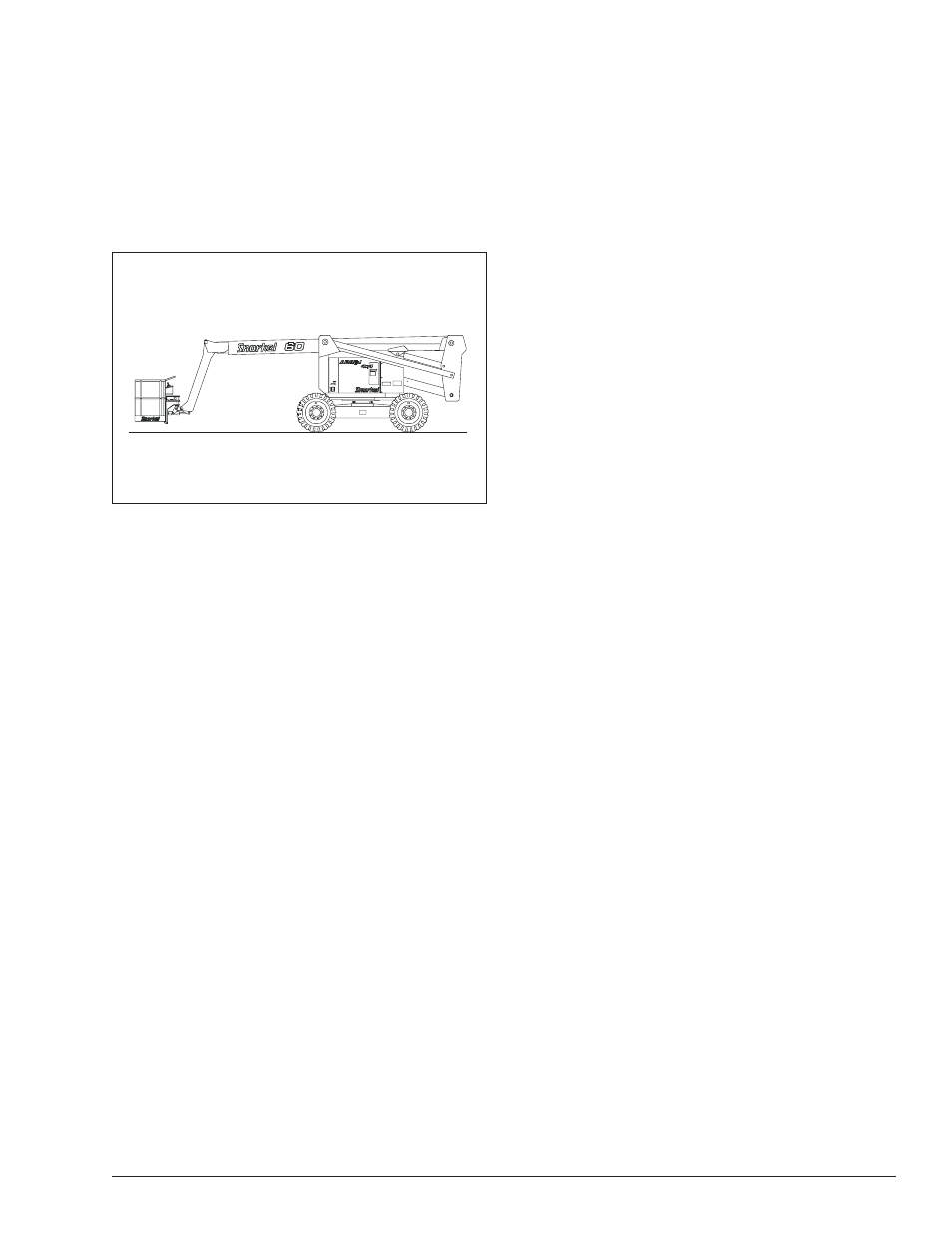

The properly stowed position is shown in Figure 9.1.
Figure 9.1 – Stowed Position
Use the following procedure to properly stow the aerial
platform.
1. Rotate the platform so it is perpendicular to the end
of the boom.
2. Fully retract the tip boom and then fully lower the
riser and main booms.
3. Lower the jib boom until the foot on the jib is near
the ground to allow for exiting the platform
4. Center the booms between the rear wheels.
5. If the engine has just been under load and is hot,
set the throttle switch to low and let the engine idle
for five minutes.
6. Turn the start switch off and place the platform con-
trol box cover over the upper controls if the machine
is equipped with that option.
7. Push the lower controls emergency stop button in-
ward. Turn the control selector switch off and re-
move the key.
8. Turn the battery disconnect switch off.
9. Close and latch the cowling doors.
Transporting
The aerial platform may be moved on a transport ve-
hicle. Depending on the particular situation, the aerial
platform may be driven, winched, or hoisted onto a ve-
hicle such as a truck or trailer. Driving is the preferred
method.
A
Danger
The aerial platform can tip over if it becomes un-
stable. Death or serious injury will result from a tip-
over accident. Do not drive on ramps that exceed 20
percent grade, or where conditions of the ramp could
cause driving to be hazardous.
Drive the aerial platform onto the transport vehicle if the
ramp incline is within the 20 percent grade capability of
the aerial platform.
A 20 percent grade is a 61 cm (24 ″) vertical rise in 3.05
m (10 ′) horizontal length.
Use a winch to load and unload the aerial platform on
ramps that exceed 20 percent grade. A winch may also
be used when conditions of the ramp could cause driv-
ing to be hazardous.
The equipment used to load, unload, and transport the
aerial platform must have adequate capacity. Refer to
Chapter 2 to determine the approximate weight of the
aerial platform.
The user assumes all responsibility for choosing the
proper method of transportation, and the proper selec-
tion and use of transportation and tie-down devices,
making sure the equipment used is capable of support-
ing the weight of the aerial platform and that all
manufacturer’s instructions and warnings, regulations
and safety rules of their employer, the DOT and/or any
other state or federal law are followed.
Driving
Use the following procedure to drive the aerial platform
onto the transport vehicle.
1. Locate the transport vehicle so it is in a straight line
with the loading ramp.
2. Chock the vehicle wheels so it cannot roll away from
the ramp while the machine is loaded.
3. Remove any unnecessary tools, materials, or other
loose objects from the platform.
4. Drive the machine to the foot of the loading ramp
with the front wheels nearest the ramp. Make sure
the machine is centered with the ramps and that the
steering wheels are straight.
5. Rotate the platform so it is perpendicular to the
boom.
