Chapter 4 – Safety Devices
12 AB60J – 0182099EE

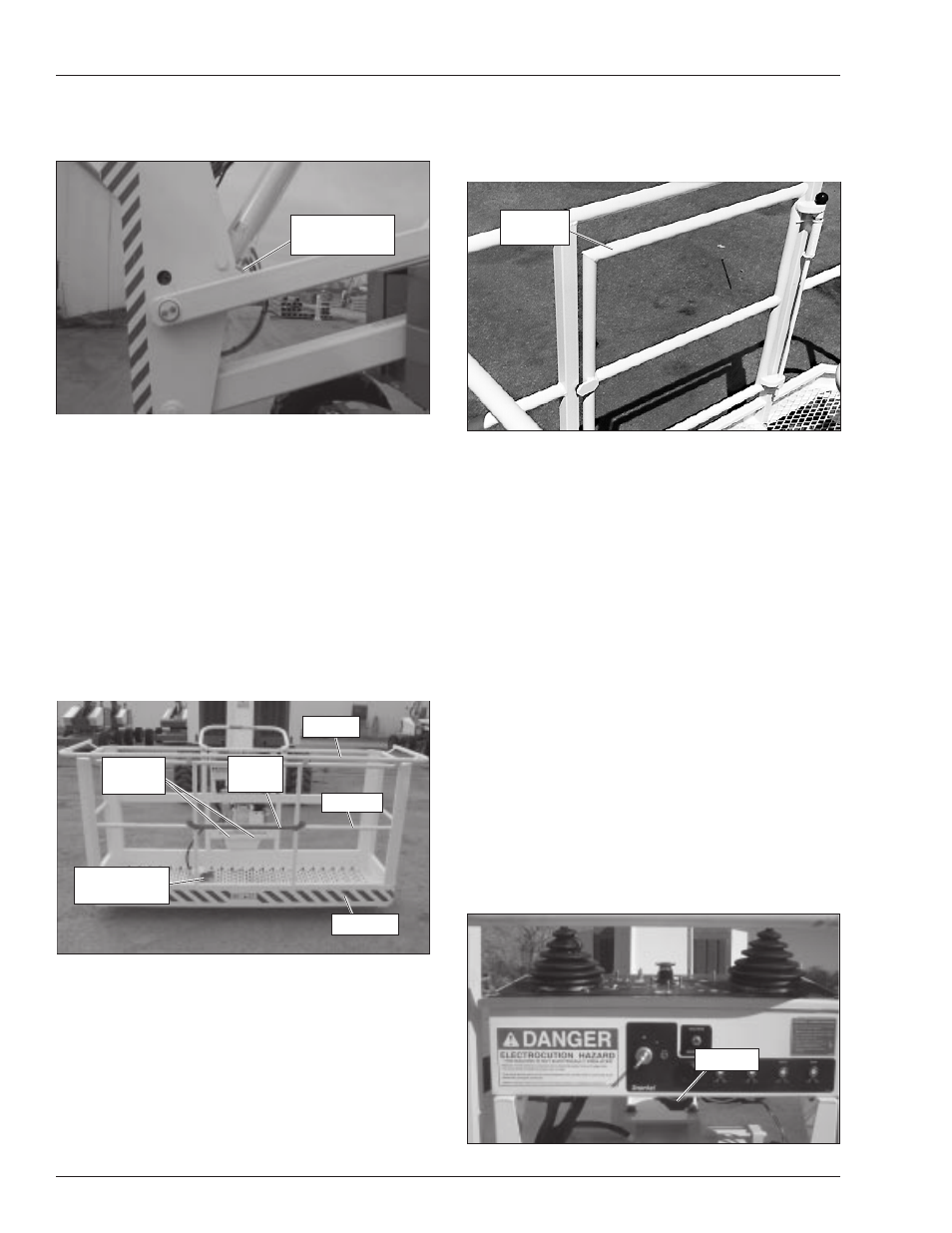

A gravity gate (refer to Figure 4.5) or an optional swing-
ing gate (refer to Figure 4.6) allows for access to the
platform.
Figure 4.6 – Platform
The gates close automatically after entering or exiting
the platform. The gate is part of the guardrail system
and must be securely fastened after entering the plat-
form.
Lanyard Anchors
Two lanyard anchors for fall restraint anchorage are pro-
vided below the upper controls at the front of the plat-
form (refer to Figure 4.4).
Note
The lanyard anchors are not for lifting or tying the ma-
chine down.
All personnel in the platform must connect their fall re-
straint device to a lanyard anchor before raising the plat-
form. Do not use the aerial platform for personal fall ar-
rest anchorage.
Tilt Alarm
If the aerial platform chassis is out of level more than
3.5 degrees when the main boom is raised or extended,
an alarm will sound. The tilt alarm is located under the
upper control box (refer to Figure 4.7).
Figure 4.7 – Tilt Alarm
The main boom knob (refer to Figure 4.4) is behind the
floating turret.
Figure 4.4 – Main Boom Emergency
Lowering Knob
Ground Operation Switch
The ground operation switch (refer to Figure 4.1) pre-
vents boom and platform movement if a control switch
on the lower control panel is accidentally moved.
Hold the switch up to operate the machine from the lower
controls.
Platform Foot Switch
Stepping down on the platform foot switch (refer to Fig-
ure 4.5) activates the upper controls.
Figure 4.5 – Platform
The foot switch must be engaged and a control must be
moved to operate the boom, drive, and/or platform from
the upper controls.
Guardrails
The guardrail system includes a top rail, mid rail, and
toeboards around the sides of the platform (refer to Fig-
ure 4.5).
Emergency
Lowering Knob
Mid Rail
Lanyard
Anchors Gravity
Gate
Top Rail
Platform Foot
Switch
Toeboard
Swinging
Gate
Tilt Alarm
