2. Enter the platform and securely close the gate.
3. Attach the fall restraint lanyard to one of the anchor
points.
4. Pull the emergency stop outward (refer to Figure
8.2).

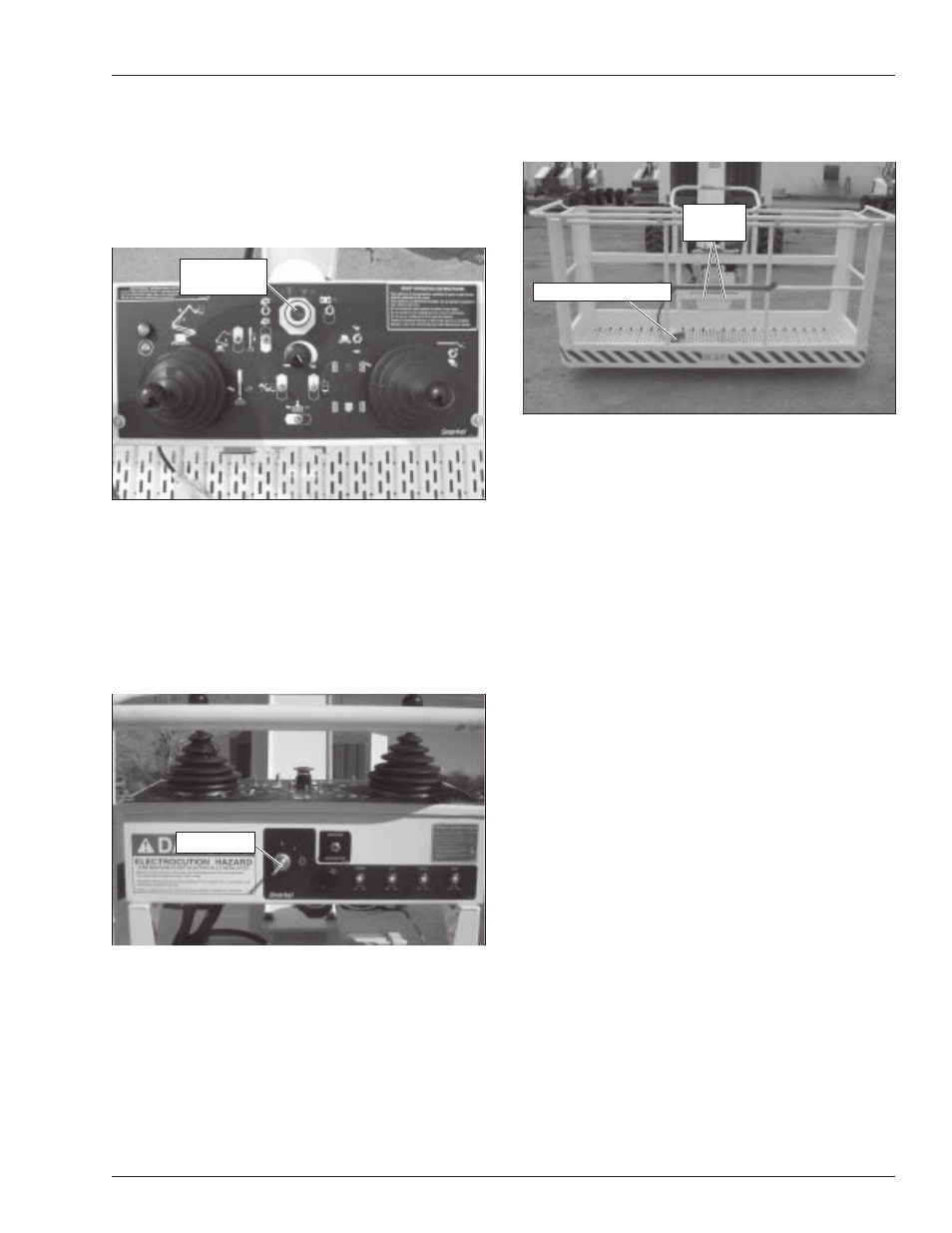

Figure 8.2 – Upper Control Panel Top
5. Turn the anti-restart master switch (refer to Figure
8.3) to on and pause a few seconds while the alarm
sounds to alert others that the machine is about to
start. Turn the switch to start, then release it to on.
The engine will not start if the switch is left in the on
position for 30 seconds or longer before turning it to
start. The switch must be turned back to off before
the engine will start.
Figure 8.3 – Upper Control Panel Front
6. Let the engine warm to operating temperature.
Boom Operation
Use the following procedure to operate the turntable,
boom, or platform functions.
1. Turn the boom speed knob to slow.
2. Place the drive/boom selector switch in the boom
position.
3. Step down on the platform foot switch. This switch
must be held down to operate the upper controls.
Figure 8.4 – Platform
4. Hold the appropriate control in the desired direc-
tion. Always look in the direction of movement.
5. Gradually turn the boom speed knob to control the
riser boom, jib boom, main boom extend and plat-
form level function speeds.
6. Releasing the control to its neutral position, or re-
leasing the foot switch will stop movement.
Driving and Steering
A
Danger
The aerial platform can tip over if it becomes un-
stable. Death or serious injury will result from a tip-
over accident. Do not drive an elevated aerial plat-
form on soft, uneven, or sloping surfaces. Do not
drive the machine on grades that exceed 20 percent.
For operation on grades up to 20 percent, it is recom-
mended that the riser and main booms be fully lowered
and the jib elevated just enough to provide adequate
ground clearance. A 20 percent grade is a 61 cm (24 ″)
vertical rise in 3.05 m (10 ′) horizontal length.
Avoid driving with the platform over the front (steer) end
of the chassis. In this position the machine is difficult to
control because:
• drive and steer control movements and their result-
ing machine movements are reversed.
• when driving fast, sudden turns or stops produce
more severe reactions to platform occupants.
• more turning space is required to prevent the plat-
form from colliding with obstacles several feet be-
yond the path of the tires.
Emergency
Stop Button
Start Switch
Lanyard
Anchors
Platform Foot Switch
