Chapter 8 – Operation
42 AB60J – 0182099EE

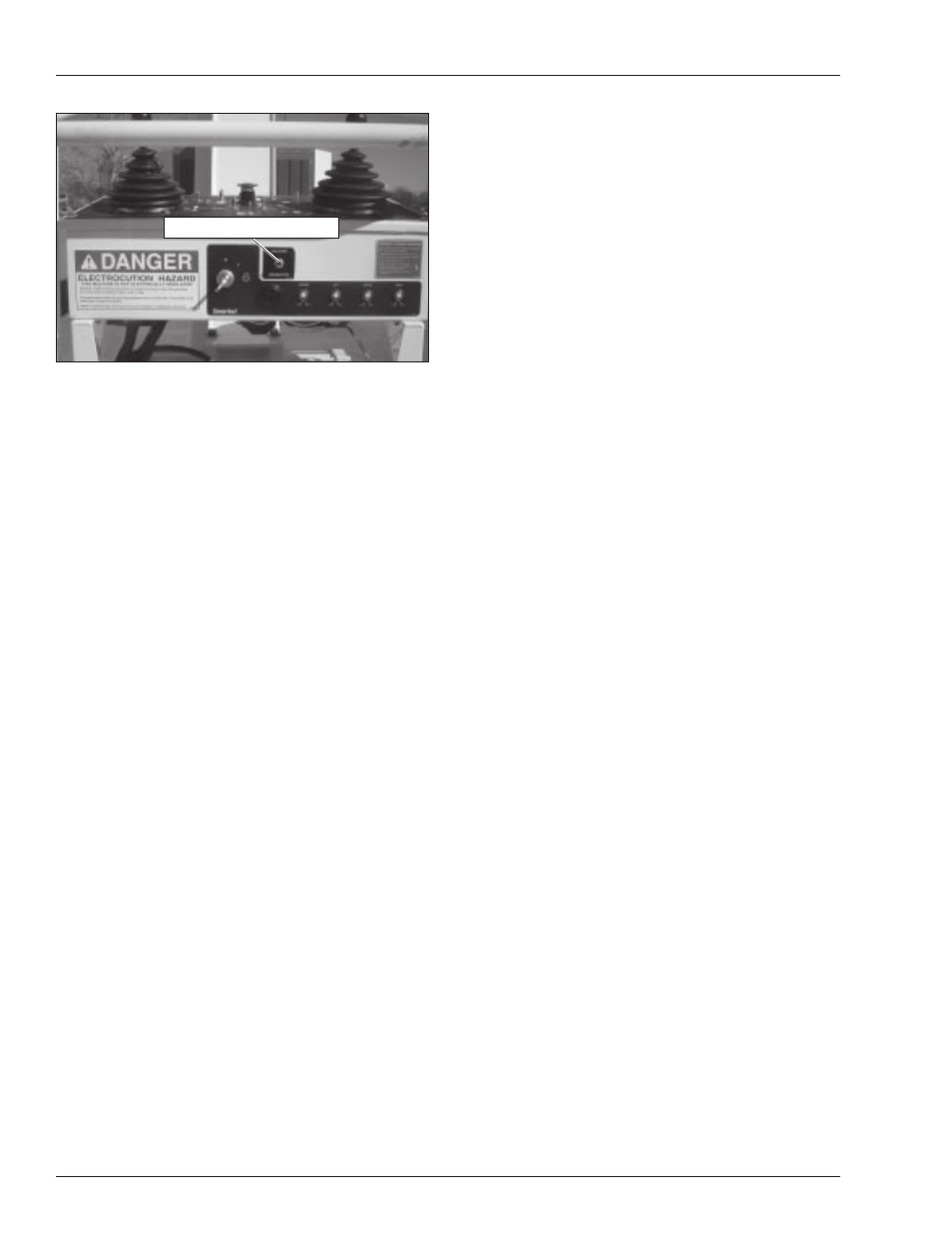

Figure 8.7 – Upper Control Panel Front
The engine will run at high idle while the generator is
operating. The generator will continue to operate as long
as the engine is running and the switch is in the genera-
tor position.
Air Line
The optional air line may be used to conduct air for tool
operation at the platform. The input connector is at the
rear of the chassis and the output connector is at the
platform on the rotator guard. The maximum working
pressure of the line is 1,723 kPa (250 psi).
The air line may be used to conduct fluids such as wa-
ter or antifreeze. Contact Snorkel for compatibility infor-
mation before using the air line to conduct other fluids.
A
Caution
Fluid in the air line can damage some air tools or
freeze and damage the line. Drain and blow out the
air line after using it to conduct fluids.
Use the following procedure to drain the air line.
1. Close the input connector on the chassis.
2. Open the output connector at the platform.
3. Raise the boom slightly above horizontal.
4. Open the input connector on the chassis.
5. Allow the fluid to drain from the line.
6. Lower the boom and close both connections.
Driving Lights
The optional driving lights are for use in dimly lit areas
and are not intended for driving on public roadways.
There are two headlights at the front of the chassis and
two blinking taillights at the rear of the chassis.
The lights are operational when the battery disconnect
switch and the master switch are turned on.
Note
Working with the driving or platform work lights on, while
the engine is off, can discharge the batteries enough
that the engine will not start or the emergency power
system will not operate. If the engine cannot be left run-
ning while the lights are on, start and run the engine for
at least 15 minutes each hour.
Platform Work Lights
The optional platform work lights are located on the top
rail of the platform. The direction a light points can be
adjusted by using two 1 /
2
″ wrenches to loosen the clamp
below the light.
The lights are operational when the upper controls emer-
gency stop button is pulled up and the anti-restart mas-
ter switch is turned on.
The engine speed increases to high idle when the plat-
form work lights are turned on.
Machine/Generator Switch
