Chapter 6 – Controls
20 AB60J – 0182099EE
Note
On some machines it may be necessary to pause about
three seconds in the on position before going to start so
the starter can engage.
Turn the switch to off to turn the engine off and save fuel
if the platform is to stay in a particular position for a long
time.
Drive/Boom Selector Switch
Place the drive/boom selector switch down in the drive
position to drive the aerial platform.
Place the drive/boom selector switch up in the boom
position to operate the boom functions.
Note
Boom and drive functions can not be operated at the
same time.
Boom Joystick
The boom joystick is used to raise and lower the main
boom and to rotate the turntable. The boom and turn-
table functions may be operated simultaneously.
Note
The distance the joystick is moved is proportional to the
speed of the function.
Hold the joystick forward to raise the main boom and
backward to lower the boom.
Hold the joystick to the right to rotate the turntable coun-
terclockwise and to the left to rotate the turntable clock-
wise.
Riser Boom Elevation Switch
The riser boom elevation switch is used to raise or lower
the riser boom. The switch is spring returned to the cen-
ter off position.
Hold the switch up to raise the riser boom. Hold the
switch down to lower the riser boom.
Boom Extension Switch
The boom extension switch is used to extend or retract
the tip boom. The switch is spring returned to the center
off position.
Hold the switch down to extend the tip boom. Hold the
switch up to retract the tip boom.
Jib Articulation Switch
The jib switch is used to raise or lower the jib. The switch
is spring returned to the center off position.
Hold the switch up to raise the jib. Hold the switch down
to lower the jib.

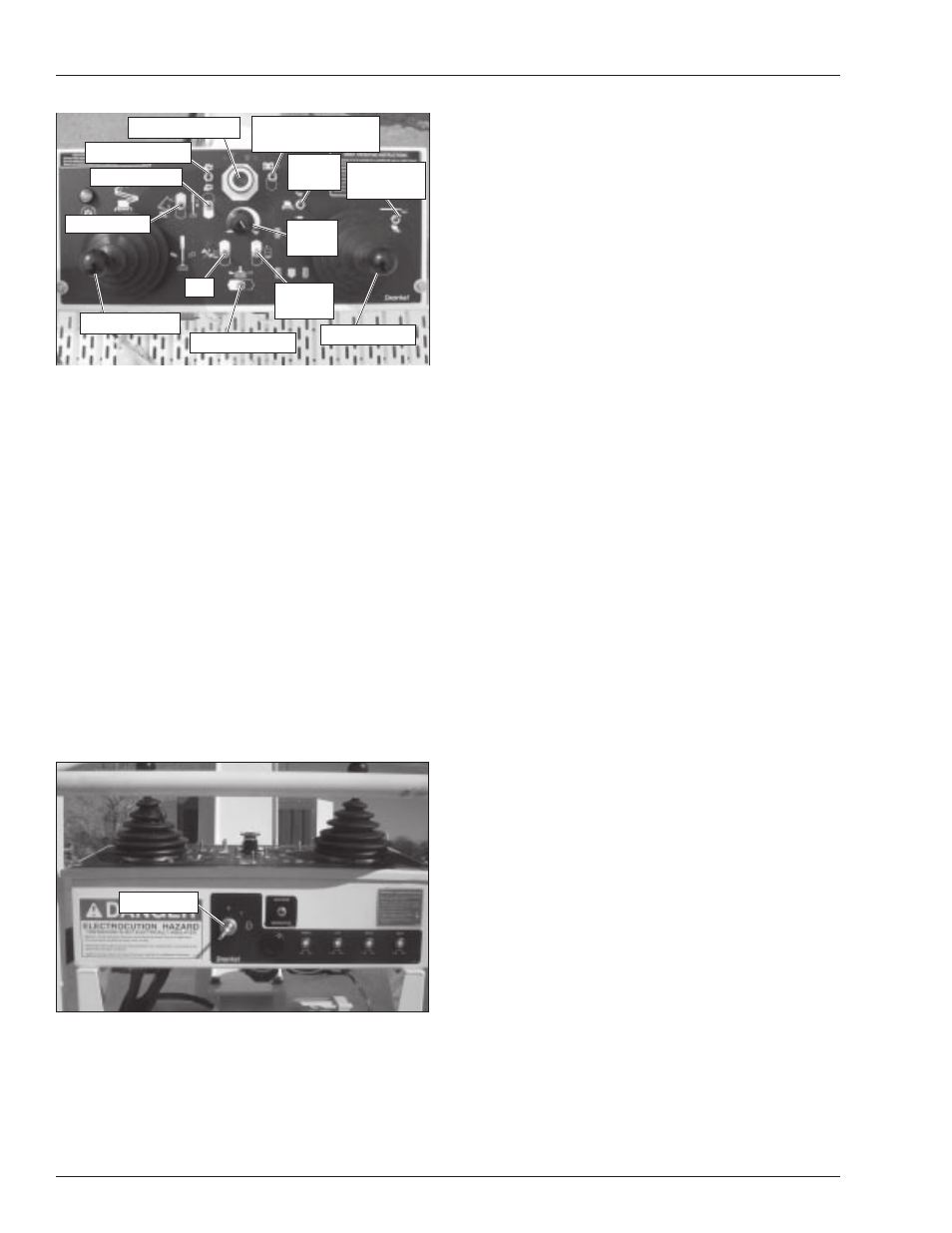

Figure 6.5 – Upper Control Panel Top
Emergency Stop Button
The emergency stop is a two-position, red push button
on the top of the upper control panel. Push the button in
to disconnect power to all control circuits at the upper
controls. Pull the button out to restore power.
Note
The lower controls override the upper controls. If the
upper control emergency stop button is engaged the
lower controls can still be used to operate the aerial plat-
form.
Push the emergency stop button in when the upper con-
trols are not in use to protect against unintentional op-
eration.
Start Switch
The engine can be started from the platform using the
anti-restart master switch on the front of the upper con-
trol panel (refer to Figure 6.6).
Figure 6.6 – Upper Control Panel Front
This switch is similar to an automobile ignition switch.
Turn the switch to start until the engine starts, then re-
lease it to on. If the engine dies, the switch must be
turned to off before it can be turned back to start.
An alarm sounds when the switch is turned on to warn
others that the machine engine is being started.
Engine Throttle
Platform
Level
Engine/Emergency
Power
Drive
Range
Speed
Knob
Emergency Stop
Boom Joystick
Platform Rotate
Drive/Boom
Selector
Drive Joystick
Boom Extend
Riser Boom
Jib
Start Switch
