26 508159-000 TL49K
1. Fully lower all the booms.
2.
Engage the Transit Pins, and lock in place using ‘R’ clip.
3.
With platform keyswitch set to ‘Ground’:
Raise the outriggers by simultaneously depressing the ‘MOTOR RUN
Outrigger’ button and using the appropriate control levers, two at a time,
alternating between the cage and tow bar end until the road wheels are in
contact with the ground.
Only when the road wheels are in contact with the ground should the unit be
lowered further until the jockey wheel makes contact with the supporting
surface.
Now fully raise the outriggers until they are in the stowed position.
Switch off the platform and ensure all loose items/covers are secure before
towing the unit.
The machine is now ready for transportation.

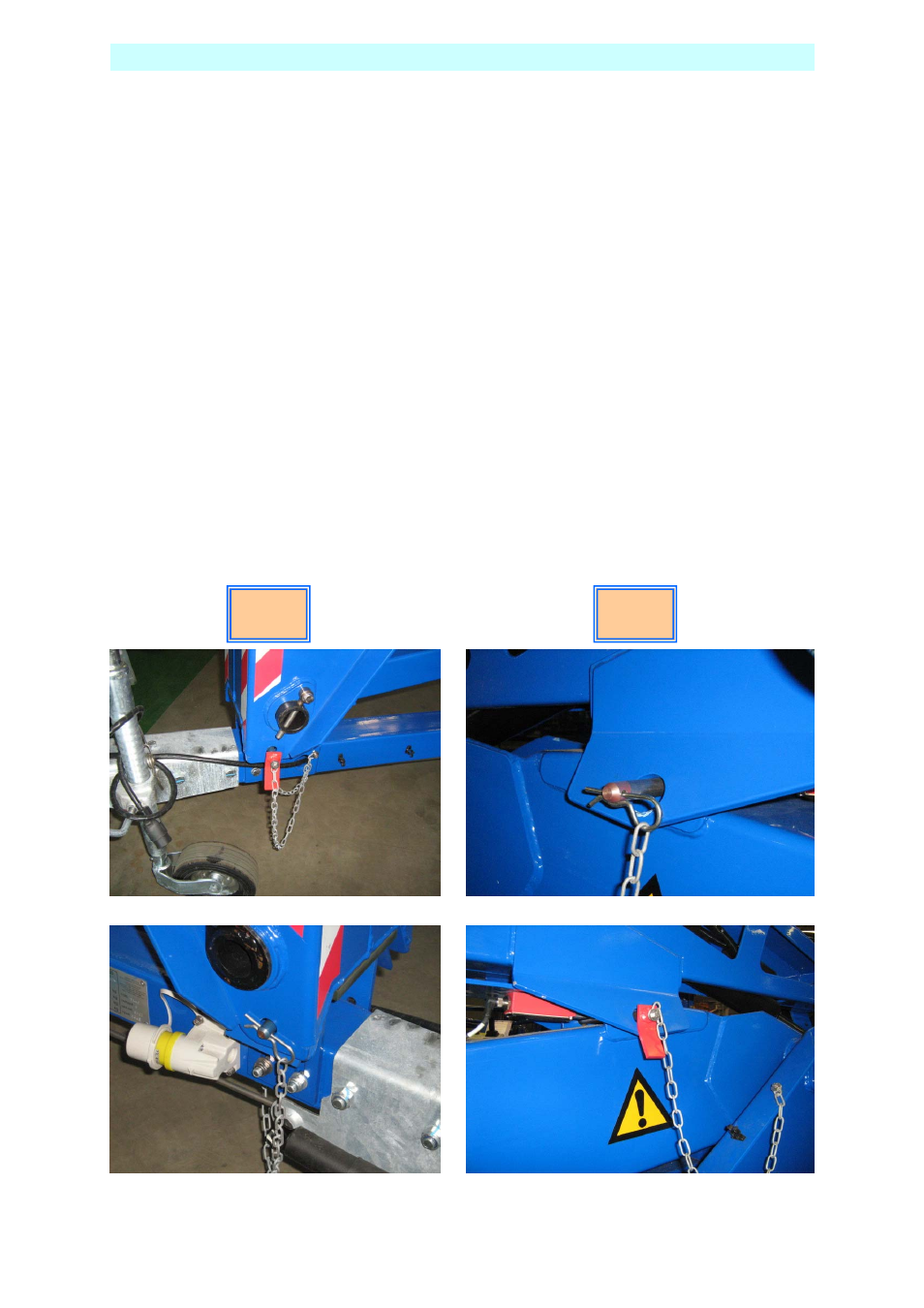

TRANSPORT PIN LOCATIONS – SHOWN READY FOR TRANSPORT
Lower
Boom
Upper
Boom
STOWING THE MACHINE
