5. A duplicate set of controls (excluding Slew Basket) is mounted on the Slew
Turret under the right hand side cover, which allows the platform to be
operated from the Ground.
6.
At the Ground Control Station, turn the key to ‘Ground’. (See Fig.3)
7.

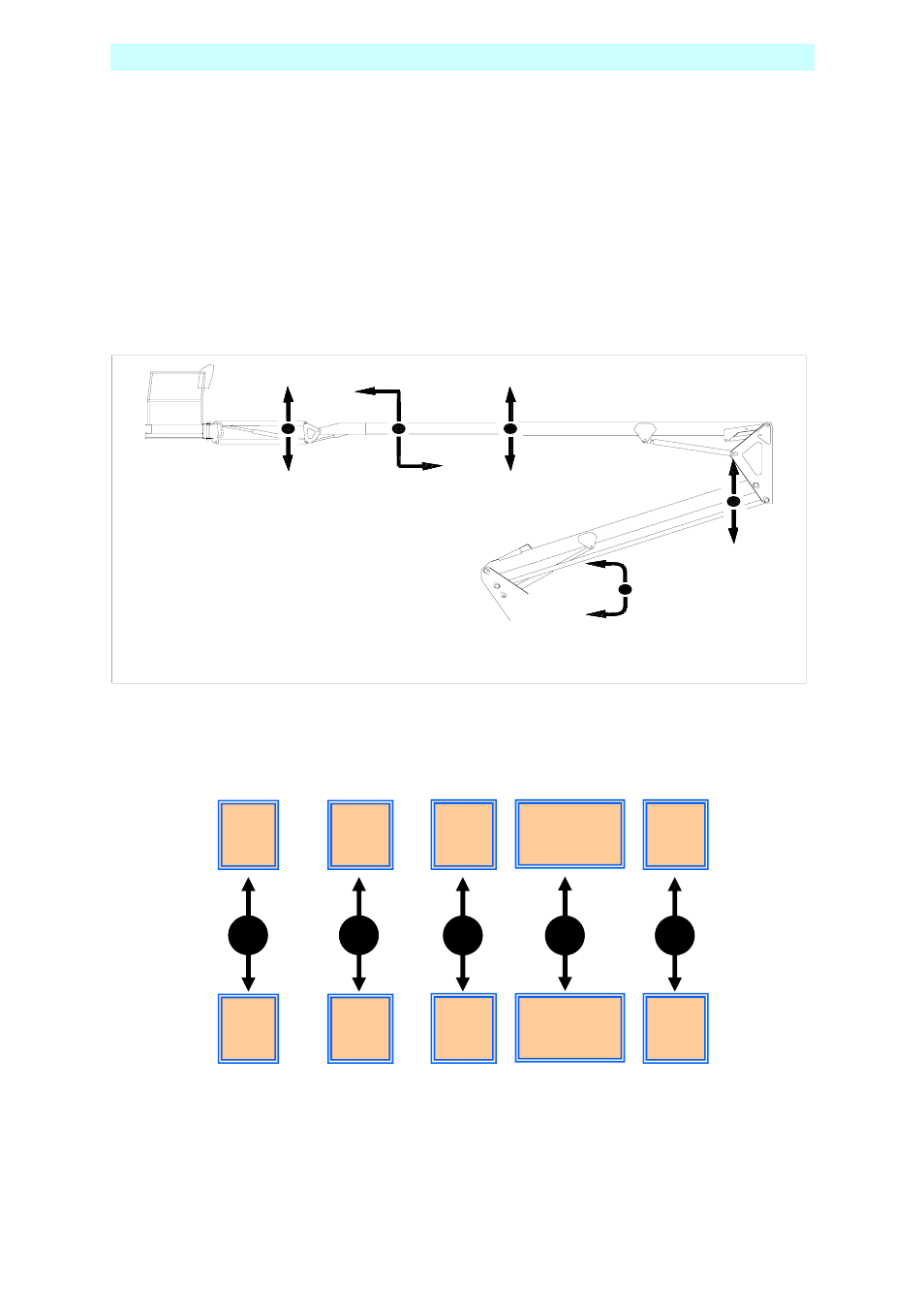

Explanation of the Ground Control Station, Directional Control Levers
SL E W IN G
18 - 0 8 8 4
B O O M 1
T E L E SC O P E
B O O M 2 B O O M 2 B O O M 3
Lower
Flick
Boom
Retract
Tele-
Boom
Lower
Tele-
Boom
Slew
Turret
Clockwise
Raise
Flick
Boom
Extend
Tele-
Boom
Raise
Tele-
Boom
Slew
Turret
Anticlockwise
Lower
Lower
Boom
Raise
Lower
Boom
EXTENDING STRUCTURE
