Battery Power, 24V DC.
Ensure batteries have been fully charged before use and that the Battery Isolating
Plug is securely connected.
Mains Power, (OPTIONAL)
Connect the mains supply, either 110V or 220/240V A.C., depending upon the
motor specification. Check the motor is running when the key is turned to the ON
position.
Petrol/diesel Power, (OPTIONAL)
Check the fuel and oil levels of the engine. Switch on the ignition using the key
switch on the slew mounted legend panel. Check the engine runs using the start
and stop buttons in the basket.
All extensions must be a minimum of 2.5mm², and no longer than
10m, due to possible voltage drop, which will damage the motor.
!
Power Pack
Hand Pump
Oil Filler and Sight Glass

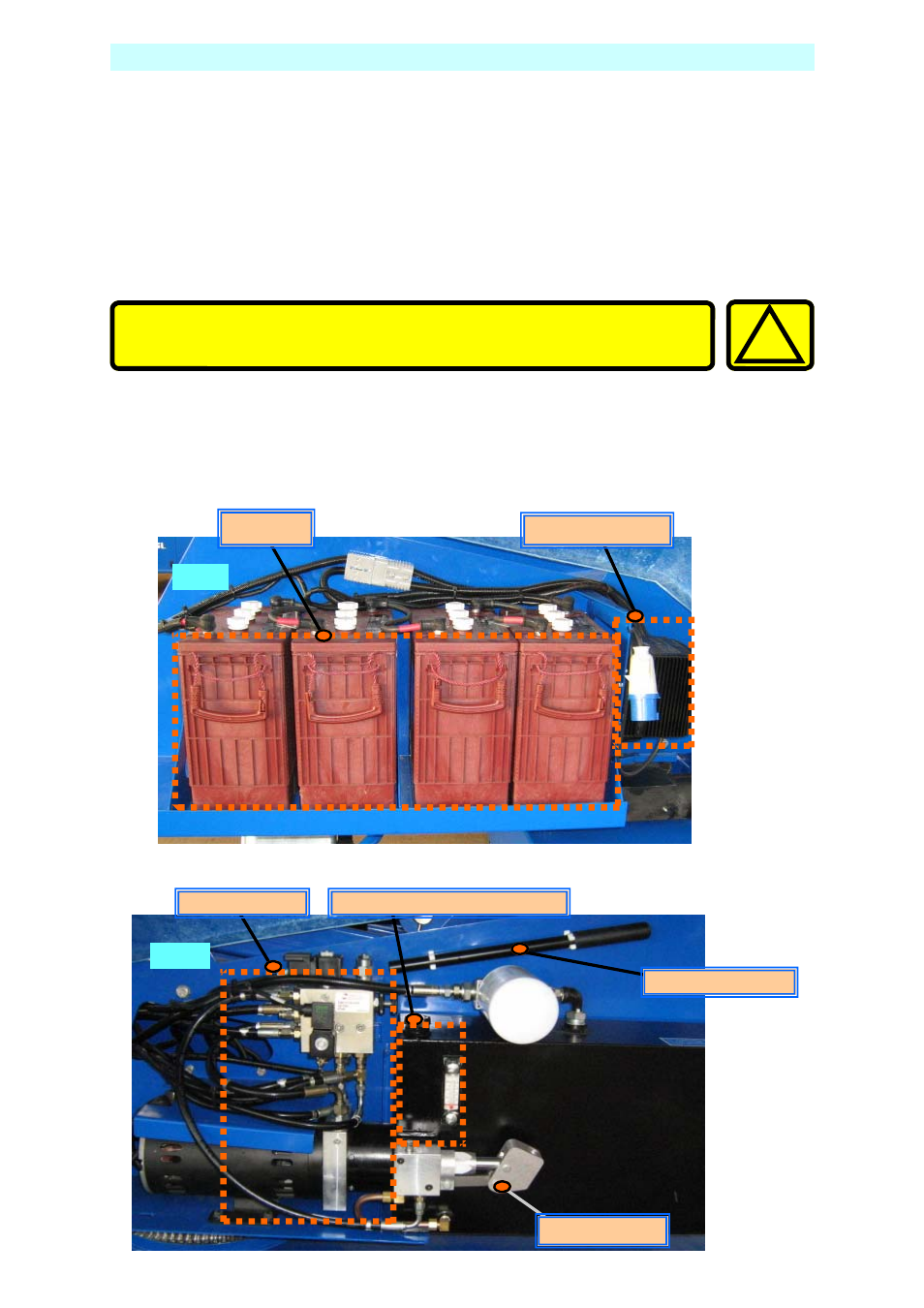

BATTERIES & POWER PACK
Fig. 1
Battery Charger Batteries
Pump Handle
Fig. 2
