30 TL49J 513868-000
MAINTENANCE

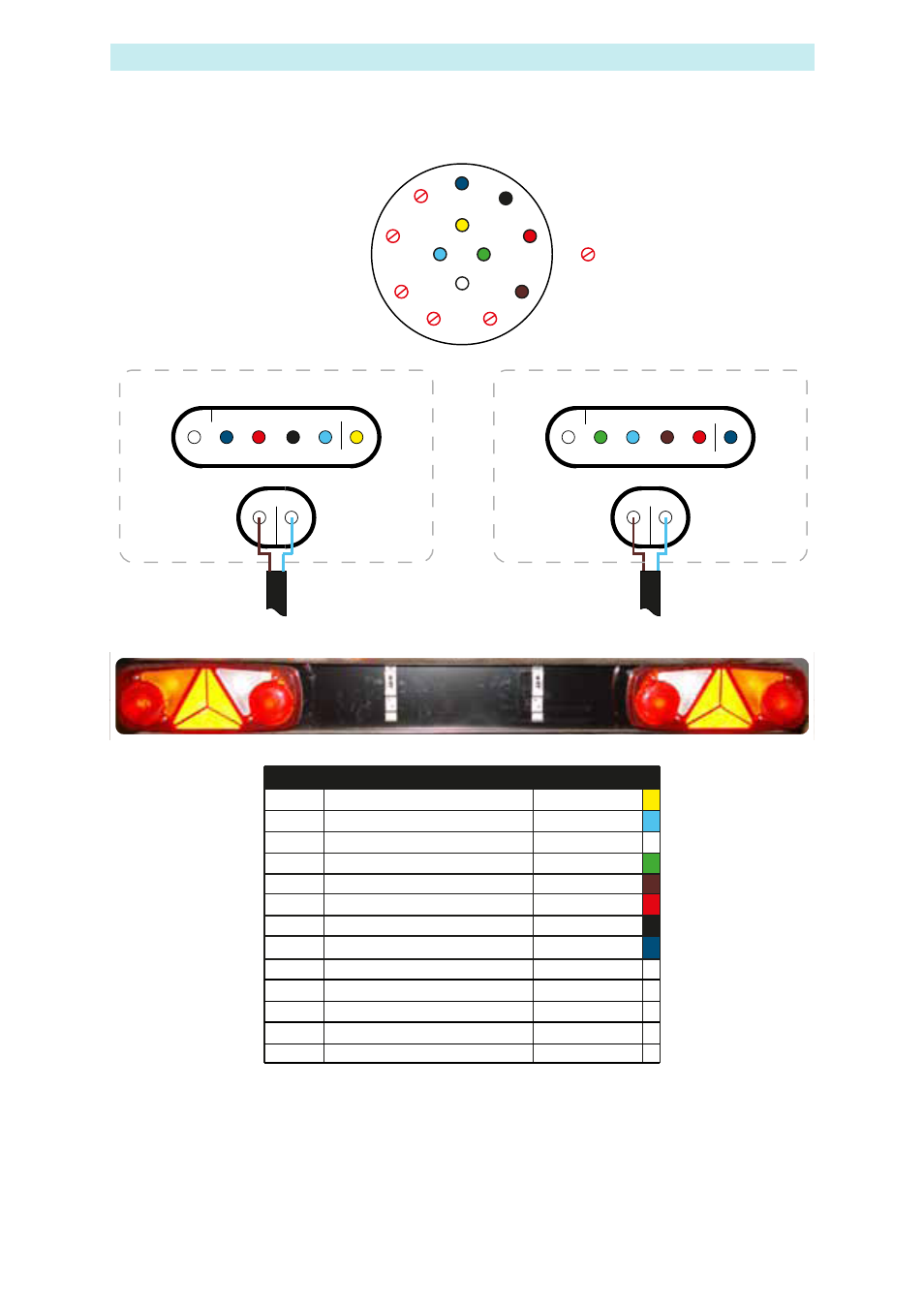

13 PIN CONNECTOR
1
2
3
4
5
6
7
8
9
10
11
12 13
= Not Used.
LEFT H/S RIGHT H/S
2
Co
re
Cable
2
Co
re
Cable
LH Registration
Lamp
RH Registration
Lamp
PIN FUNCTION COLOUR
1 LH INDICATOR YELLOW
2 FOG LAMP BLUE
3 NEGITIVE WHITE
4 RH INDICATOR GREEN
5 RH TAIL LAMP BROWN
6 BRAKE LAMP RED
7 LH TAIL LAMP BLACK
8 REVERSING LAMP DARK BLUE
9 NOT USED N/A
10 NOT USED N/A
11 NOT USED N/A
12 NOT USED N/A
13 NOT USED N/A
+ + - -
13 PIN CONNECTOR
