Snorkel TL49J-01-sn008562+ User Manual
Page 24
20
TL49J
513868-000
Cage
Rotate
Boom 3
Boom 2
Telescope
Boom 2
Boom 1
Slewing
5. A duplicate set of controls (excluding Slew Basket) is mounted on the Slew Turret under
the right hand side cover, which allows the platform to be operated from the Ground.
6. At the Ground Control Station, turn the key to ‘Ground’. (See Fig.3)

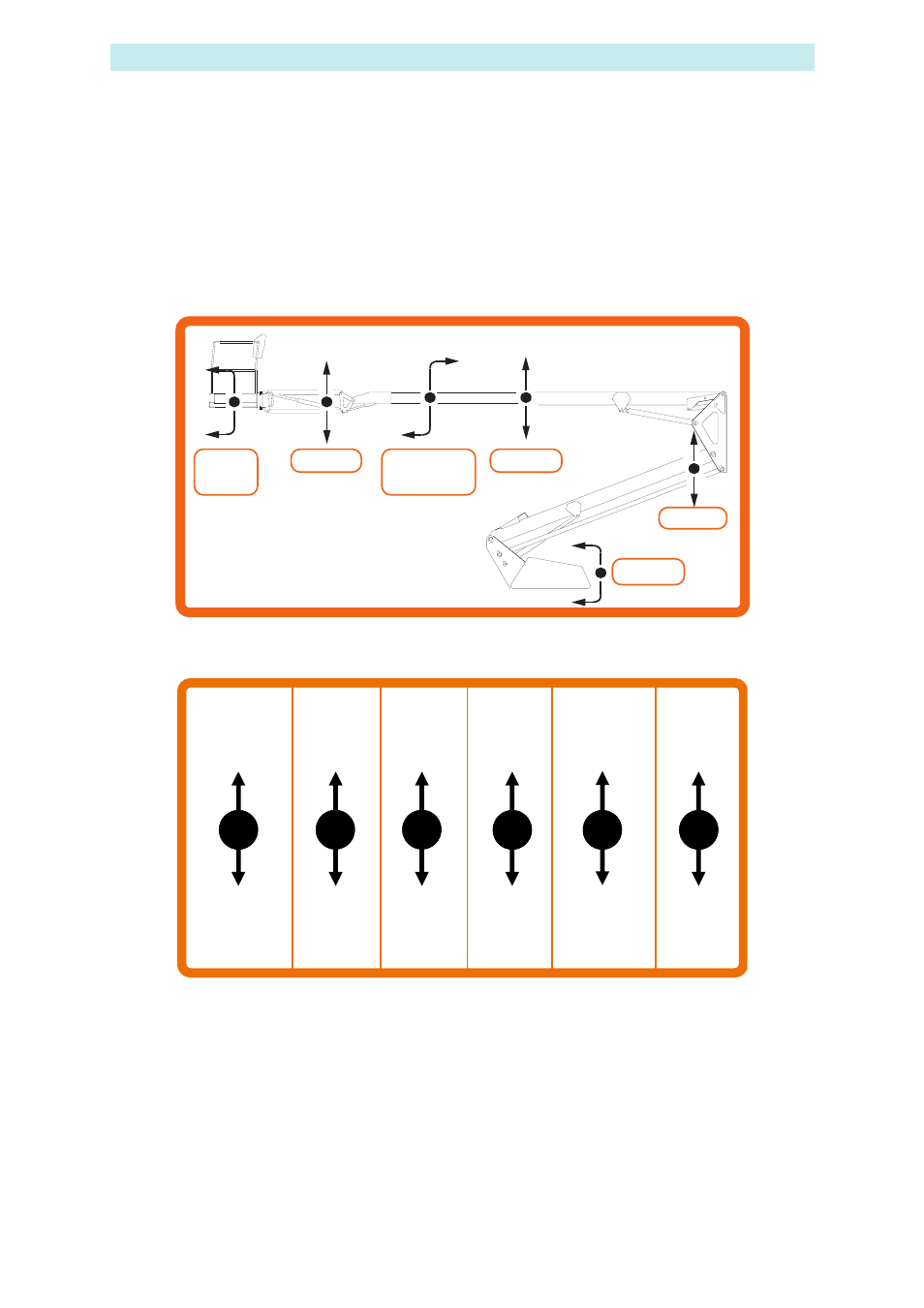

7. Explanation of the Ground Control Station, Directional Control Levers
EXTENDING STRUCTURE
Slew
Platform
Anticlockwise
Slew
Platform
clockwise
Raise
Jib
Boom
Lower
Jib
Boom
Retract
Tele-
Boom
Extend
Tele-
Boom
Raise
Tele-
Boom
Lower
Tele-
Boom
Slew
Turret
Anticlockwise
Slew
Turret
clockwise
Raise
Bottom
Boom
Lower
Bottom
Boom
