15 TL49J 513868-000
Battery Power, 24V DC.
Ensure batteries have been fully charged before use and that the Battery Isolating Plug is
securely connected.
Mains Power, (OPTIONAL)
Connect the mains supply, either 110V or 220/240V A.C., depending upon the motor
specification. Check the motor is running when the key is turned to the ON position.
All extensions must be a minimum of 2.5mm 2 , and no longer than
10m, due to possible voltage drop, which will damage the motor.
!
Petrol/diesel Power, (OPTIONAL)
Check the fuel and oil levels of the engine. Switch on the ignition using the key switch on the
slew mounted legend panel. Check the engine runs using the start and stop buttons in the
basket.

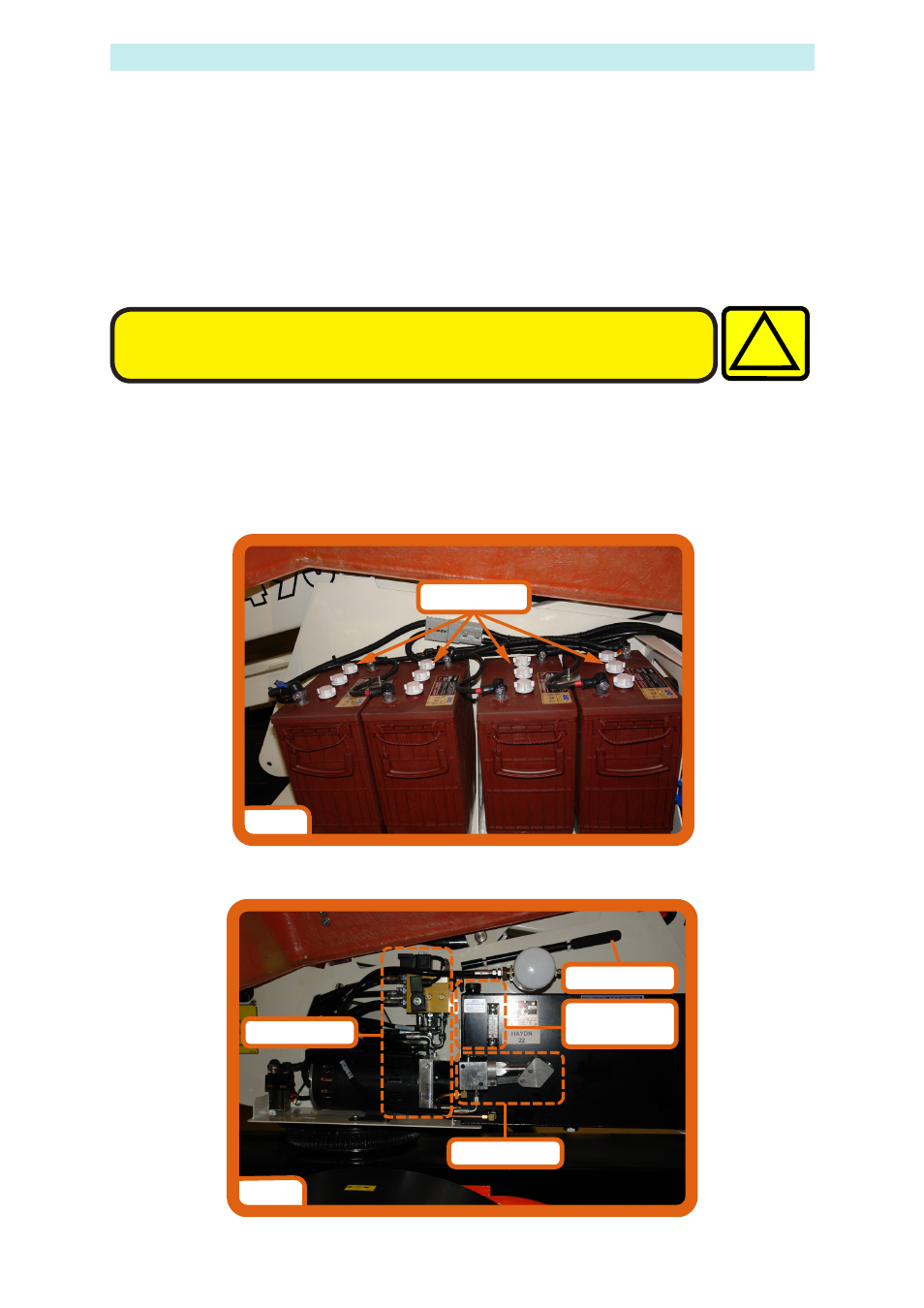

BATTERIES & POWER PACK
fig 1.
Batteries
fig 2.
Oil Filler &
Sight glass
Hand Pump
Pump Handle
Power Pack
