4. Lower the Outriggers two at a time starting at the tow bar end (No’s 3&4) until the jockey
wheel just clears the ground.

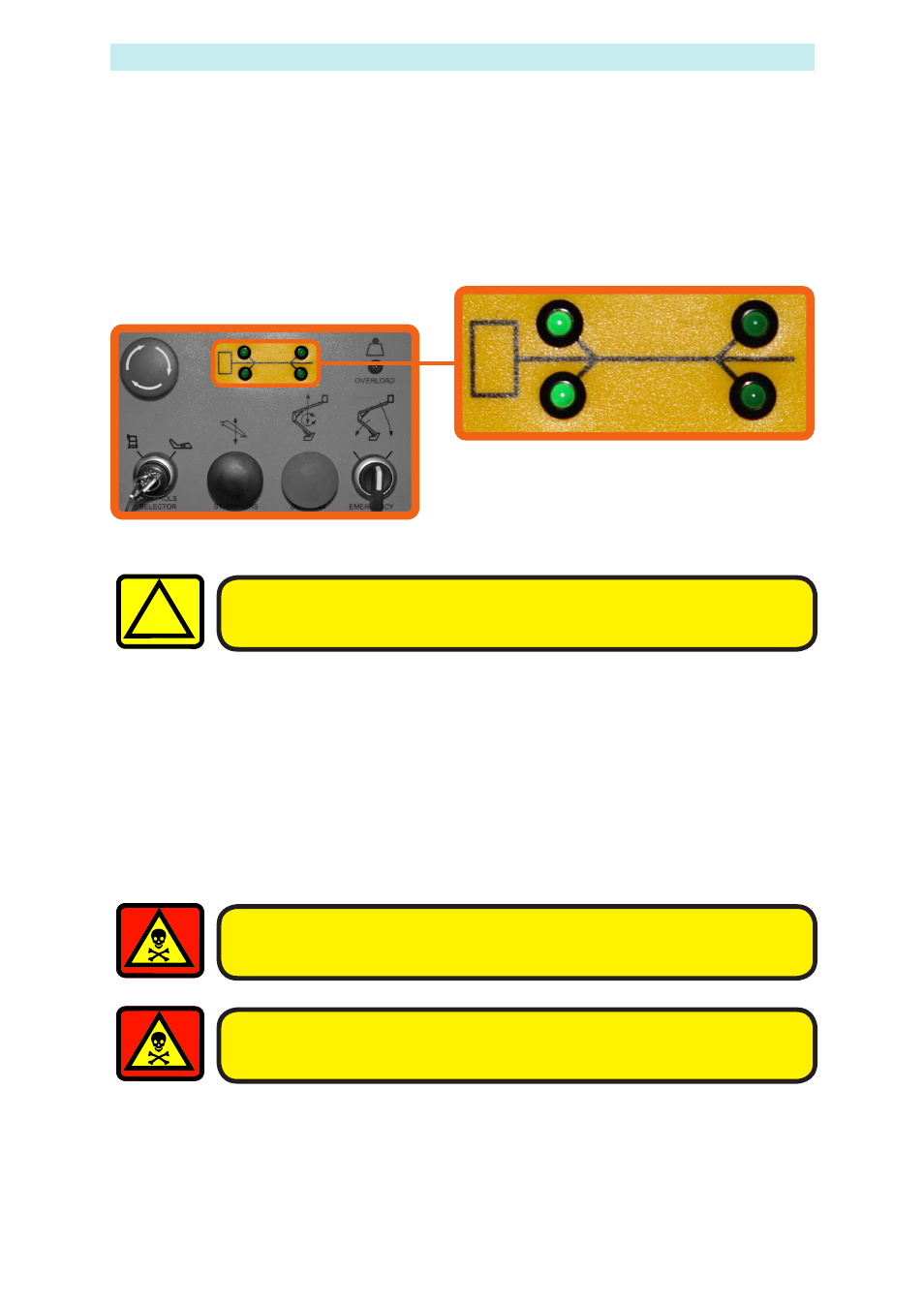

5. Lower Outriggers 1&2 until the green LED display indicates that they are under load. (As
shown below)
SETTING UP
! Take EXTREME care NOT to ground either the Basket, or the Jockey
Wheel during the next step.
6. Repeat this sequence for Outriggers 3&4.
7. By alternating from 1&2 to 3&4, carefully inch down each pair of Outriggers until all four
Outriggers are fully deployed, and the wheels are well clear of the ground.
8. Now, by using the Level indicator (Fig.5), raise opposite Outriggers until the bubble and
indicator ring are concentric (i.e., the bubble rests in the centre).
9. Check that each LED on the Ground Control panel is still illuminated. This indicates that
each foot is in firm contact with the supporting surface.
The unit is designed to operate on a supporting surface of minimum
bearing strength of 50N/cm 2 .
The maximum outrigger load is 12.5kN.
