26 TL49J 513868-000
1. Fully lower all the booms.
2. Engage the Transit Pins, and lock in place using ‘R’ clip.
3. With platform keyswitch set to ‘Ground’:
Raise the outriggers by simultaneously depressing the ‘MOTOR RUN Outrigger’ button
and using the appropriate control levers, two at a time, alternating between the cage and
tow bar end until the road wheels are in contact with the ground.
Only when the road wheels are in contact with the ground should the unit be lowered
further until the jockey wheel makes contact with the supporting surface.
Now fully raise the outriggers until they are in the stowed position.
Switch off the platform and ensure all loose items/covers are secure before towing the
unit.
The machine is now ready for transportation.

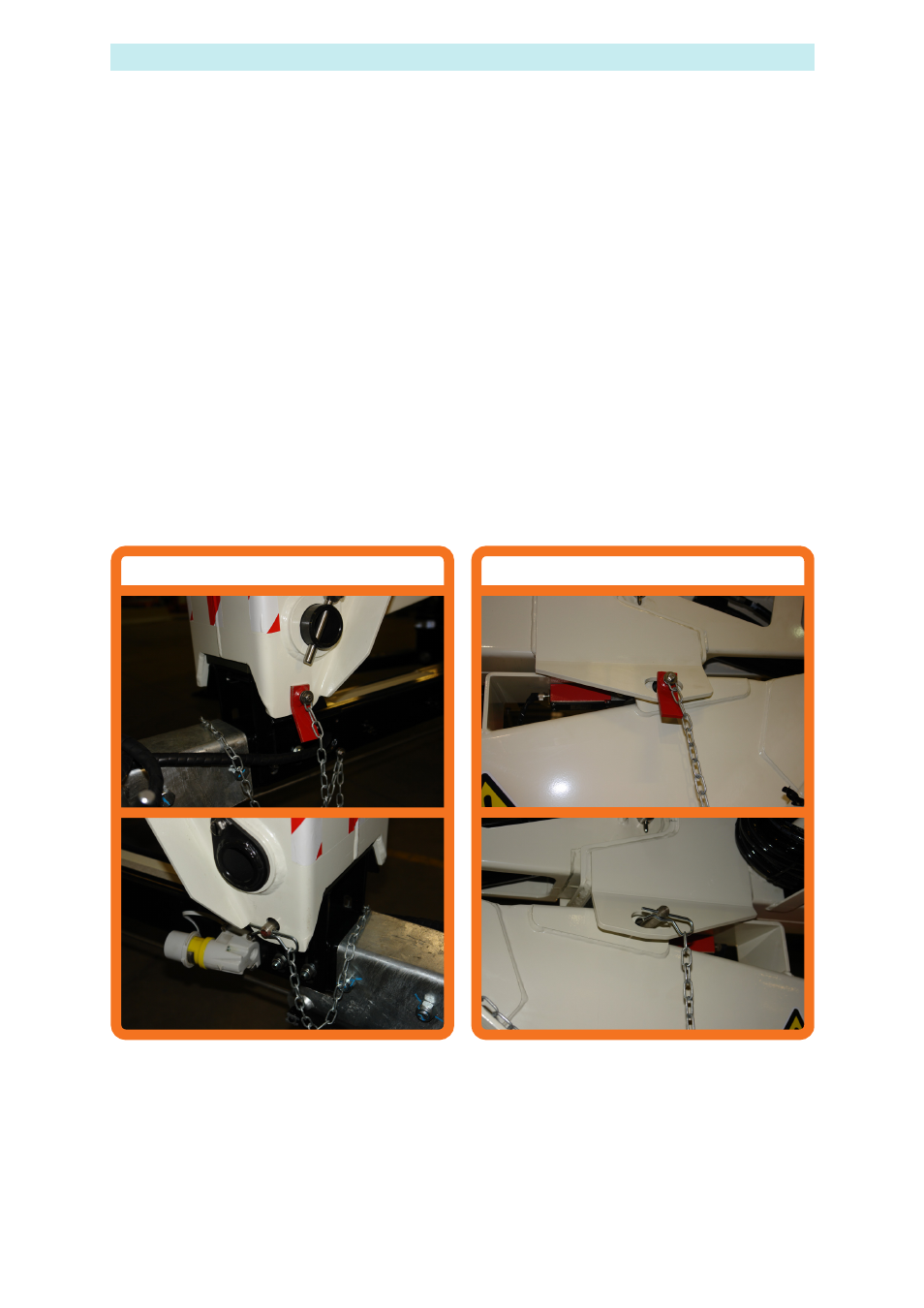

TRANSPORT PIN LOCATIONS – SHOWN READY FOR TRANSPORT
STOWING THE MACHINE
Lower Boom Upper Boom
