16 TL49J 513868-000
1. Park the unit in an appropriate location at the workplace.
Do not attempt to set up the machine on steep slopes, ramps or soft
ground.
2. Apply the handbrake on the trailer and remove from the towing vehicle.

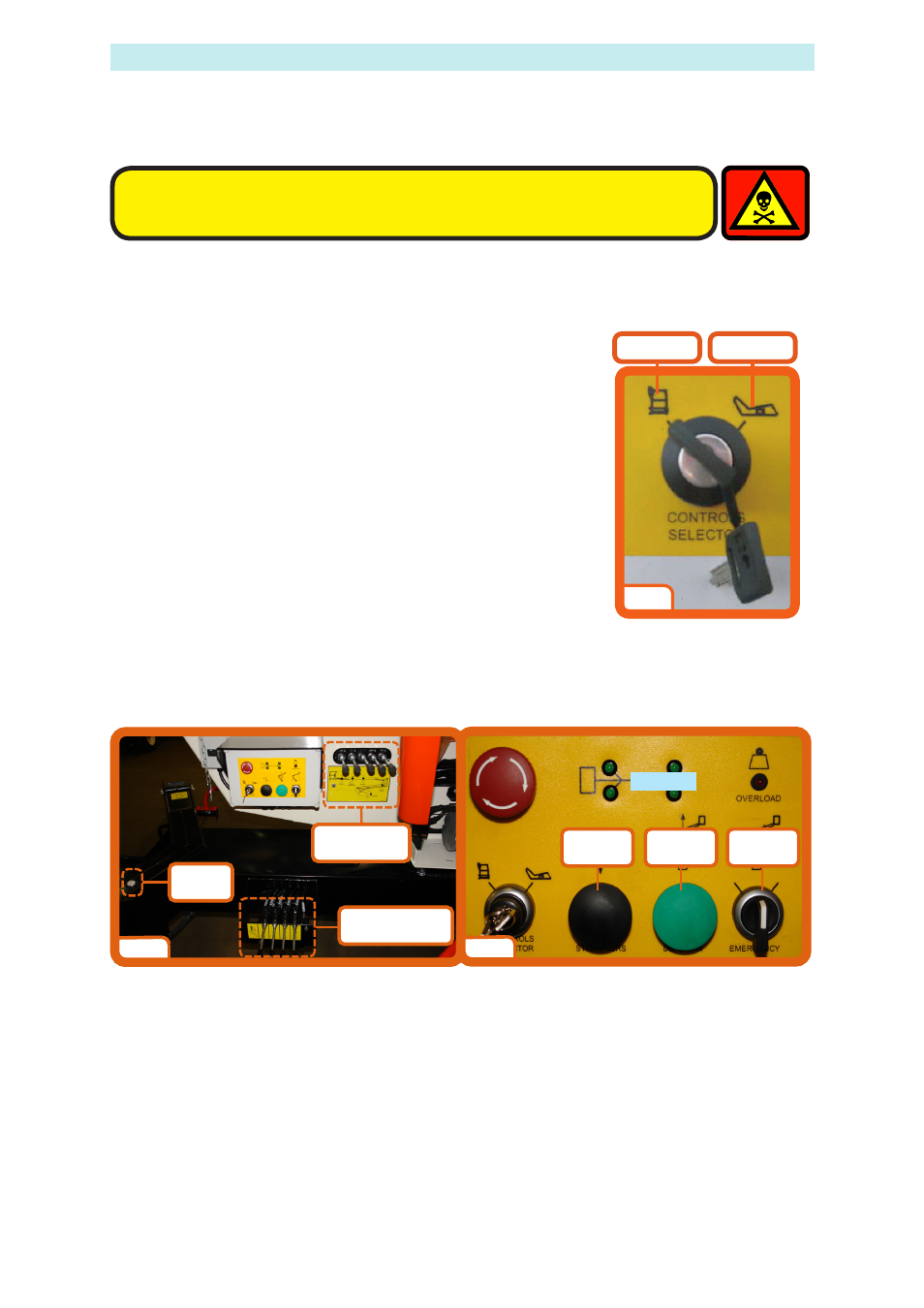

3. With platform key switch set to ’Ground’ (Fig 3)
lower the outriggers by keeping the ‘Outrigger Motor Run’
button (Fig 4) pushed in, operate the appropriate ‘Outrigger
control lever’ (Fig 5), until all four are 25mm to 50mm
from the ground.
SETTING UP
fig 3.
Ground Platform
fig 5.
Ground control
Levers.
Outrigger control
Levers.
Level
Indicator
fig 4.
Motor Run
(outrigger)
Motor Run
(Booms)
Emergency
Lower
Fig. 4
