13 TL49J 513868-000

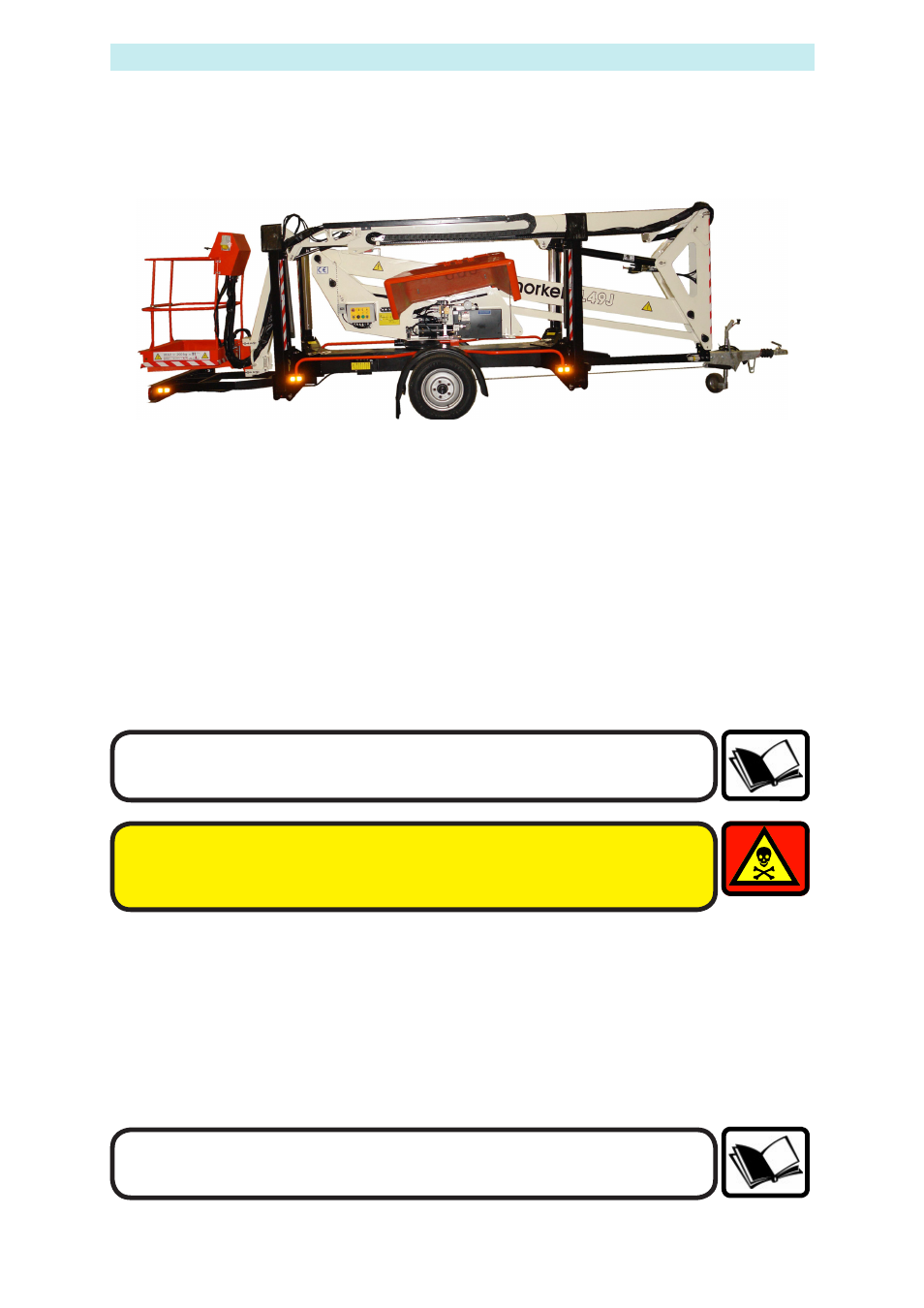

The following Pre-Start Checks should be carried out before taking the machine to the
place of work.
1. Damaged or Loose Fittings.
Visually Inspect the machine for signs of wear and tear, damage, loose or missing parts.
2. Wheels. (For towing only)
Check tyres are at the correct pressure, TL49J = 76psi (5.25 bar).
3. Hydraulic fluid.
The hydraulic oil tank is located underneath the slew cover on the right hand side of the
machine (looking from the cage end), Ref, Fig.2, section J With the booms and outriggers
in the transport position, the hydraulic oil level should be visible between the upper and
lower marks of the Sight Glass.
Top up with ISO Grade 22 hydraulic oil if necessary.
Do Not Overfill the Tank
Serious injury or even death may result by not carrying out the
following checks of the interlock system before the platform is
used!
4. Safety Switches.
Visually check the cage overload switch is free from damage.
Check all limit switch arms are free from damage and move easily (outrigger switches
shown in Fig.6 ).
With outriggers in transport position, it must not be possible to operate the extending
structure. With outriggers deployed, under load and top or bottom boom raised
approximately 50mm, it must not be possible to operate the outrigger controls.
The flick boom is not interlocked with the outriggers.
PRE-START CHECKS
