12 TL49J 513868-000

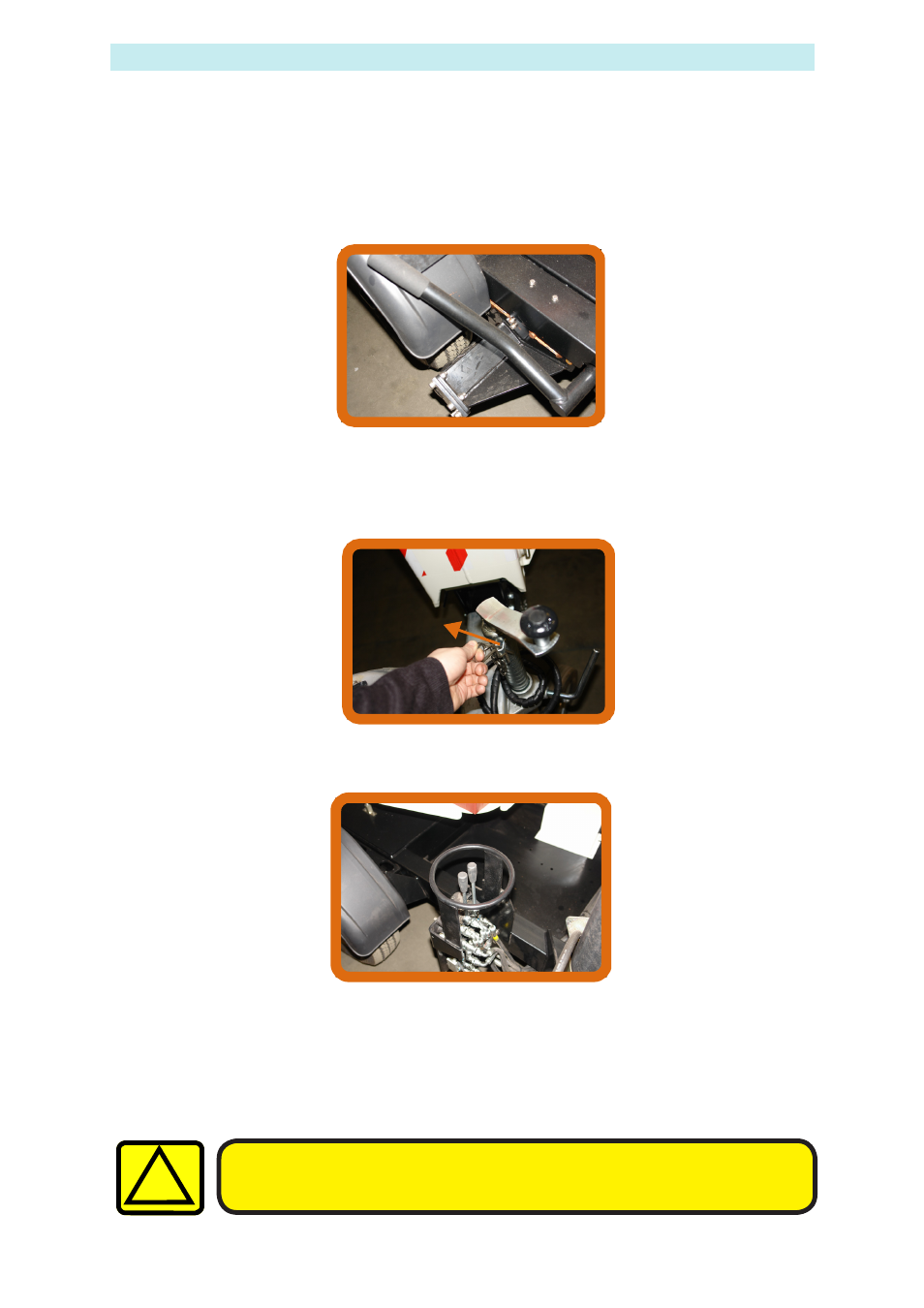

1. Ensure that the booms are fully lowered, all outriggers are fully raised and the machine
is in a menoeverable condition.
2. Engage the the friction drive cylinders against the trailer tyres by pulling actuating levers
forward and down until they lock overcentre.
3. Ensure the power selector switch is set to Base.
4. Disengage the handbrake, and ensure that the Jockey wheel directional locking pin is
removed
5. Traction is controlled via the 2 hydraulic levers on the R/H side of the chassis.
6. The left lever controls the left motor and the right lever the right.
Operating only the left lever forward will turn the machine right and the right lever will turn
the machine left, operate both levers together for parallel drive.
7. When the machine is in position replace handbrake.
! Ensure friction drive cylinders are disengaged prior to
platform operation or towing.
HAND MANOEUVERING (Optional)
