Proceed as follows:- (Refer to the valve block drawing Figure 6.)
1. Fully lower the jib boom and the mast sections. Rotate the mast into the stowed
position.
2. Turn the Upper Control Box to the OFF position and remove the key.
3. Remove the rear GRP cover from the chassis and locate the hydraulic control valve
block.
4. The hand valve marked ‘A’ should be turned fully clockwise to close. The hand valve
marked ‘B’ should be turned fully anti-clockwise to open.
5. Operate the red handpump a number of times to develop sufficient pressure to
‘separate’ the internal brake disks. These brakes are integral with the hydraulic drive
motors.
NOTE: The machine can now be safely towed or winched.
6. On completion of towing/winching, reverse the position of the rotary hand valves ‘A’
and ‘B’. The handpump becomes inoperative when the valves are returned to their
normal position.

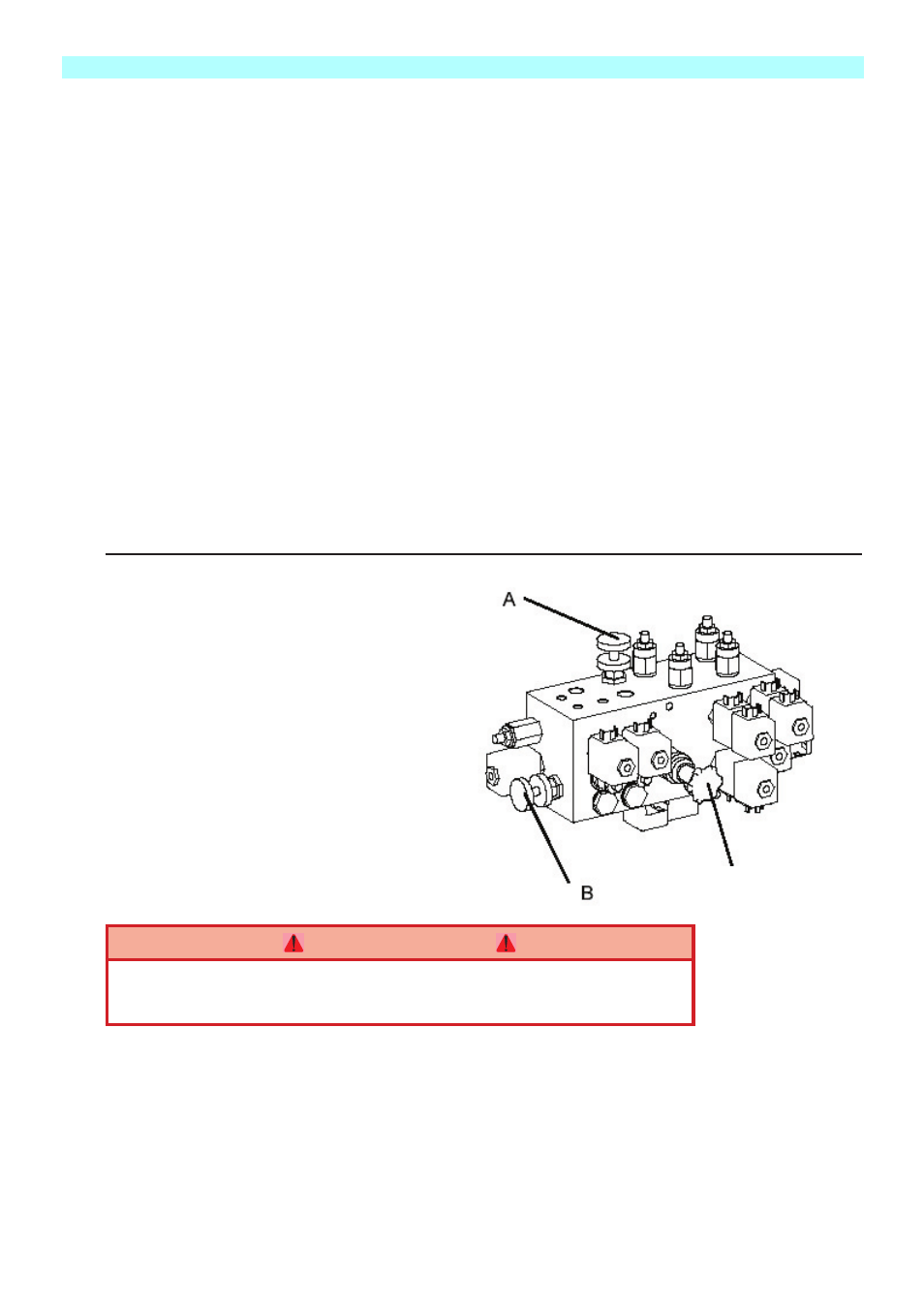

Figure 6: Valve Block-Towing Valves
W A R N I N G
RISK OF SERIOUS INJURY. Releasing the brakes will cause the ma-
chine to move uncontrollably on a slope. Damaging momentum can be
developed due to the large mass of a slow moving machine
2.6 AFTER USE & STORAGE
AFTER USE EACH DAY
1. Ensure that the platform (masts and jib) are fully lowered.
2. Park the machine on firm and level ground, never on a grass surface.
3. Turn the key switch to the OFF position and remove.
4. Put the batteries on charge.
Handpump
