2. Operation & Specifications
2-7
W A R N I N G
DO NOT operate the machine from the upper controls until the
platform entrance drop-bar is in the fully lowered position and
your safety harness has been fitted and attached.
UPPER CONTROL PANEL

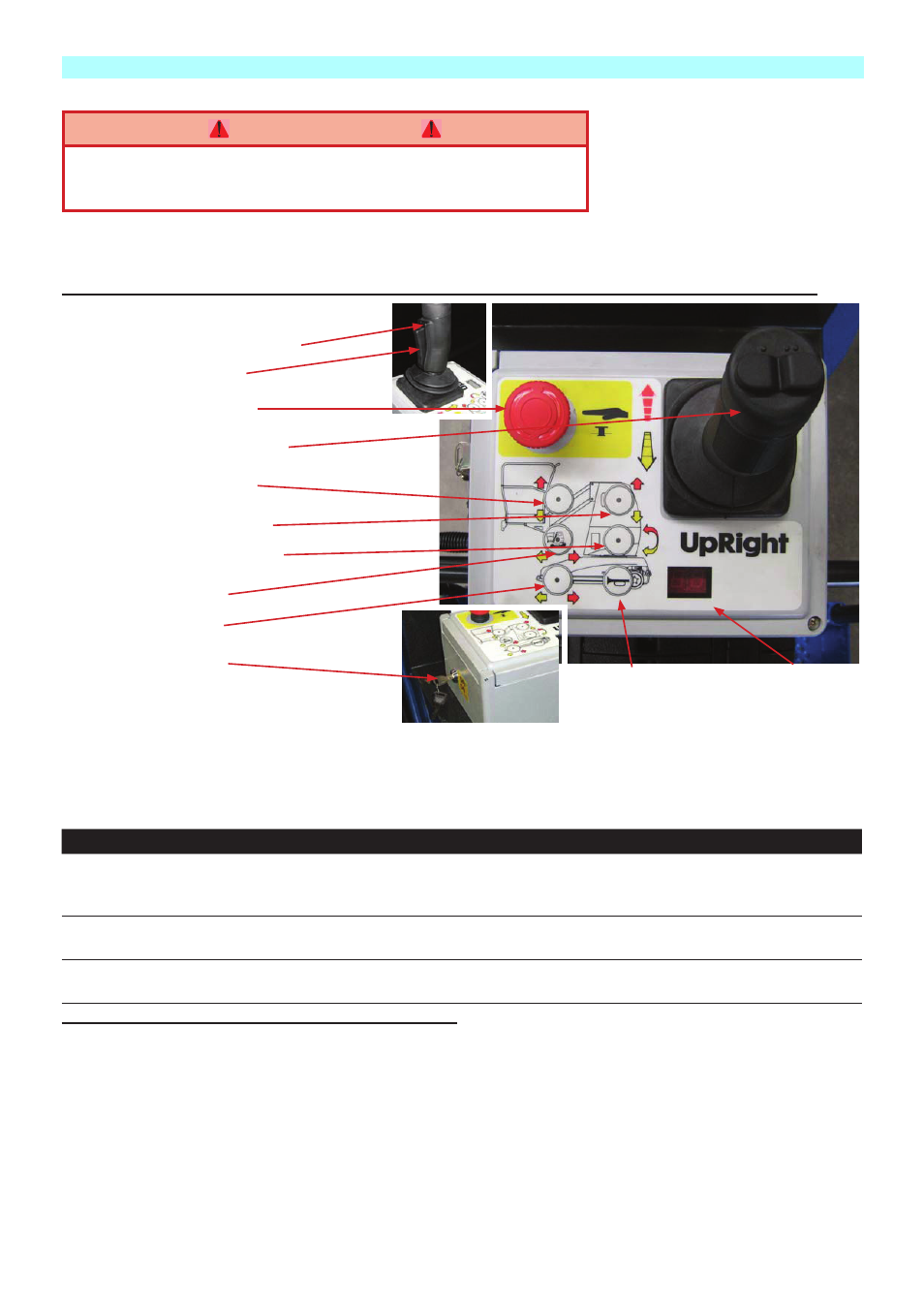

Figure 3: Upper Control Panel
CONTROL FUNCTIONS
ITEMS NAMES FUNCTION
1 Joystick Refer to the decal logic diagrams for correct direction of motion.
e.g. If Drive is preselected - pushing forward moves machine
forward.
2 Deadman Grip The ‘Deadman’ grip switch on the joystick must be grasped for any
function to operate.
3 Emergency Stop Push this red button at any time to isolate power.
Turn clockwise to reset.
Table 1: Platform Controls and Indicators
11. Horn
Display
12. Multi-Function
1.Joystick (forward/back)
2.Deadman Grip
3.Emergency Stop
4.Steering Switch (L/R)
5.Jib Select Button
6.Mast Select Button
7.Rotate Select Button
8.Drive (Slow)
9.Drive (Fast)
10.Key Switch
